FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

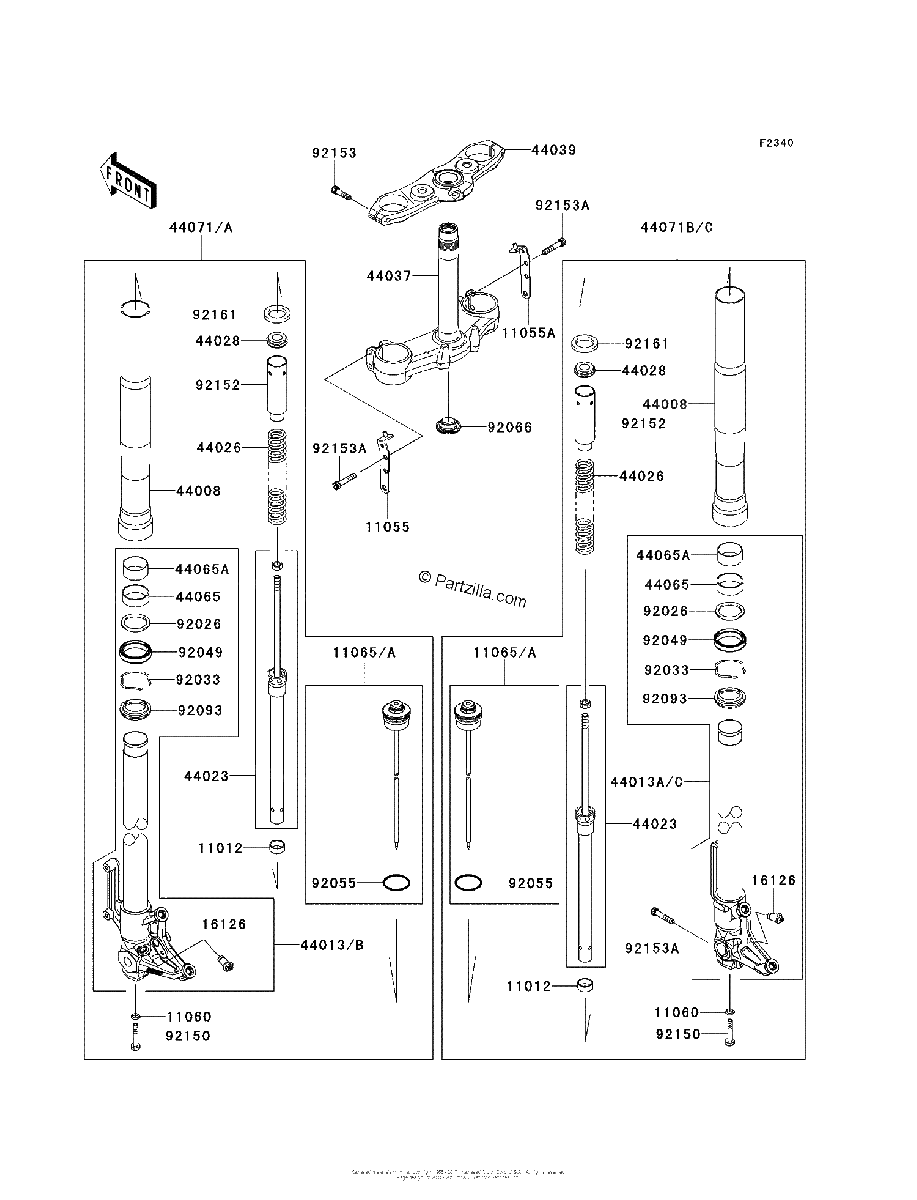

Diagrama de FRONT FORK

Repuestos

#11012
11012-1761
CAP
$38.97¢19 487
1
#11055
11055-1831
BRACKET,Left Hand
$16.66¢8 332
1
#11055A
11055-1832
BRACKET,RH
$16.66¢8 332
1
#11060
11060-1180
GASKET,FORK CYLINDER BOLT
$3.51¢1 754
1
#11065
11065-0329-499
CAP,FORK BOLT COMP,A BLACK
$140.21¢70 104
1
#11065
11065-0329-17F
CAP,FORK BOLT COMP,C ORANGE
No Disponible
1
#16126
16126-0031
VALVE,FORK
$210.17¢105 087
1
#44008
44008-0048-499
PIPE FORK OUTER,A BLACK
$580.03¢290 013
1
#44013
44013-0179-18R
PIPE FORK INNER,Left Hand,F S BLACK
$584.20¢292 100
1
#44013
44013-0137-18R
PIPE FORK INNER,Left Hand,F S BLACK
$584.20¢292 100
1
#44013A
44013-0138-18R
PIPE FORK INNER,Right Hand,F S BLACK
No Disponible
1
#44013B
44013-0179-18R
PIPE FORK INNER,Left Hand,F S BLACK
$584.20¢292 100
1
#44013A
44013-0180-18R
PIPE FORK INNER,Right Hand,F S BLACK
$584.20¢292 100
1
#44013C
44013-0180-18R
PIPE FORK INNER,Right Hand,F S BLACK
$584.20¢292 100
1
#44023
44023-0080
CYLINDER-SET-FORK
$545.28¢272 642
1
#44026
44026-0144
SPRING FRONT FORK
$105.78¢52 889
1
#44028
44028-1083
GUIDE-FORK SPRING
$9.76¢4 882
1
#44037
44037-0107-18R
HOLDER FORK UNDER,F S BLACK
$702.71¢351 354
1
#44039
44039-0096-18R
HOLDER FORK UPPER,F S BLACK
$393.50¢196 748
1
#44065
44065-0030
BUSHING FRONT FORK,GUIDE
$19.95¢9 976
1
#44065A
44065-0036
BUSHING FRONT FORK
$20.19¢10 097
1
#44071B
44071-0759-48B
DAMPER Assembly,FORK,Right Hand,Black+ORG
No Disponible
1
#44071A
44071-0758-48B
DAMPER Assembly,FORK,Left Hand,Black+ORG
No Disponible
1
#44071B
44071-0759-30R
DAMPER Assembly,FORK,Right Hand,BLACK
$1202.31¢601 157
1
#44071C
44071-0759-48B
DAMPER Assembly,FORK,Right Hand,Black+ORG
No Disponible
1
#44071
44071-0758-48B
DAMPER Assembly,FORK,Left Hand,Black+ORG
No Disponible
1
#44071
44071-0758-30R
DAMPER Assembly,FORK,Left Hand,BLACK
$1202.31¢601 157
1
#92026
92026-1276
SPACER,FORK OUTER
$8.68¢4 341
1
#92033
92033-1222
RING-SNAP
$5.85¢2 927
1
#92049
92049-0125
SEAL-OIL
$25.62¢12 811
1
#92055
92055-0142
RING O
$3.58¢1 788
1
#92066
92066-0032
PLUG
$12.05¢6 026
1
#92093
92093-0035
SEAL,DUST
$24.84¢12 420
1
#92150
92150-1514
BOLT,FORK CYLINDER
$6.26¢3 128
1
#92152
92152-0263
COLLAR
$15.50¢7 751
1
#92153A
92153-0533
BOLT
$9.90¢4 951
1
#92153
92153-0500
BOLT,SOCKET,8X30
$11.25¢5 623
1
#92161
92161-0418
DAMPER
$8.14¢4 071
1
