REAR BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

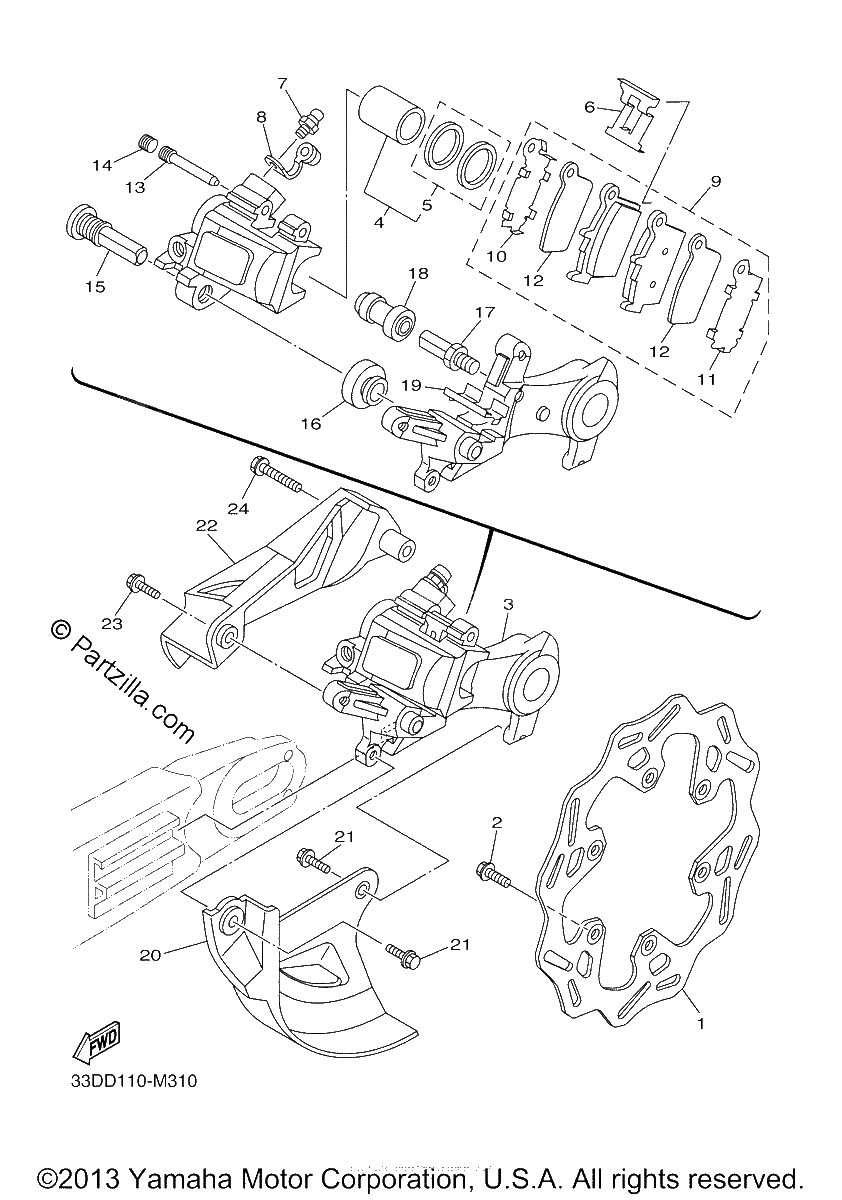

Diagrama de REAR BRAKE CALIPER

Repuestos

#1
2S2-2582W-70-00
DISC, REAR BRAKE 2
$205.63¢102 813
1
#2
90105-06157-00
BOLT, FLANGE (replaces 90105-06156-00)
$7.24¢3 619
1
#3
17D-2580W-01-00
CALIPER ASSY, REAR 2
$433.98¢216 988
1
#4
5UN-W0057-50-00
PISTON ASSY, CALIPER
$64.08¢32 038
1
#5
5UN-W0047-50-00
Caliper Seal Kit
$17.01¢8 506
1
#6
5DH-25919-50-00
SUPPORT,PAD
$21.13¢10 563
1
#7
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#8
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#9
1C3-W0046-50-00
BRAKE PAD KIT 2
$52.95¢26 475
1
#10
5UN-25828-60-00
SHIM, CALIPER
$12.24¢6 119
1
#11
5UN-25827-60-00
SHIM, CALIPER
$15.34¢7 669
1
#12
5UN-22898-60-00
INSULATOR, HEAT
$19.82¢9 913
1
#13
8CR-25924-00-00
PIN, PAD
$13.43¢6 713
1
#14
5DH-25916-00-00
PLUG
$8.85¢4 425
1
#15
5DH-25914-50-00
PIN, SLIDE
$22.44¢11 219
1
#16
3JD-25917-00-00
BOOT, CALIPER
$8.97¢4 488
1
#17
5UN-25914-00-00
PIN, SLIDE
$13.04¢6 519
1
#18
1UY-25937-51-00
BOOT 2
$14.65¢7 325
1
#19
5UN-25913-00-00
Retainer
$13.32¢6 663
1
#20
17D-25718-50-00
PROTECTOR, DISK BRAKE
$28.54¢14 269
1
#21
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#22
17D-27491-50-00
Protector
$23.10¢11 550
1
#23
90105-06107-00
BOLT, FLANGE
$7.34¢3 669
1
#24
90105-06111-00
Bolt, Flange
$7.34¢3 669
1
