CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

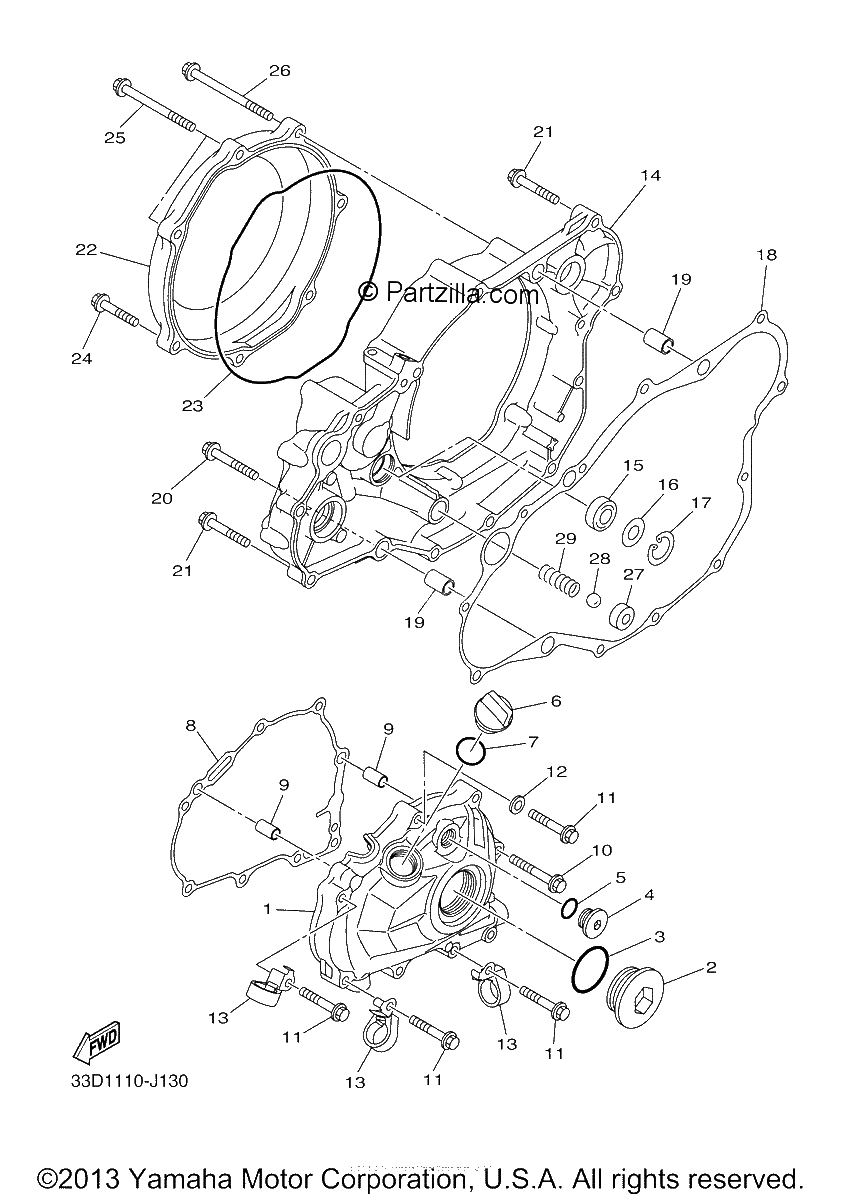

Diagrama de CRANKCASE COVER 1

Repuestos

#1
33D-15411-00-00
COVER, CRANKCASE 1
$247.73¢123 863
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$15.94¢7 969
1
#3
93210-357A3-00
O-RING
$0.59¢294
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$23.49¢11 744
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#7
93210-19123-00
O-Ring
$8.24¢4 119
1
#8
33D-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN BOTTOM END KIT
$17.01¢8 506
1
#9
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#10
95022-06040-00
Bolt, Flange
$3.57¢1 787
1
#11
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#12
90430-06014-00
GASKET
$8.25¢4 125
1
#13
2S2-15378-00-00
HOLDER
$12.35¢6 175
1
#14
33D-15431-00-00
COVER, CRANKCASE 3
$289.75¢144 875
1
#15
93101-14164-00
OIL SEAL
$11.55¢5 775
1
#16
90201-15701-00
WASHER, PLATE (T=1.0)
$7.34¢3 669
1
#17
99009-22500-00
CIRCLIP
$7.35¢3 675
1
#18
33D-15462-00-00
GASKET, CRANKCASE COVER 3 | INCL. IN BOTTOM END KIT
$27.74¢13 869
1
#19
91812-16001-00
PIN, DOWEL
$6.15¢3 075
1
#20
95022-06040-00
Bolt, Flange
$3.57¢1 787
1
#21
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#22
33D-15415-10-00
COVER, 1
$359.52¢179 763
1
#23
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$29.36¢14 681
1
#24
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#25
95022-06070-00
BOLT, FLANGE
$2.40¢1 200
1
#26
95022-06080-00
BOLT, FLANGE (replaces 9502L-06080-00)
$4.20¢2 100
1
#27
583-13113-00-00
SEAT, CHECK BALL
$24.57¢12 288
1
#28
93503-08007-00
BALL
$2.88¢1 438
1
#29
90501-043E0-00
SPRING, COMPRESSION
$4.34¢2 169
1
