EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

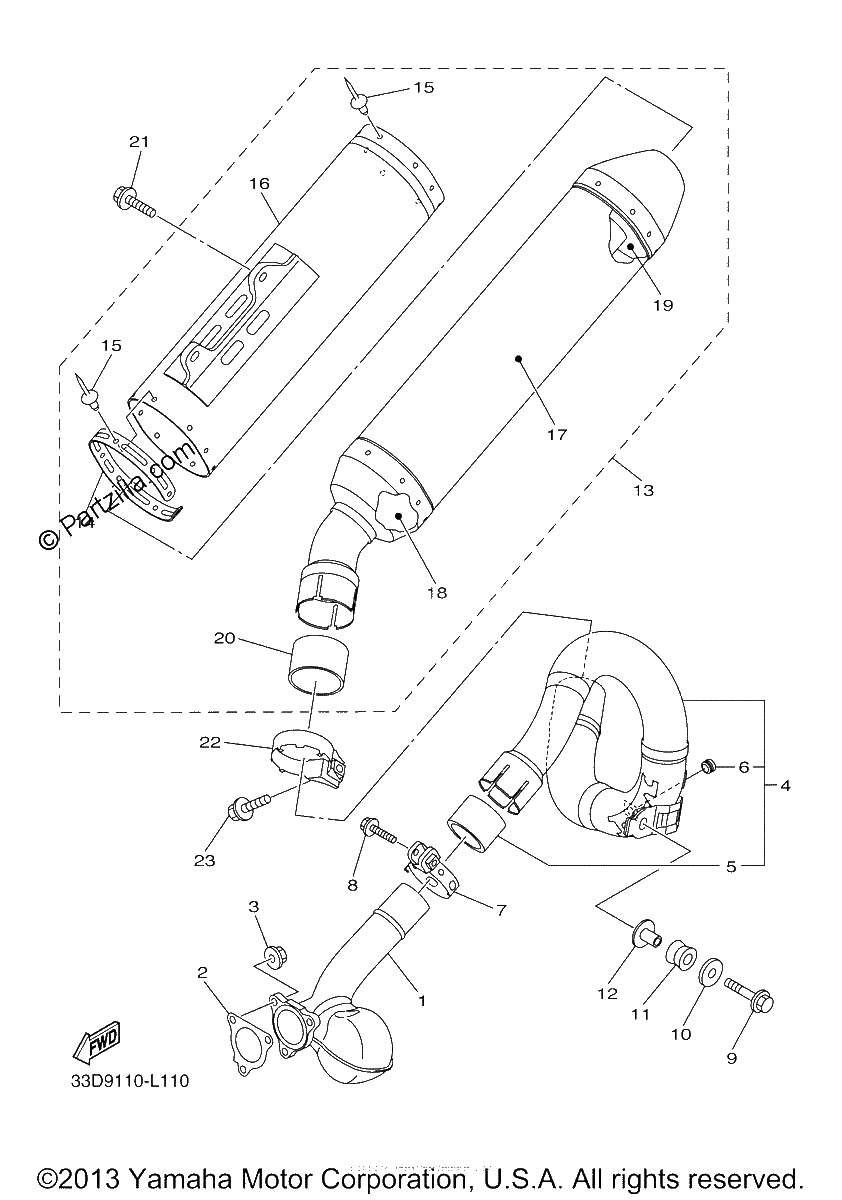

Diagrama de EXHAUST

Repuestos

#1
33D-14611-00-00
PIPE, EXHAUST 1
$368.81¢184 406
1
#2
33D-14613-00-00
GASKET, EXHAUST PIPE
$7.49¢3 744
1
#3
95780-06500-00
NUT, FLANGE
$2.35¢1 175
1
#4
33D-14620-00-00
EXHAUST PIPE ASSY 2
$676.24¢338 119
1
#5
5PH-14714-00-00
GASKET, MUFFLER
$45.39¢22 694
1
#6
2D1-14737-00-00
DAMPER, MUFFLER
$6.06¢3 031
1
#7
33D-14788-00-00
BAND, SILENCER
$39.04¢19 519
1
#8
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#9
90105-08137-00
BOLT, FLANGE
$4.21¢2 106
1
#10
90201-08061-00
WASHER, PLATE
$7.41¢3 706
1
#11
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#12
90387-08081-00
COLLAR
$8.85¢4 425
1
#13
33D-14750-10-00
SILENCER ASSY
$1079.99¢539 994
1
#14
33D-1476F-10-00
REINF. ,3
$42.75¢21 375
1
#15
90267-48084-00
RIVET, BLIND
$2.81¢1 406
1
#16
33D-1466G-10-00
BODY, SILENCER
$355.96¢177 981
1
#17
2S2-1469A-10-00
FIBER
$311.99¢155 994
1
#18
2S2-1469E-00-00
FIBER
$6.14¢3 069
1
#19
2S2-1469F-00-00
FIBER
$11.19¢5 594
1
#20
8GL-14714-00-00
GASKET, MUFFLER
$39.60¢19 800
1
#21
90119-08133-00
BOLT, WITH WASHER
$4.54¢2 269
1
#22
8GL-14789-00-00
BAND, SILENCER
$30.51¢15 256
1
#23
95024-08025-00
BOLT, FLANGE (SMALL HEAD)
$7.94¢3 969
1
