FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

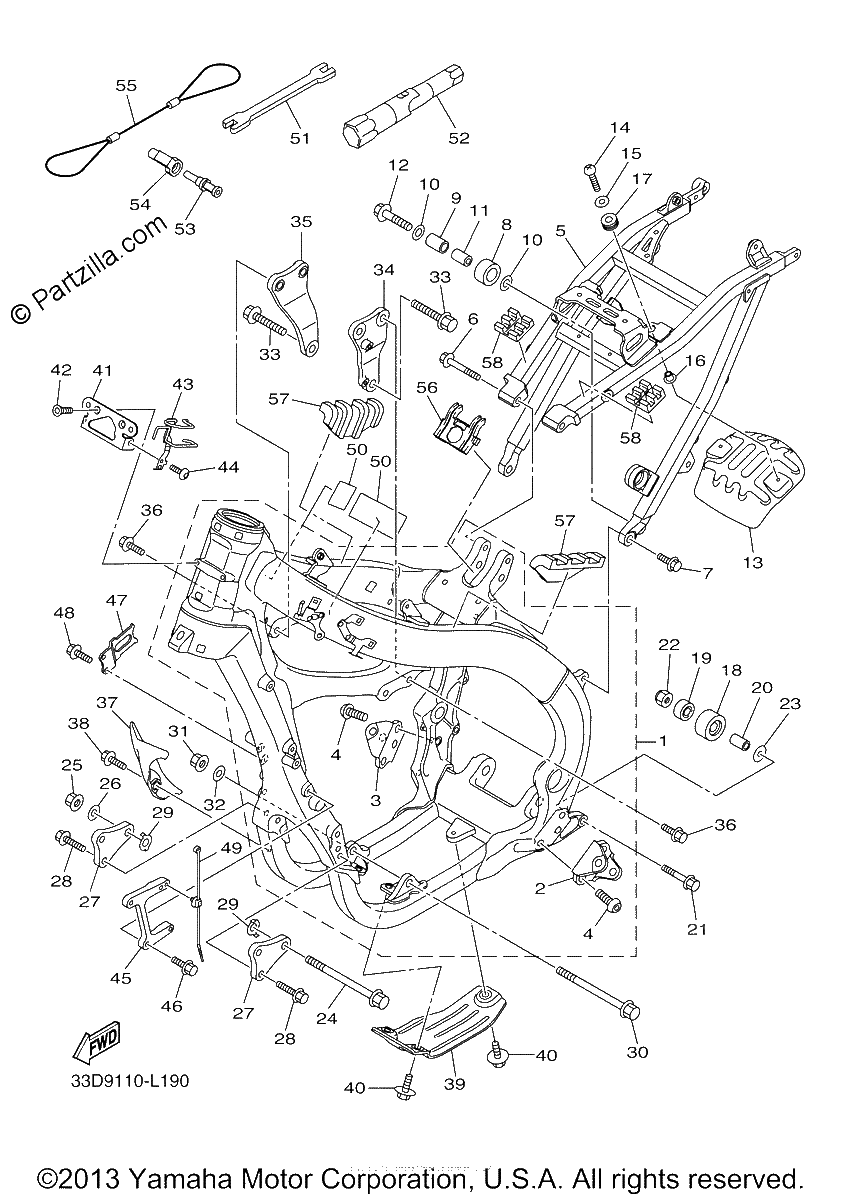

Diagrama de FRAME

Repuestos

#1
33D-21101-90-00
FRONT FRAME COMP.
$5500.44¢2 750 219
1
#2
17D-21447-00-00
BRACKET, FOOTREST
$38.87¢19 435
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$36.54¢18 268
1
#4
90149-10033-00
SCREW
$5.97¢2 984
1
#5
33D-21190-00-00
REAR FRAME COMP.
$818.79¢409 394
1
#6
90105-08231-00
BOLT, FLANGE
$3.68¢1 840
1
#7
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#8
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#9
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#10
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#11
90387-08041-00
COLLAR
$7.38¢3 691
1
#12
95024-08040-00
Bolt, Flange
$6.75¢3 375
1
#13
33D-2117F-00-00
COVER
$35.85¢17 923
1
#14
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#15
90201-05N15-00
WASHER, PLATE
$7.60¢3 801
1
#16
90387-05003-00
COLLAR
$5.08¢2 541
1
#17
90480-12025-00
GROMMET
$6.08¢3 042
1
#18
3JD-22178-20-00
TENSIONER
$42.53¢21 263
1
#19
93300-60839-00
BEARING
$12.25¢6 124
1
#20
90387-086N4-00
COLLAR
$9.12¢4 560
1
#21
90105-08232-00
BOLT, FLANGE
$2.37¢1 185
1
#22
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#23
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#24
90105-10193-00
BOLT, FLANGE
$11.52¢5 761
1
#25
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#26
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#27
33D-21417-00-00
BRACKET, FRONT LOWER 1
$30.34¢15 168
1
#28
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#29
5XC-21456-90-00
PLATE, PATCH
$7.38¢3 691
1
#30
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#31
95704-10500-00
NUT, FLANGE
$1.93¢966
1
#32
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#33
90105-10189-00
BOLT, FLANGE
$9.18¢4 589
1
#34
33D-21425-00-00
BRACKET, REAR UPPER 1
$151.33¢75 664
1
#35
33D-21426-00-00
BRACKET, REAR UPPER 2
$140.81¢70 403
1
#36
90105-08226-00
BOLT, FLANGE
$2.71¢1 357
1
#37
33D-21471-00-00
PROTECTOR, ENGINE
$16.43¢8 217
1
#38
90119-06149-00
BOLT, WITH WASHER
$6.75¢3 375
1
#39
33D-2147E-00-00
GUARD, ENGINE 2
$36.60¢18 302
1
#39
18P-2467E-00-00
CAP
$7.23¢3 617
1
#40
90119-06146-00
BOLT, WITH WASHER
$3.92¢1 961
1
#41
33D-2116M-00-00
BRACKET 10
$27.13¢13 564
1
#42
90151-06034-00
SCREW, COUNTERSUNK
$1.79¢897
1
#43
33D-21163-00-00
HOLDER, CLUTCH CABLE
$31.02¢15 508
1
#44
92012-05010-00
BOLT, BUTTON HEAD
$6.87¢3 433
1
#45
33D-2194U-00-00
STAY, IGNITION COIL
$84.04¢42 021
1
#46
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#47
33D-2116J-00-00
BRACKET 7
$6.36¢3 180
1
#48
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#49
90464-31002-00
CLAMP
$4.20¢2 099
1
#50
33D-21268-00-00
SEAL
No Disponible
1
#51
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
#52
5TA-2814F-00-00
BOX, SPARK PLUG
$28.19¢14 093
1
#54
18P-2464V-00-00
CASE, CAP
$5.34¢2 668
1
#55
33D-2814A-00-00
WIRE, HOOK
$16.74¢8 372
1
#56
33D-24181-00-00
DAMPER, LOCATING 1
$14.51¢7 256
1
#57
33D-24182-00-00
DAMPER, LOCATING 2
$16.67¢8 337
1
#58
33D-24183-00-00
DAMPER, LOCATING 3
$11.73¢5 865
1
