RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

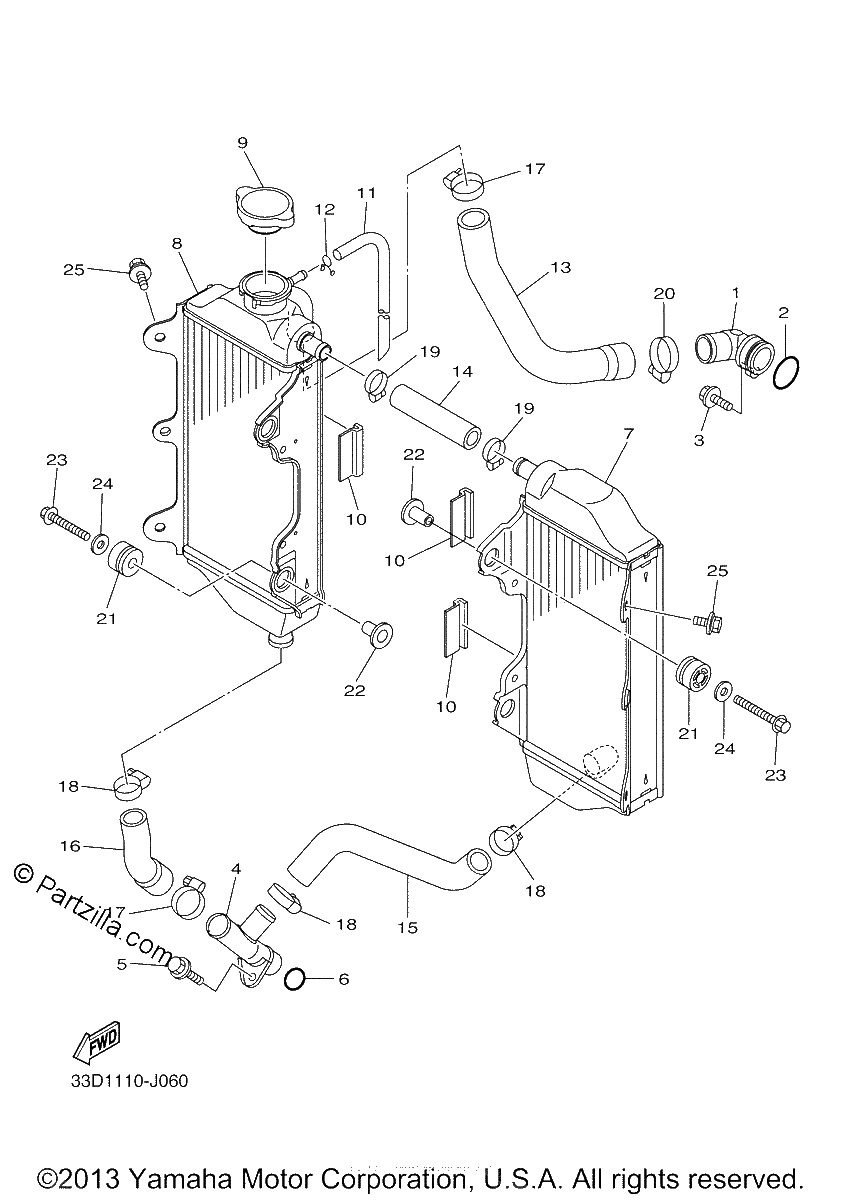

Diagrama de RADIATOR HOSE

Repuestos

#1
33D-12446-00-00
JOINT
$57.67¢28 838
1
#2
93210-24253-00
O-RING | INCL. IN BOTTOM END GASKET KIT
$5.93¢2 963
1
#3
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#4
33D-12482-00-00
PIPE 2
$55.32¢27 662
1
#5
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#6
93210-16500-00
O-RING
$5.85¢2 925
1
#7
33D-1240A-00-00
RADIATOR ASSY
$476.90¢238 450
1
#8
33D-12461-00-00
RADIATOR COMP
$430.44¢215 219
1
#9
5SL-12462-00-00
CAP, RADIATOR
$37.52¢18 763
1
#10
33D-12465-00-00
DAMPER, RADIATOR
$13.14¢6 569
1
#11
91A20-05080-00
TUBE, FLEXIBLE VINYL
$14.98¢7 488
1
#12
90467-090A2-00
Clip
$2.97¢1 487
1
#13
33D-12576-00-00
HOSE 1
$18.61¢9 306
1
#14
33D-12577-00-00
HOSE 2
$7.52¢3 762
1
#15
33D-12578-00-00
HOSE 3
$12.50¢6 250
1
#16
33D-12579-00-00
HOSE 4
$14.71¢7 356
1
#17
90450-28001-00
HOSE CLAMP ASSY
$14.94¢7 469
1
#18
90450-22M14-00
HOSE CLAMP ASSY
$16.43¢8 213
1
#19
90450-18M09-00
HOSE CLAMP ASSY
$12.54¢6 269
1
#20
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#21
90480-15012-00
GROMMET
$6.81¢3 406
1
#22
90387-06065-00
COLLAR
$11.39¢5 694
1
#23
90105-06111-00
Bolt, Flange
$7.34¢3 669
1
#24
90201-06571-00
WASHER, PLATE
$7.63¢3 813
1
#25
90119-06239-00
BOLT, WITH WASHER
$3.65¢1 825
1
