FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

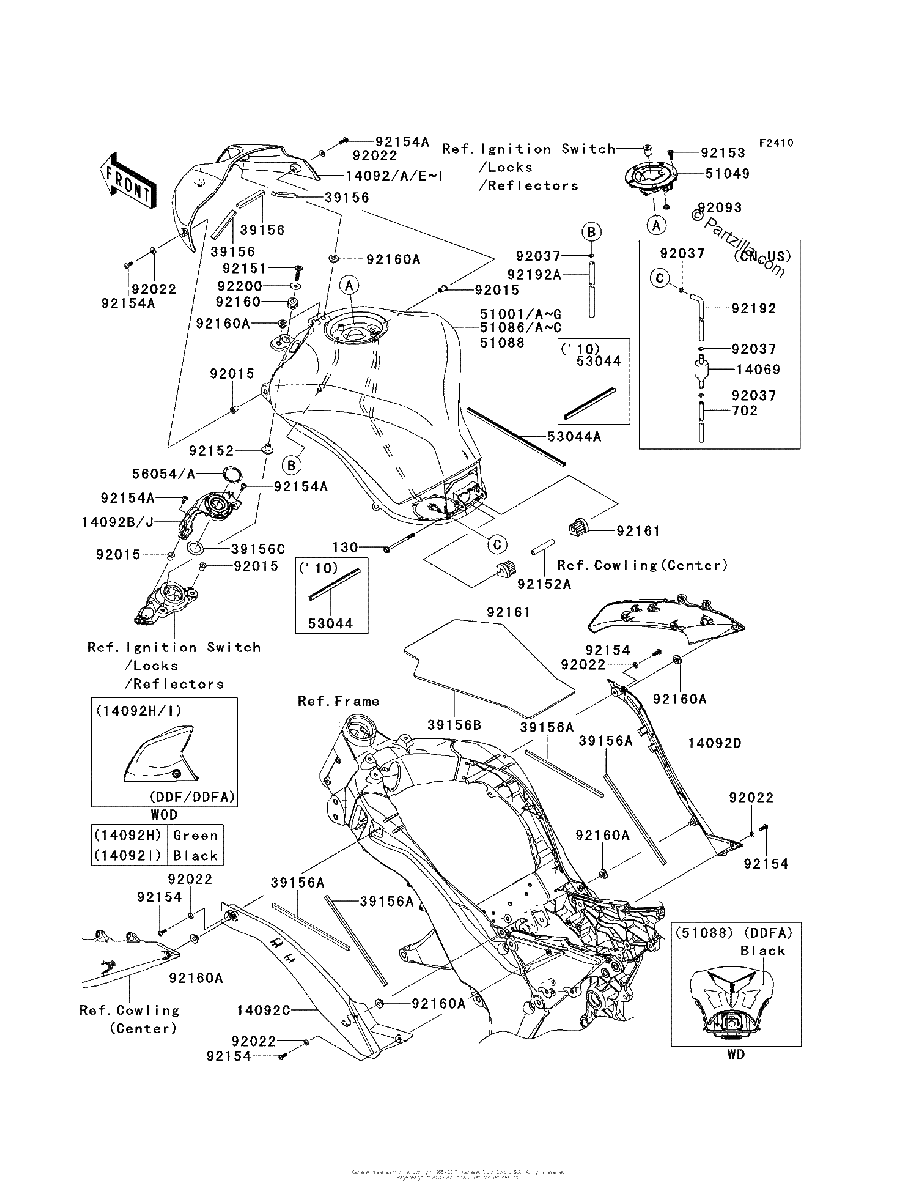

Diagrama de FUEL TANK

Repuestos

#130
130BB0670
BOLT FLANGED,6X70
$5.83¢2 913
1
#702
702A06300
TUBE RUBBER,6X9X300
$5.41¢2 706
1
#14069
14069-0008
BREATHER,TANK
$6.71¢3 356
1
#14092
14092-0171-40R
COVER,FUEL TANK,G B GREEN
$262.59¢131 294
1
#14092
14092-0171-660
COVER,FUEL TANK,M S BLACK
$262.61¢131 306
1
#14092
14092-0171-H8
COVER,FUEL TANK,EBONY
$267.50¢133 750
1
#14092
14092-0171-32N
COVER,FUEL TANK,F EBONY
$267.50¢133 750
1
#14092
14092-0171-17L
COVER,FUEL TANK,C B ORANGE
$267.50¢133 750
1
#14092
14092-0008-660
COVER,FUEL TANK,M S BLACK
No Disponible
1
#14092
14092-0008-25Y
COVER,FUEL TANK,P S WHITE
$280.39¢140 194
1
#14092I
14092-0171-660
COVER,FUEL TANK,M S BLACK
$262.61¢131 306
1
#14092B
14092-0009
COVER,KEY CYLINDER
No Disponible
1
#14092C
14092-0010-6Z
COVER,KNEE,Left Hand,F BLACK
$87.90¢43 950
1
#14092D
14092-0011-6Z
COVER,KNEE,Right Hand,F BLACK
$87.90¢43 950
1
#14092B
14092-0178
COVER,KEY CYLINDER
No Disponible
1
#14092J
14092-0178
COVER,KEY CYLINDER
No Disponible
1
#39156
39156-0562
PAD
$1.41¢706
1
#39156C
39156-0617
PAD
$4.19¢2 094
1
#39156B
39156-0566
PAD,FUEL TANK
$54.26¢27 131
1
#39156A
39156-0563
PAD
$4.19¢2 094
1
#51001
51001-0329-660
TANK COMP FUEL,M S BLACK
$1639.66¢819 831
1
#51001
51001-0329-H8
TANK COMP FUEL,EBONY
$1639.66¢819 831
1
#51001
51001-0322-25Y
TANK COMP FUEL,P S WHITE
$1718.84¢859 419
1
#51001
51001-0322-660
TANK COMP FUEL,M S BLACK
$1362.54¢681 269
1
#51001
51001-0329-17L
TANK COMP FUEL,C B ORANGE
$1639.66¢819 831
1
#51001
51001-0329-17P
TANK COMP FUEL,C L GREEN
$1639.66¢819 831
1
#51001
51001-0329-25Y
TANK COMP FUEL,P S WHITE
$1718.84¢859 419
1
#51001
51001-0329-40R
TANK COMP FUEL,G B GREEN
$1609.77¢804 887
1
#51049
51049-0039
CAP TANK,FUEL
$173.86¢86 931
1
#51086
51086-5396-17L
TANK COMP FUEL,C B ORANGE
$1523.26¢761 631
1
#51086
51086-5396-17P
TANK COMP FUEL,C L GREEN
$1523.26¢761 631
1
#51086
51086-5396-40R
TANK COMP FUEL,G B GREEN
$1523.26¢761 631
1
#51086
51086-5396-H8
TANK COMP FUEL,EBONY
$1523.26¢761 631
1
#51088
51088-5043-660
TANK COMP FUEL,M S BLACK
No Disponible
1
#53044A
53044-1296
TRIM
$13.45¢6 725
1
#53044
53044-0016
TRIM
$13.38¢6 688
1
#56054A
56054-1108
MARK,IGNITION
$8.65¢4 325
1
#56054
56054-0609
MARK,IGNITION
$8.89¢4 444
1
#56054
56054-1108
MARK,IGNITION
$8.65¢4 325
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-1521
WASHER,NYLON,5.3X11.5X1.5
$3.90¢1 950
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.90¢1 950
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92151
92151-1605
BOLT,SOCKET,6X30
$2.19¢1 094
1
#92152A
92152-1182
COLLAR,6.8X10X60
$4.80¢2 400
1
#92152
92152-0048
COLLAR
$2.68¢1 338
1
#92153
92153-1616
BOLT,SOCKET,5X16
$1.35¢675
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154
92154-0026
BOLT,SOCKET,5X16
$2.36¢1 181
1
#92160A
92160-1613
DAMPER
$3.70¢1 850
1
#92160
92160-1167
DAMPER,10X20X12
$4.65¢2 325
1
#92161
92161-1330
DAMPER,FUEL TANK,RR
$5.75¢2 875
1
#92192A
92192-0911
TUBE,6X9X950
$28.73¢14 363
1
#92192
92192-0798
TUBE,BREATHER
$5.64¢2 819
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.93¢1 963
1
