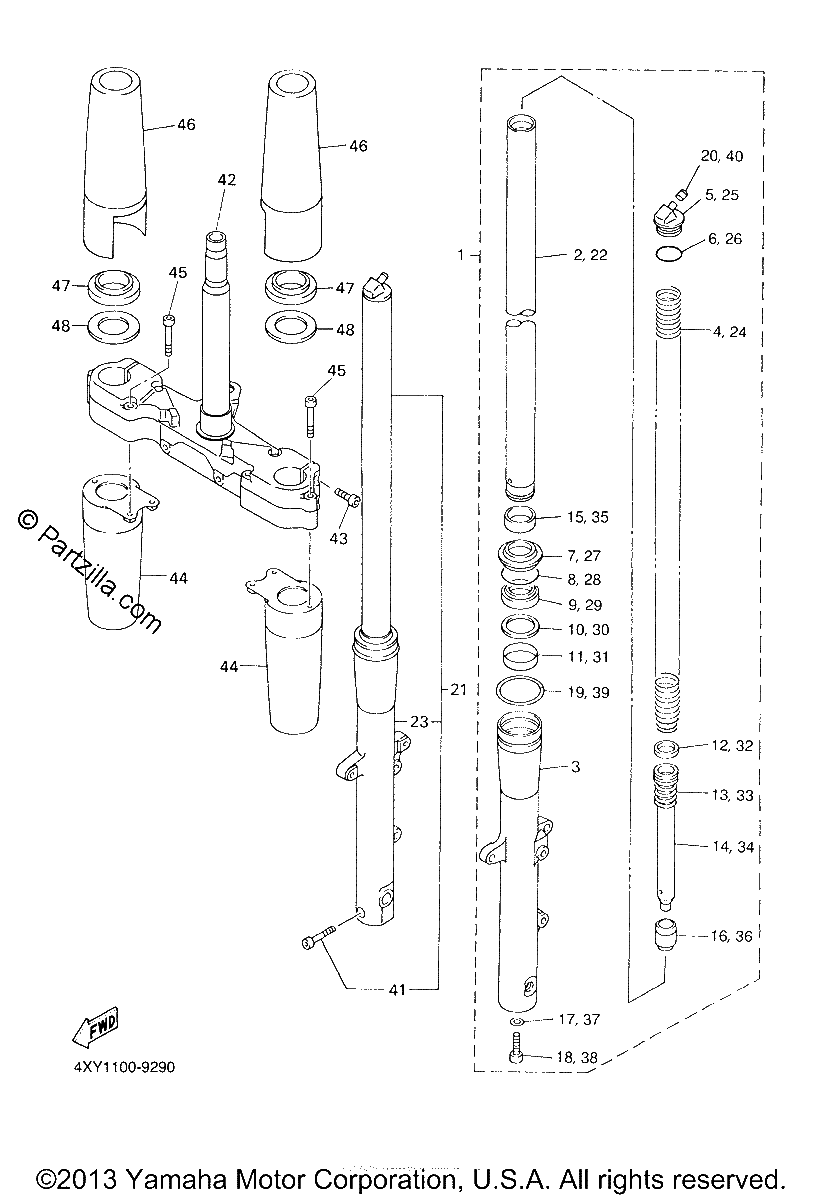

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$563.30¢281 652
#2
INNER TUBE COMP. 1
$251.25¢125 626
#3
TUBE, OUTER (LEFT)
$1160.34¢580 169
#4
SPRING, FRONT FORK
$57.67¢28 836
#5
BOLT, CAP
$138.33¢69 167
#6
O-RING
$7.08¢3 542
#7
SEAL, DUST
$19.14¢9 568
#8
RING, SNAP
$20.39¢10 195
#9
OIL SEAL
$20.83¢10 413
#10
WASHER, OIL SEAL
$9.56¢4 778
#11
METAL, SLIDE 1
$22.37¢11 184
#12
RING, PISTON
$9.56¢4 778
#13
SPRING, REBOUND
No Disponible
#14
PISTON, FRONT FORK
$58.72¢29 360
#15
METAL, SLIDE 2
$9.13¢4 566
#16
SPACER, OIL LOCK
$18.26¢9 131
#17
GASKET, DRAIN PLUG
$9.06¢4 531
#18
BOLT, HEXAGON SOCKET HEAD
$6.09¢3 048
#19
GUIDE, BOOT
$20.53¢10 264
#20
CAP, AIR VALVE
$7.57¢3 783
#21
FRONT FORK ASSY (R.H)
$599.14¢299 569
#22
INNER TUBE COMP. 1
$251.25¢125 626
#23
TUBE, OUTER (RIGHT)
$1170.69¢585 344
#24
SPRING, FRONT FORK
$57.67¢28 836
#25
BOLT, CAP
$138.33¢69 167
#26
O-RING
$7.08¢3 542
#27
SEAL, DUST
$19.14¢9 568
#28
RING, SNAP
$20.39¢10 195
#29
OIL SEAL
$20.83¢10 413
#30
WASHER, OIL SEAL
$9.56¢4 778
#31
METAL, SLIDE 1
$22.37¢11 184
#32
RING, PISTON
$9.56¢4 778
#33
SPRING, REBOUND
No Disponible
#34
PISTON, FRONT FORK
$58.72¢29 360
#35
METAL, SLIDE 2
$9.13¢4 566
#36
SPACER, OIL LOCK
$18.26¢9 131
#37
GASKET, DRAIN PLUG
$9.06¢4 531
#38
BOLT, HEXAGON SOCKET HEAD
$6.09¢3 048
#39
GUIDE, BOOT
$20.53¢10 264
#40
CAP, AIR VALVE
$7.57¢3 783
#41
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#42
UNDER BRACKET COMP.
$369.75¢184 874
#43
BOLT
$6.75¢3 375
#44
COVER, UNDER 1
$301.61¢150 805
#45
BOLT, HEXAGON SOCKET HEAD
$4.43¢2 214
#46
COVER, UPPER 1
$252.93¢126 465
#47
GASKET
$27.47¢13 737
#48
WASHER, FELT
$17.62¢8 809
