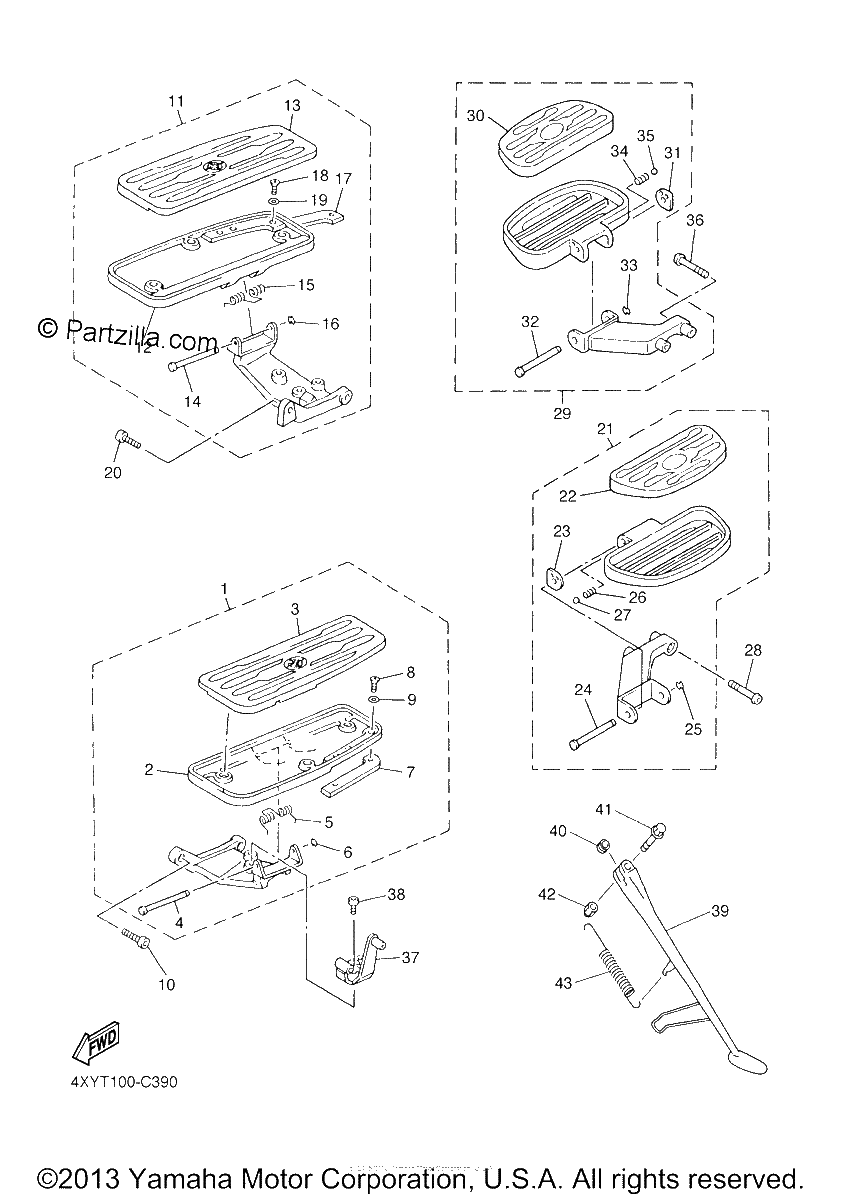

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FOOTREST ASSY (LEFT)
$324.11¢162 056
#2
FOOTREST
$70.92¢35 463
#3
COVER, FOOTREST
$85.14¢42 569
#4
SHAFT
$7.31¢3 656
#5
SPRING, RETURN
$7.55¢3 775
#6
CIRCLIP
$1.02¢513
#7
MOLE 1
$27.61¢13 806
#8
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
#9
WASHER
$4.88¢2 438
#10
BOLT
$8.16¢4 081
#11
FRONT FOOTREST ASSY (RIGHT)
$324.11¢162 056
#12
FOOTREST
$93.06¢46 531
#13
COVER, FOOTREST
$85.65¢42 825
#14
SHAFT
$7.31¢3 656
#15
SPRING, RETURN
$7.55¢3 775
#16
CIRCLIP
$1.02¢513
#17
MOLE 2
$27.65¢13 825
#18
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
#19
WASHER
$4.88¢2 438
#20
BOLT
$8.16¢4 081
#21
REAR FOOTREST ASSY 1
$281.77¢140 888
#22
COVER, REAR FOOTREST
No Disponible
#23
WASHER, SPECIAL
$6.06¢3 031
#24
SHAFT
$4.01¢2 006
#25
CIRCLIP
$1.02¢513
#26
SPRING, COMPRESSION
$7.94¢3 969
#27
BALL
$7.46¢3 731
#28
BOLT, BUTTON HEAD
$3.39¢1 694
#29
REAR FOOTREST ASSY 2
$281.77¢140 888
#30
COVER, REAR FOOTREST
No Disponible
#31
WASHER, SPECIAL
$6.06¢3 031
#32
SHAFT
$4.01¢2 006
#33
CIRCLIP
$1.02¢513
#34
SPRING, COMPRESSION
$7.94¢3 969
#35
BALL
$7.46¢3 731
#36
BOLT, BUTTON HEAD
$3.39¢1 694
#37
BRACKET 3
$130.38¢65 188
#38
BOLT
$6.25¢3 125
#39
STAND, SIDE
$248.79¢124 394
#40
COLLAR
$17.71¢8 856
#41
BOLT, FLANGE
$8.89¢4 444
#42
NUT,SELF-LOCKING
$12.04¢6 019
#43
SPRING, TENSION
$21.59¢10 794
