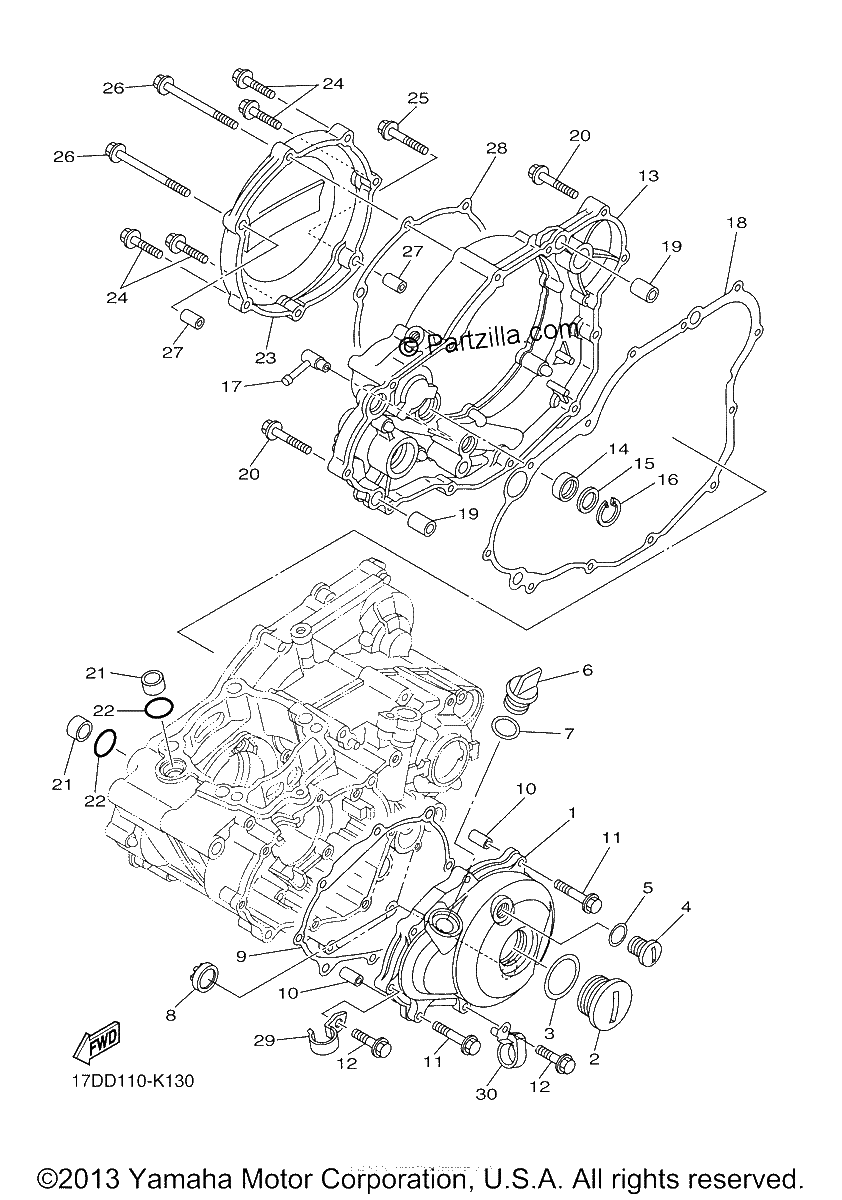

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$245.21¢122 606
#2
PLUG, STRAIGHT SCREW
$28.15¢14 075
#3
O-Ring
$6.88¢3 438
#4
PLUG, STRAIGHT SCREW
$19.35¢9 675
#5
O-Ring
$6.91¢3 456
#6
PLUG, OIL
$20.35¢10 175
#7
O-Ring
$8.24¢4 119
#8
GAUGE,LEVEL
$30.38¢15 188
#9
GASKET, CRANKCASE COVER 1 | INC. IN BOTTOM END GASKET KIT
$23.85¢11 925
#10
PIN, DOWEL
$6.71¢3 356
#11
Bolt, Flange
$3.55¢1 775
#12
BOLT, FLANGE
$1.75¢875
#13
COVER, CRANKCASE 3
$351.90¢175 950
#14
OIL SEAL
$11.55¢5 775
#15
WASHER, PLATE (T=1.0)
$7.34¢3 669
#16
CIRCLIP
$7.35¢3 675
#17
PIPE, BREATHER
$54.60¢27 300
#18
GASKET, CRANKCASE COVER 3 | INC. IN BOTTOM END GASKET KIT
$33.09¢16 544
#19
PIN, DOWEL
$6.15¢3 075
#20
Bolt, Flange
$3.55¢1 775
#21
PIPE, WATER
$6.29¢3 144
#22
O-RING
$1.70¢850
#23
COVER, GENERATOR
$107.09¢53 544
#24
BOLT, FLANGE
$1.75¢875
#25
Bolt, Flange
$3.55¢1 775
#26
BOLT, FLANGE
$5.02¢2 512
#27
PIN, DOWEL
$6.71¢3 356
#28
GASKET | INC. IN CLUTCH PLATE AND BOTTOM END GASKET KITS
$20.55¢10 275
#29
CLAMP
$17.56¢8 781
#30
HOLDER
$12.42¢6 212
