FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

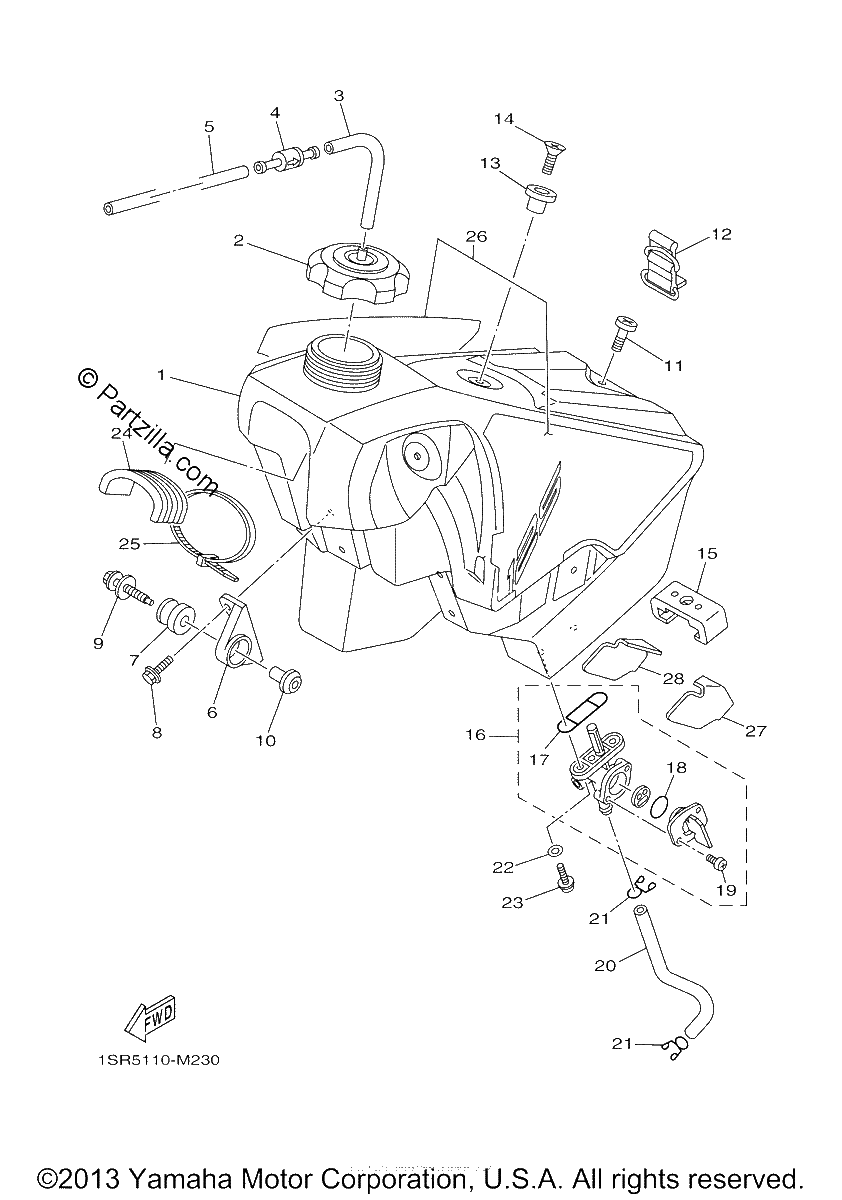

Diagrama de FUEL TANK

Repuestos

#1
1C3-24110-90-00
FUEL TANK COMP.
$797.59¢398 797
1
#2
5NY-24610-10-00
CAP ASSY
$60.52¢30 262
1
#3
5RB-24315-00-00
PIPE 5
$6.59¢3 295
1
#4
3XJ-24380-00-00
PIPE JOINT ASSY
$34.24¢17 118
1
#5
90445-092K1-00
HOSE (L420)
$12.04¢6 020
1
#6
5XE-24144-00-00
HOLDER, DAMPER
$21.83¢10 914
1
#7
90480-18549-00
Grommet
$9.66¢4 830
1
#8
90105-06107-00
BOLT, FLANGE
$6.75¢3 375
1
#9
5XE-24176-10-00
BOLT 1
$6.30¢3 151
1
#10
5NY-24186-00-00
WASHER, SPECIAL
$19.56¢9 781
1
#11
98907-06025-00
SCREW,BIND
$6.76¢3 381
1
#12
3SP-24173-00-00
BAND,TANK FITTING (replaces 1B2-F4173-00-00)
$20.26¢10 131
1
#13
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#14
98702-06025-00
Screw, Flat Head
$6.75¢3 375
1
#15
1C3-24181-00-00
DAMPER, LOCATING 1
$7.37¢3 686
1
#16
3JD-24500-20-00
FUEL COCK ASSY 1
$54.62¢27 312
1
#17
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#18
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#19
98580-03008-00
SCREW, PAN HEAD
$2.51¢1 254
1
#20
90445-110F5-00
HOSE (L210)
$15.43¢7 716
1
#21
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#22
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#23
90149-06108-00
SCREW
$1.05¢523
1
#24
1C3-24182-00-00
DAMPER, LOCATING 2
$10.56¢5 278
1
#25
90464-15152-00
CLAMP
$4.77¢2 386
1
#26
1SR-24240-10-00
GRAPHIC SET
$157.42¢78 712
1
#27
1C3-24183-00-00
DAMPER, LOCATING 3
$12.20¢6 101
1
#28
1C3-24184-00-00
DAMPER, LOCATING 4
$11.59¢5 796
1
