ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

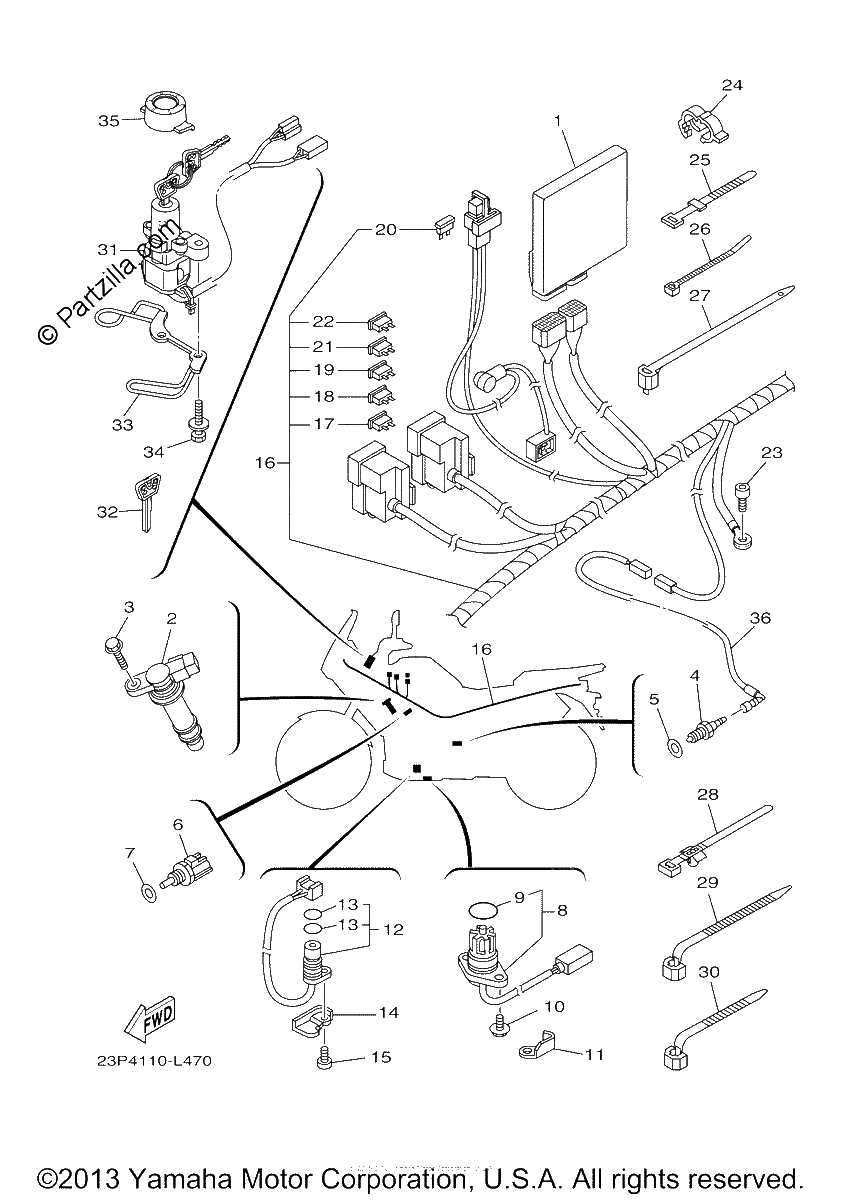

Diagrama de ELECTRICAL 1

Repuestos

#1
23P-8591A-70-00
ENGINE CONTROL UNIT ASSY
$2370.14¢1 185 069
1
#2
23P-82310-00-00
IGNITION COIL ASSY
$208.81¢104 403
1
#3
90105-06197-00
BOLT, FLANGE
$3.21¢1 604
1
#4
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#5
90430-10148-00
Gasket
$5.21¢2 605
1
#6
8CC-85790-01-00
THERMOSENSOR ASSY
$97.93¢48 967
1
#7
90201-12790-00
WASHER, PLATE
$7.51¢3 755
1
#8
23P-85720-00-00
OIL LEVEL GAUGE ASSY
$104.24¢52 118
1
#9
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#10
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#11
90465-10040-00
CLAMP
$8.08¢4 042
1
#12
23P-81670-00-00
PICK-UP ASSY
$145.13¢72 565
1
#13
5VY-8A8E1-00-00
O-RING 1
$6.51¢3 254
1
#14
23P-15589-00-00
PLATE
$6.84¢3 421
1
#15
91317-06016-00
BOLT
$1.35¢673
1
#16
23P-82590-10-00
WIRE HARNESS ASSY
$1399.54¢699 769
1
#17
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#18
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#19
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#20
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#21
67F-82151-30-00
FUSE (3A)
$5.51¢2 754
1
#22
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#23
91317-06012-00
BOLT
$6.75¢3 375
1
#24
90464-16003-00
CLAMP
$6.87¢3 433
1
#25
437-83936-01-00
BAND,SWITCH CORD
$5.24¢2 622
1
#26
90465-10098-00
CLAMP
$2.55¢1 277
1
#27
90464-55001-00
CLAMP
$1.48¢742
1
#28
90464-34002-00
CLAMP
$1.82¢909
1
#29
90464-15195-00
CLAMP
$3.04¢1 518
1
#30
90464-15195-00
CLAMP
$3.04¢1 518
1
#31
23P-82501-10-00
MAIN SWITCH STEERING LOCK
$223.31¢111 654
1
#32
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#33
23P-23389-00-00
GUIDE, CABLE
$27.63¢13 817
1
#34
90109-08196-00
BOLT
$6.76¢3 381
1
#35
3P6-82568-00-00
COVER, MAIN SWITCH
$36.59¢18 297
1
#36
23P-82541-00-00
WIRE, LEAD
$7.77¢3 887
1
