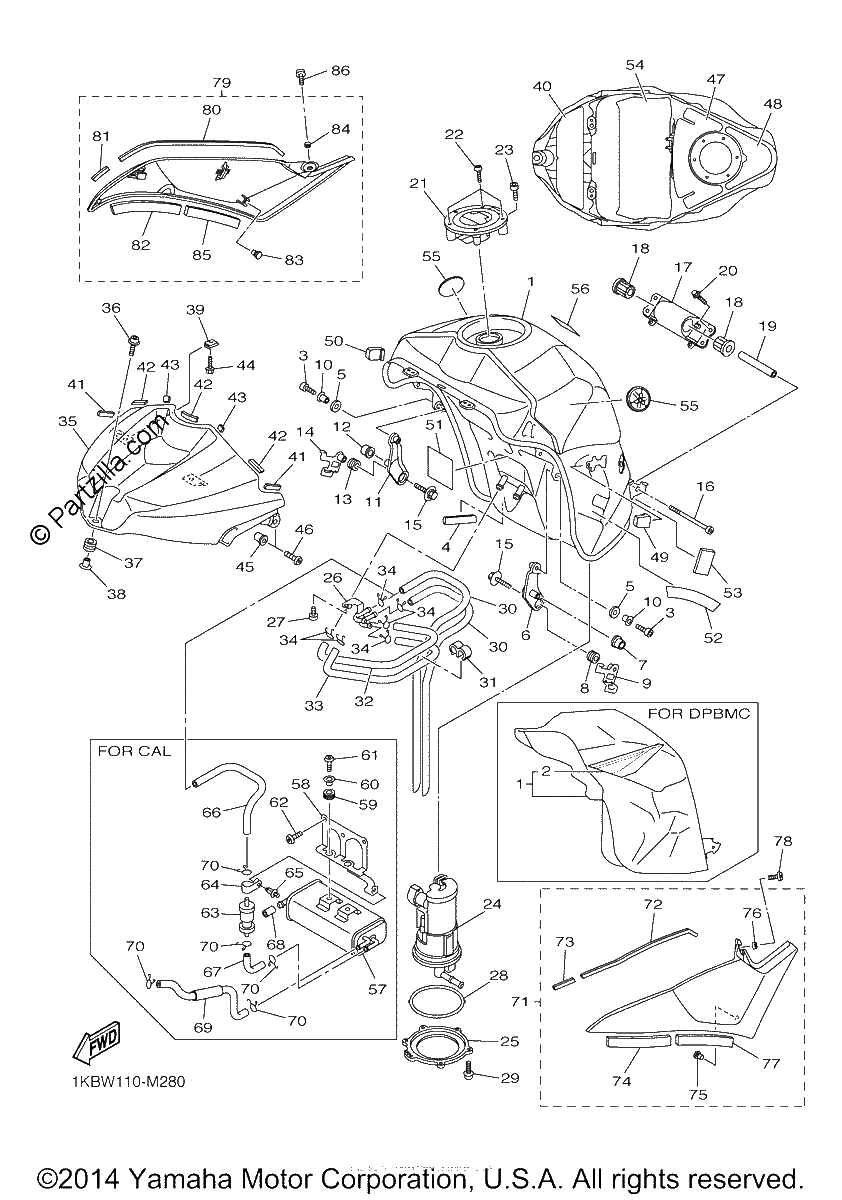

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 3 | FOR CALIFORNIA
$31.66¢15 831
#0
FUEL TANK COMP. | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
No Disponible
#0
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$276.08¢138 038
#0
COVER, TOP | Use for Color Black Metallic X ( SMX / 0903 )
$274.09¢137 044
#0
FUEL TANK COMP. | UR FOR MNM3
$1202.97¢601 488
#1
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1224.99¢612 494
#2
GRAPHIC SET | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$45.77¢22 888
#3
BOLT
$5.84¢2 919
#4
MOLD, FUEL TANK
$21.23¢10 613
#5
DAMPER, LOCATING 3
$7.77¢3 887
#6
BRACKET, FUEL TANK 1
$53.60¢26 800
#7
DAMPER, LOCATING 1
$7.65¢3 825
#8
GROMMET
$11.70¢5 850
#9
HOLDER, CABLE
$16.21¢8 106
#10
COLLAR
$6.49¢3 244
#11
BRACKET, FUEL TANK 2
No Disponible
#12
DAMPER, LOCATING 1
$7.65¢3 825
#13
GROMMET
$11.70¢5 850
#14
HOLDER, CLUTCH CABLE
$15.88¢7 938
#15
BOLT, WITH WASHER
$7.48¢3 738
#16
BOLT, HEXAGON SOCKET HEAD
$5.53¢2 763
#17
BRACKET, TANK FITTING
$63.89¢31 944
#18
DAMPER, LOCATING 3
$7.65¢3 825
#19
COLLAR
$5.19¢2 594
#20
BOLT, HEXAGON SOCKET
$9.13¢4 563
#21
CAP ASSY
$270.61¢135 306
#22
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#23
BOLT
$5.86¢2 931
#24
FUEL PUMP COMP.
$562.71¢281 356
#25
BRACKET, FUEL PUMP
$43.83¢21 913
#26
CLAMP 1
$30.47¢15 237
#27
BOLT
$6.19¢3 094
#28
O-RING
$44.47¢22 237
#29
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#30
PIPE 2 | FOR CALIFORNIA
$54.28¢27 138
#31
CLAMP
$7.36¢3 681
#32
PIPE 3
$12.84¢6 419
#33
PIPE 4
No Disponible
#34
Clip
$2.97¢1 487
#35
COVER, TOP | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$288.26¢144 131
#36
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#37
GROMMET
$7.43¢3 713
#38
COLLAR
$8.30¢4 150
#39
SEAL
$10.18¢5 088
#39
NUT, SPRING
$8.85¢4 425
#40
DAMPER, PLATE 1
$10.93¢5 463
#41
DAMPER, LOCATING 2
$7.70¢3 850
#42
DAMPER, LOCATING 1
$7.86¢3 931
#43
DAMPER, LOCATING 1
$7.95¢3 975
#44
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
#45
NUT
$6.78¢3 388
#46
SCREW, BIND
$1.44¢719
#47
DAMPER, PLATE 4
$67.65¢33 825
#48
DAMPER, PLATE 5
$39.41¢19 706
#49
DAMPER, SIDE COVER
$7.65¢3 825
#50
DAMPER, SIDE COVER
$7.65¢3 825
#51
DAMPER
$7.95¢3 975
#52
DAMPER, PLATE 3
$3.34¢1 669
#54
DAMPER, PLATE
$9.89¢4 944
#55
EMBLEM
$26.51¢13 256
#56
LABEL, CAUTION
$7.85¢3 925
#57
CANISTER ASSY | FOR CALIFORNIA
$362.29¢181 144
#58
BRACKET, CANISTOR | FOR CALIFORNIA
$61.28¢30 638
#59
GROMMET
$7.43¢3 713
#60
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#61
BOLT, BUTTON HEAD
$7.41¢3 706
#62
BOLT, HEX. SOCKET BUTTON
$2.11¢1 056
#63
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
#64
Clamp
$2.35¢1 175
#65
RIVET
$2.71¢1 356
#66
PIPE 5 | FOR CALIFORNIA
$29.82¢14 913
#67
PIPE 6 | FOR CALIFORNIA
$12.90¢6 450
#68
HOSE (L70)
$6.94¢3 469
#69
PIPE | FOR CALIFORNIA
$27.83¢13 913
#70
Clip
$2.97¢1 487
#71
TANK SIDE COVER ASSY 1
$151.18¢75 588
#72
DAMPER, PLATE 1
$7.86¢3 931
#73
DAMPER, PLATE 2
$7.95¢3 975
#74
DAMPER, PLATE 2
$6.55¢3 275
#75
PLUG
$6.76¢3 381
#76
SPACER
$4.59¢2 294
#77
DAMPER, PLATE
$3.89¢1 944
#78
SCREW, BIND
$1.46¢731
#79
TANK SIDE COVER ASSY 2
$107.93¢53 963
#80
DAMPER, PLATE 1
$7.86¢3 931
#81
DAMPER, PLATE 2
$7.95¢3 975
#82
DAMPER, PLATE 2
$6.55¢3 275
#83
PLUG
$6.76¢3 381
#84
SPACER
$4.59¢2 294
#85
DAMPER, PLATE
$3.89¢1 944
#86
SCREW, BIND
$1.46¢731
