RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

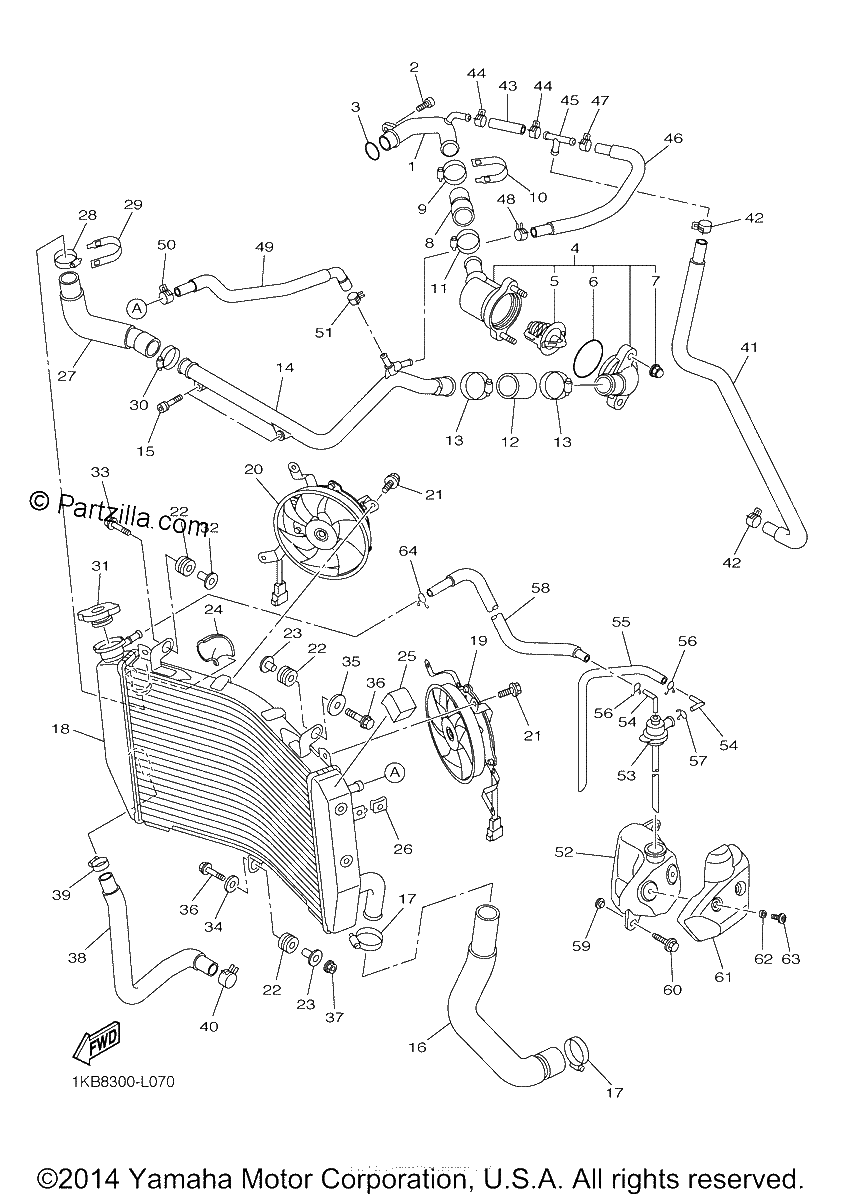

Diagrama de RADIATOR HOSE

Repuestos

#1
14B-12485-00-00
PIPE 5
$89.72¢44 861
1
#2
91317-06012-00
BOLT
$6.75¢3 375
1
#3
93210-235A1-00
O-RING
$6.30¢3 151
1
#4
14B-12410-00-00
THERMOSTAT ASSY
$90.48¢45 241
1
#5
5LP-12411-00-00
THERMOSTAT
$37.23¢18 613
1
#6
93210-49046-00
O-RING
$6.43¢3 214
1
#7
90176-06014-00
NUT, CROWN
$6.99¢3 496
1
#8
4C8-12579-00-00
HOSE 4
$19.22¢9 608
1
#9
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#10
5GV-1246E-00-00
COVER 2
$4.42¢2 208
1
#11
90450-38040-00
HOSE CLAMP ASSY
$17.27¢8 637
1
#12
14B-12579-00-00
HOSE 4
$10.28¢5 140
1
#13
90450-38040-00
HOSE CLAMP ASSY
$17.27¢8 637
1
#14
14B-12482-00-00
PIPE 2
$117.09¢58 546
1
#15
90110-06256-00
BOLT, HEXAGON SOCKET HEAD
$1.67¢834
1
#16
14B-12578-00-00
HOSE 3
$59.39¢29 693
1
#17
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#18
14B-12461-00-00
RADIATOR COMP
$590.05¢295 027
1
#19
1KB-12405-00-00
BLOWER ASSY
$365.22¢182 608
1
#20
1KB-12405-10-00
BLOWER ASSY
$208.08¢104 041
1
#21
5GJ-12675-00-00
BOLT, BLOWER HOLDING
$7.30¢3 651
1
#22
90480-15363-00
GROMMET
$6.75¢3 375
1
#23
90387-0614M-00
COLLAR
$9.04¢4 520
1
#24
14B-12465-00-00
DAMPER, RADIATOR
$3.48¢1 742
1
#25
13S-12688-00-00
DAMPER, SHROUD 7
$7.23¢3 617
1
#26
5SL-12671-00-00
NUT 1
$5.69¢2 846
1
#27
14B-12551-00-00
HOSE 7
$30.54¢15 272
1
#28
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#29
5GV-1246E-00-00
COVER 2
$4.42¢2 208
1
#30
90450-38040-00
HOSE CLAMP ASSY
$17.27¢8 637
1
#31
5SL-12462-00-00
CAP, RADIATOR
$34.52¢17 261
1
#32
90387-0614M-00
COLLAR
$9.04¢4 520
1
#33
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.62¢1 811
1
#34
90201-063J2-00
WASHER, PLATE
$4.88¢2 438
1
#35
90201-06074-00
WASHER,PLATE
$6.88¢3 439
1
#36
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
1
#37
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#38
14B-12589-00-00
HOSE 6
$72.96¢36 478
1
#39
90450-22M14-00
HOSE CLAMP ASSY
$15.11¢7 555
1
#39
14B-21875-00-00
CAP
$26.29¢13 144
1
#40
90467-200A0-00
CLIP
$8.69¢4 347
1
#41
14B-1243A-00-00
HOSE 1
$58.65¢29 325
1
#42
90467-10135-00
CLIP
$7.58¢3 789
1
#43
14B-1243E-00-00
HOSE 2
$3.29¢1 644
1
#44
90467-10135-00
CLIP
$7.58¢3 789
1
#45
90413-07023-00
WAY 3
$13.21¢6 607
1
#46
14B-1244G-00-00
HOSE, 4
$25.63¢12 817
1
#47
90467-10135-00
CLIP
$7.58¢3 789
1
#48
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#49
14B-12552-00-00
HOSE 8
$34.40¢17 198
1
#50
90467-10135-00
CLIP
$7.58¢3 789
1
#51
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#52
14B-21871-00-00
TANK, RECOVERY
$108.24¢54 119
1
#54
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#55
90445-081F1-00
HOSE (L508)
$13.43¢6 716
1
#56
90467-08003-00
CLIP
$6.90¢3 450
1
#57
90467-10M04-00
CLIP
$6.70¢3 352
1
#58
14B-1243F-00-00
HOSE, 3
$52.06¢26 030
1
#59
90387-06681-00
COLLAR
$7.24¢3 622
1
#60
90119-06177-00
BOLT, WITH WASHER
$6.75¢3 375
1
#61
14B-2172W-00-00
COVER
$7.50¢3 749
1
#62
90387-06106-00
COLLAR
$5.93¢2 967
1
#63
90111-06119-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#64
90467-08021-00
CLIP
$6.75¢3 375
1
