FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

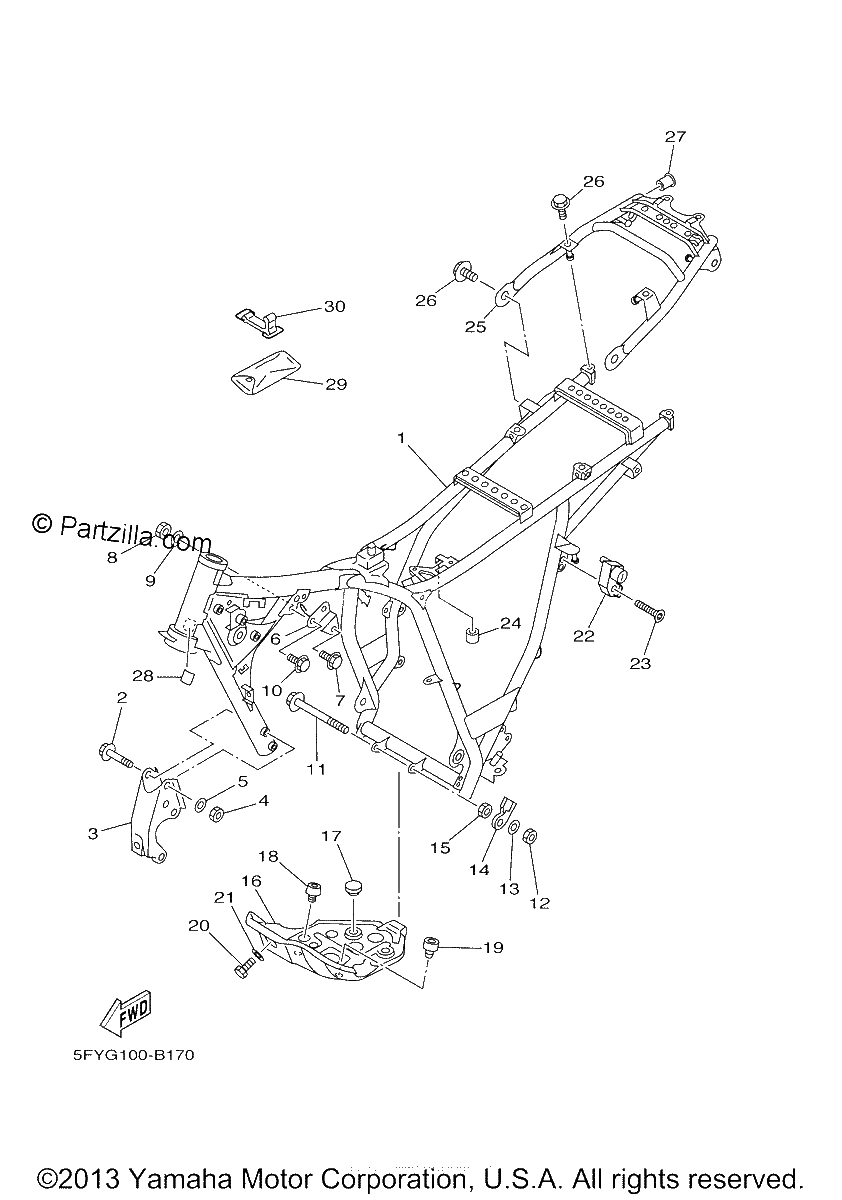

Diagrama de FRAME

Repuestos

#0
2JX-21316-01-P1
STAY, ENGINE 2 | S8(FOR CAL)
$49.65¢24 823
1
#0
5FY-21110-71-00
FRAME COMP. | FOR CAL
$1199.44¢599 719
1
#1
5FY-21110-61-00
FRAME COMP. | FOR U49
$1250.04¢625 019
1
#2
90105-084A1-00
BOLT, FLANGE
$10.27¢5 135
1
#3
1RL-21316-00-WL
STAY, ENGINE 3 | S8(FOR U49)
No Disponible
1
#4
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#5
90201-094G1-00
WASHER, PLATE
$7.65¢3 824
1
#6
5VC-21315-00-00
STAY, ENGINE 1
$18.85¢9 424
1
#7
95817-08050-00
BOLT, FLANGE
$3.44¢1 719
1
#8
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#9
90201-094G1-00
WASHER, PLATE
$7.65¢3 824
1
#10
90105-08066-00
BOLT, FLANGE
$7.45¢3 726
1
#11
95817-08120-00
BOLT, FLANGE
$4.20¢2 099
1
#12
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#13
90201-094G1-00
WASHER, PLATE
$7.65¢3 824
1
#14
1RL-21337-00-00
CLAMP, CABLE
$3.38¢1 691
1
#15
90185-08055-00
NUT, SELF-LOCKING
$9.12¢4 560
1
#16
1RL-21471-00-35
PROTECTOR, ENGINE | SL FOR PMIB
$129.62¢64 808
1
#17
128-27114-00-00
STOPPER, MAIN STAND
$7.24¢3 622
1
#18
34L-21485-00-00
DAMPER, RUBBER 1
$21.21¢10 603
1
#19
4N0-27114-00-00
STOPPER, MAIN STAND
$6.32¢3 162
1
#20
97017-06016-00
BOLT
$6.76¢3 381
1
#21
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#22
4R8-21308-01-00
HELMET HANGER ASSY
$80.04¢40 020
1
#23
90149-06154-00
SCREW,SPEC'L SHAPE (replaces 90151-06018-00)
$7.58¢3 789
1
#24
90480-12299-00
GROMMET
$1.45¢724
1
#25
2JX-21190-00-P1
REAR FRAME COMP. | S8 FOR PMIB
$214.58¢107 289
1
#26
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#27
90605-50201-00
PLUG
$3.96¢1 978
1
#28
3MA-27491-00-00
PROTECTOR
$9.10¢4 548
1
#29
5VC-28100-00-00
TOOL KIT
$49.35¢24 673
1
#30
3TJ-82131-00-00
BAND, BATTERY
$21.98¢10 988
1
