HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

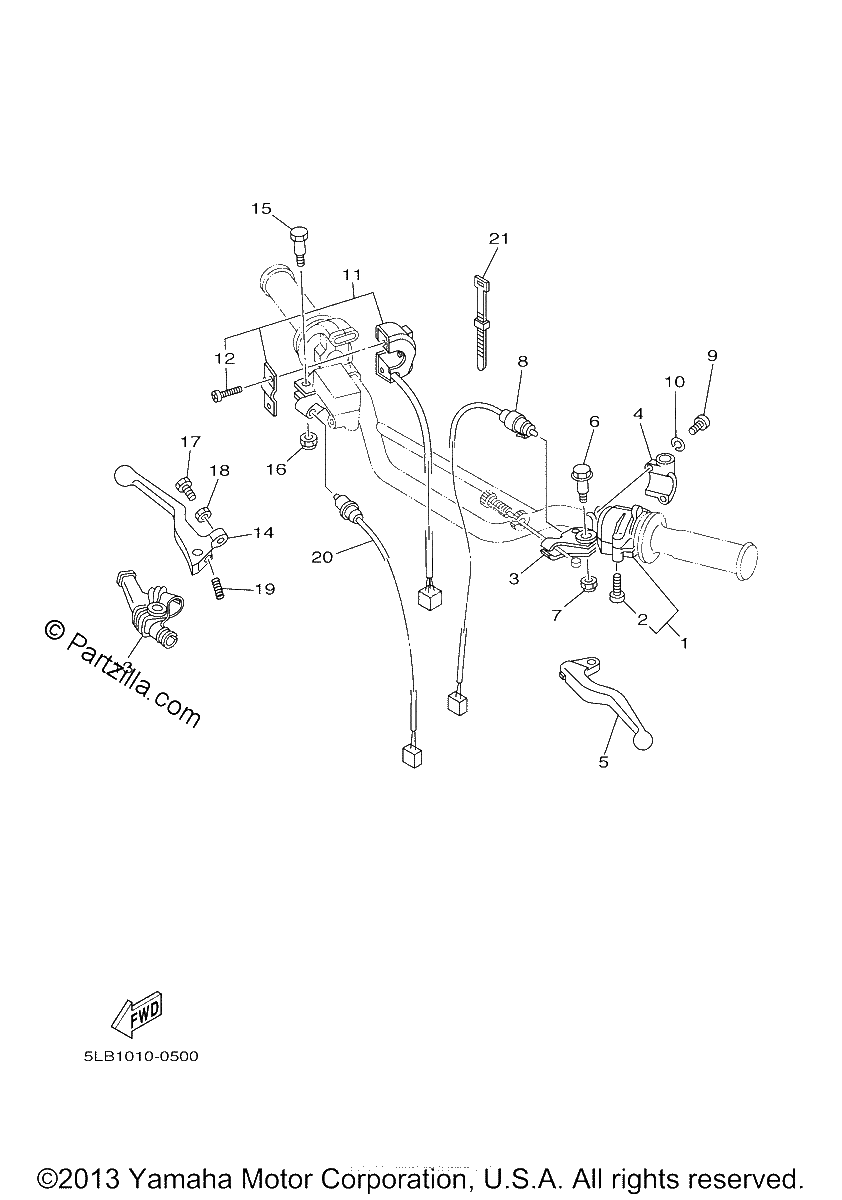

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
4CS-83973-00-00
SWITCH, HANDLE 3
$217.90¢108 951
1
#2
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#3
1LN-82911-00-00
HOLDER, LEVER 1
$38.80¢19 401
1
#4
33G-82913-01-00
HOLDER,LEVER LWR 1
$18.22¢9 108
1
#5
4GY-83912-00-00
LEVER 1
$28.27¢14 133
1
#6
90109-06799-00
BOLT
$4.97¢2 484
1
#7
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#8
4GY-82917-01-00
SWITCH
$43.49¢21 746
1
#9
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.48¢742
1
#10
92907-05100-00
WASHER, SPRING
$6.76¢3 381
1
#11
5LB-83975-01-00
SWITCH, HANDLE 2
$89.44¢44 718
1
#12
98507-05018-00
SCREW,PANHEAD(4MY
$2.71¢1 357
1
#13
1T5-26372-00-00
COVER,HANDLE LEVER
$19.56¢9 781
1
#14
55Y-83922-02-00
LEVER 2
$37.97¢18 987
1
#15
90109-06577-00
BOLT
$5.90¢2 950
1
#16
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#17
90149-06131-00
SCREW
$6.75¢3 375
1
#18
90170-06010-00
NUT
$6.75¢3 375
1
#19
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#20
2UJ-83980-00-00
FRONT STOP SWITCH ASSY
$43.32¢21 660
1
#21
437-83936-01-00
BAND,SWITCH CORD
$5.24¢2 622
1
