INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

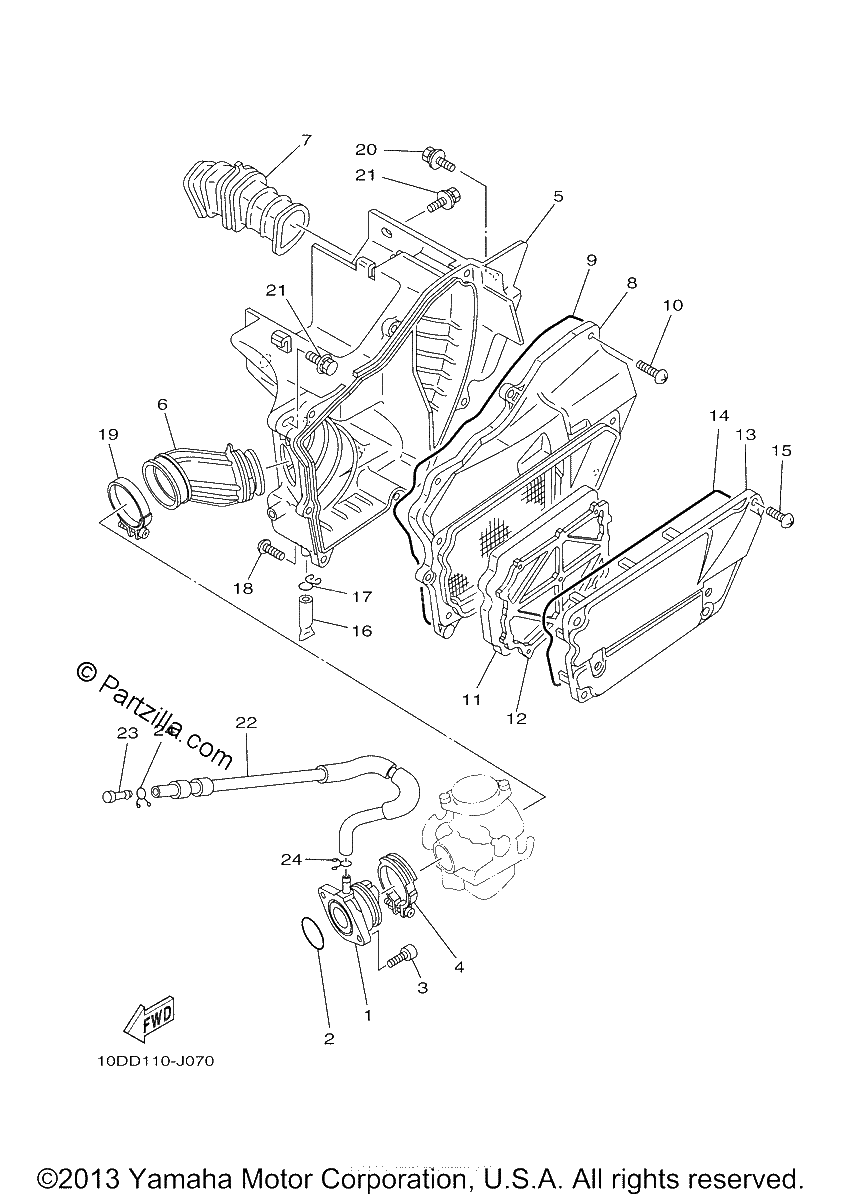

Diagrama de INTAKE

Repuestos

#1
5LB-13586-02-00
JOINT, CARBURETOR 1
$88.38¢44 188
1
#2
93210-35537-00
O-RING
$13.94¢6 969
1
#3
91317-06020-00
BOLT (4FL)
$2.60¢1 300
1
#4
90450-44046-00
HOSE CLAMP ASSY
$15.13¢7 563
1
#5
2JX-14411-02-00
CASE, AIR CLEANER 1
$50.06¢25 031
1
#6
5LB-14453-10-00
JOINT, AIR CLEANER 1
$30.84¢15 419
1
#7
2JL-14437-00-00
DUCT
$111.74¢55 869
1
#8
2JX-14412-00-00
CAP, CLEANER CASE 1
$172.09¢86 044
1
#9
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#10
97707-50620-00
SCREW, TRUSS (replaces 97707-50520-00)
$7.69¢3 844
1
#11
2JX-14451-00-00
ELEMENT, AIR CLEANER
$9.91¢4 956
1
#12
2JX-14458-00-00
GUIDE
$36.88¢18 438
1
#13
2JX-14422-00-00
CAP, CLEANER CASE 2
$87.00¢43 500
1
#14
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#15
90154-05005-00
SCREW, BINDING
$4.65¢2 325
1
#16
34X-1443E-00-00
PIPE, DRAIN
$8.01¢4 006
1
#17
90467-11106-00
Clip
$3.25¢1 625
1
#18
97780-50125-00
SCREW, TAPPING
$2.42¢1 213
1
#19
90460-51059-00
CLAMP, HOSE
$17.49¢8 744
1
#20
90119-06152-00
BOLT, WITH WASHER
$3.26¢1 631
1
#21
90119-06063-00
BOLT, WITH WASHER
$7.48¢3 738
1
#22
5LB-13584-00-00
PIPE, INTAKE MANIFOLD
$36.76¢18 381
1
#23
90338-08007-00
PLUG
$8.65¢4 325
1
#24
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
