CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

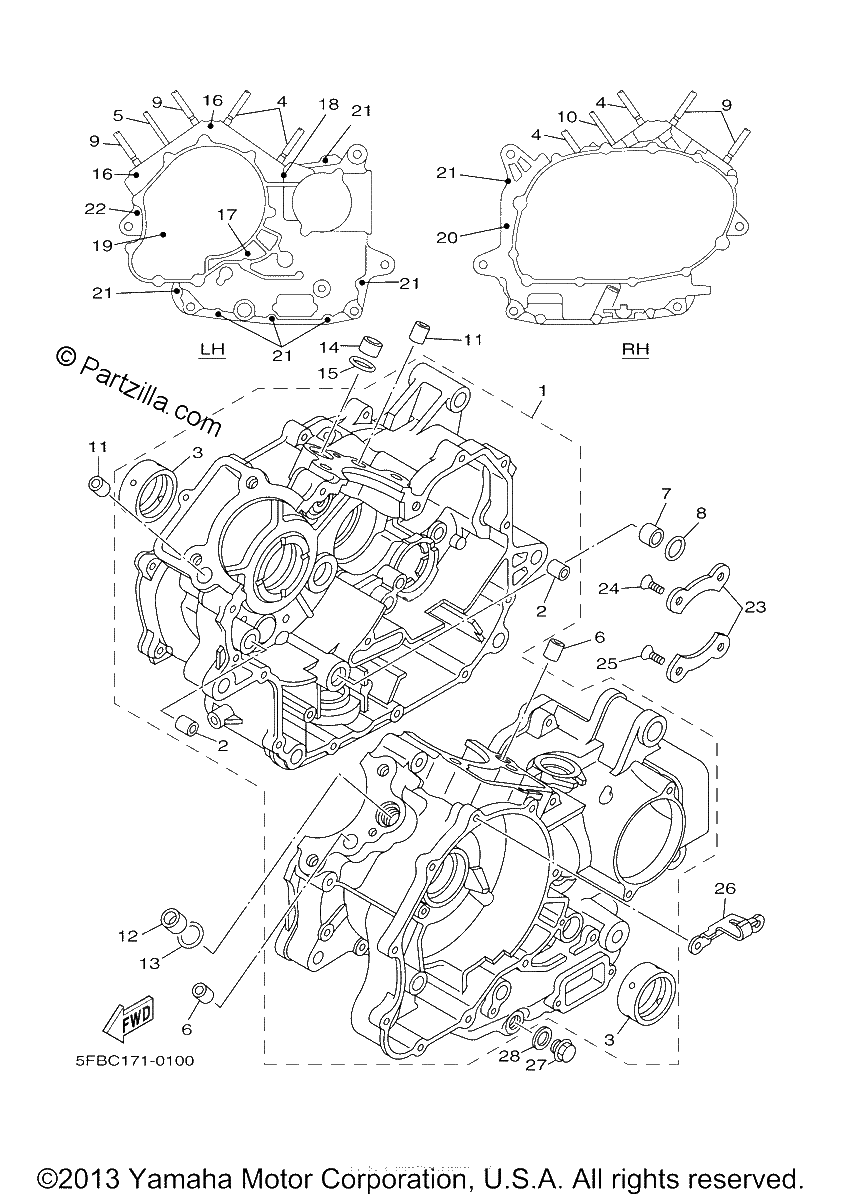

Diagrama de CRANKCASE

Repuestos

#0
22U-11416-90-00
PLANE BEARING, CRANKSHAFT 1 | UR GREEN
$81.36¢40 681
1
#1
4TR-15100-29-00
CRANKCASE ASSY
$1079.99¢539 994
1
#2
91815-16017-00
PIN, DOWEL
$8.10¢4 050
1
#3
22U-11416-80-00
PLANE BEARING, CRANKSHAFT 1 | UR BLUE
$52.73¢26 363
1
#4
90116-10611-00
BOLT, STUD
$17.68¢8 838
1
#5
90116-08404-00
BOLT, STUD
$9.53¢4 763
1
#6
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#7
90387-16547-00
COLLAR
$9.91¢4 956
1
#8
93210-18322-00
O-RING
$5.41¢2 706
1
#9
90116-10405-00
BOLT, STUD
$18.77¢9 388
1
#10
90116-08404-00
BOLT, STUD
$9.53¢4 763
1
#11
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#12
90387-16547-00
COLLAR
$9.91¢4 956
1
#13
93210-18322-00
O-RING
$5.41¢2 706
1
#14
90387-16547-00
COLLAR
$9.91¢4 956
1
#15
93210-18322-00
O-RING
$5.41¢2 706
1
#16
91314-08060-00
BOLT, HEXAGON SOCKET HEAD
$8.06¢4 031
1
#17
90110-08003-00
BOLT, HEXAGON SOCKET HEAD
$4.68¢2 338
1
#18
91314-08100-00
BOLT, HEXAGON SOCKET HEAD
$14.47¢7 238
1
#19
91317-06095-00
BOLT
$4.96¢2 481
1
#20
91380-06045-00
BOLT
$2.76¢1 381
1
#21
91317-06045-00
BOLT
$4.00¢2 000
1
#22
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#23
11H-15383-02-00
PLATE, BEARING COVER
$13.14¢6 569
1
#24
90151-08022-00
SCREW, COUNTERSUNK
$3.60¢1 800
1
#25
90149-08013-00
SCREW
$7.43¢3 713
1
#26
22U-15441-01-00
HOLDER, CLUTCH CABLE
$10.96¢5 481
1
#27
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#28
214-11198-01-00
GASKET
$3.23¢1 613
1
