FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

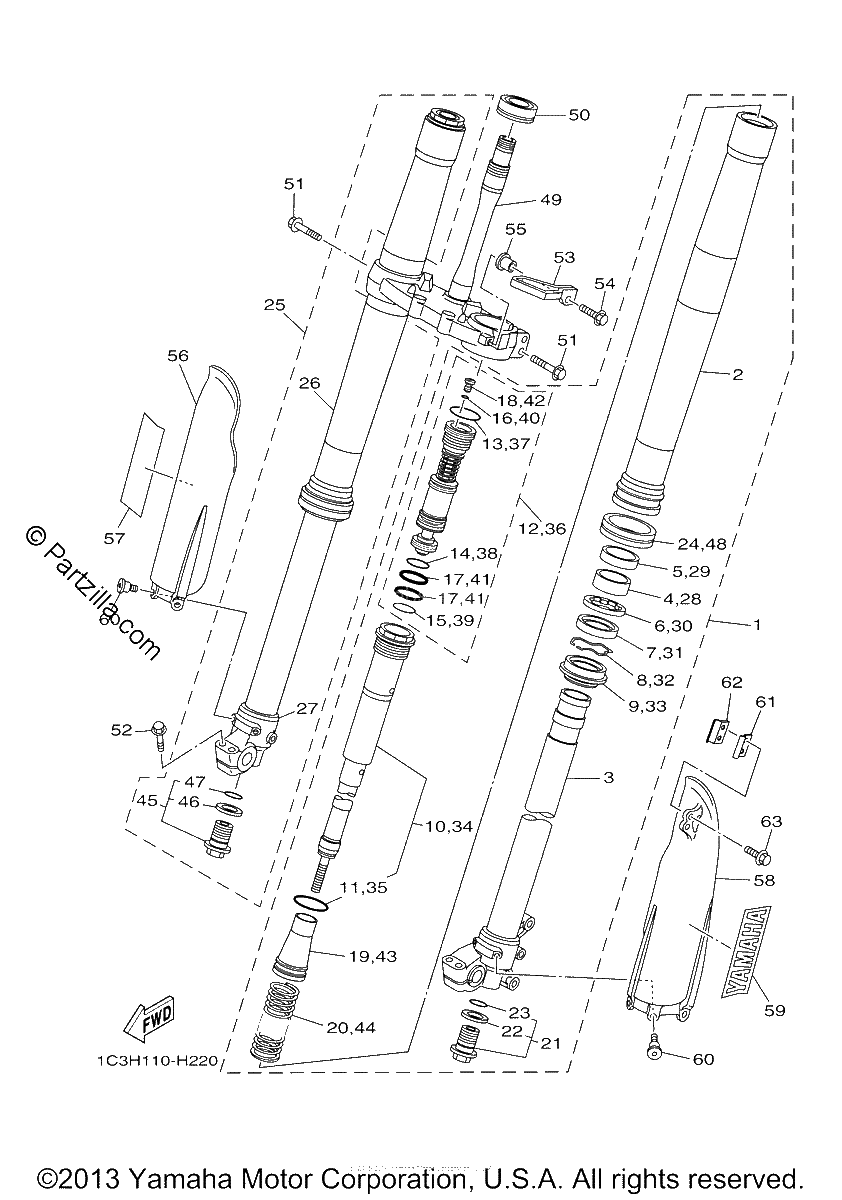

Diagrama de FRONT FORK

Repuestos

#1
1C3-23102-D0-00
FRONT FORK ASSY (L.H)
$1931.24¢965 619
1
#2
1C3-23136-P0-00
TUBE, OUTER (R.H)
$826.24¢413 119
1
#3
5XC-23120-N0-00
INNER TUBE COMP. 2
$511.88¢255 938
1
#4
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#5
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#6
5XC-23146-00-00
WASHER, OIL SEAL
$14.55¢7 275
1
#7
1C3-23145-L0-00
OIL SEAL | INCL. IN FORK SEAL KIT
$30.84¢15 419
1
#8
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#9
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#10
5XC-23170-P0-00
CYLINDER COMP., FRONT FORK
$822.49¢411 244
1
#11
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#12
1C3-2316A-T0-00
VALVE COMP.
$437.95¢218 975
1
#13
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#14
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#15
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#16
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#17
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#18
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#19
1C3-23142-L0-00
SEAT, SPRING UPPER
$92.21¢46 106
1
#20
1C3-23141-P0-00
SPRING, FRONT FORK (K=4.1N/
No Disponible
1
#21
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#22
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#23
276-23114-00-00
GASKET
$4.63¢2 313
1
#24
5XC-2314F-00-00
PROTECTER GUIDE COMP., 1
$49.35¢24 675
1
#25
1C3-23103-D0-00
FRONT FORK ASSY (R.H)
$1931.24¢965 619
1
#26
1C3-23136-P0-00
TUBE, OUTER (R.H)
$826.24¢413 119
1
#27
5XC-23110-N0-00
INNER TUBE COMP. 1
$587.80¢293 900
1
#28
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#29
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#30
5XC-23146-00-00
WASHER, OIL SEAL
$14.55¢7 275
1
#31
1C3-23145-L0-00
OIL SEAL | INCL. IN FORK SEAL KIT
$30.84¢15 419
1
#32
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#33
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#34
5XC-23170-P0-00
CYLINDER COMP., FRONT FORK
$822.49¢411 244
1
#35
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#36
1C3-2316A-T0-00
VALVE COMP.
$437.95¢218 975
1
#37
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#38
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#39
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#39
5XE-23389-00-00
GUIDE, CABLE
$16.79¢8 394
1
#40
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#41
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#42
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#43
1C3-23142-L0-00
SEAT, SPRING UPPER
$92.21¢46 106
1
#44
1C3-23141-P0-00
SPRING, FRONT FORK (K=4.1N/
No Disponible
1
#45
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#46
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#47
276-23114-00-00
GASKET
$4.63¢2 313
1
#48
5XC-2314F-00-00
PROTECTER GUIDE COMP., 1
$49.35¢24 675
1
#49
1C3-23340-M0-00
UNDER BRACKET COMP.
$654.99¢327 494
1
#50
93332-00081-00
BEARING
$60.51¢30 256
1
#51
90105-08134-00
BOLT, FLANGE
$6.99¢3 494
1
#52
90105-08154-00
BOLT, FLANGE
$6.88¢3 438
1
#54
90105-06107-00
BOLT, FLANGE
$7.34¢3 669
1
#55
90387-06104-00
Collar
$1.57¢788
1
#56
5XC-2315J-00-00
PROTECTOR 2
$20.84¢10 419
1
#57
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#58
5XC-2315H-00-00
PROTECTOR 1
$20.49¢10 244
1
#59
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#60
90109-06232-00
BOLT
$3.93¢1 963
1
#61
17D-23466-00-00
CLAMP
$19.71¢9 856
1
#62
17D-23467-00-00
CLAMP
$26.99¢13 494
1
#63
90105-06178-00
BOLT, FLANGE
$4.84¢2 419
1
