CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

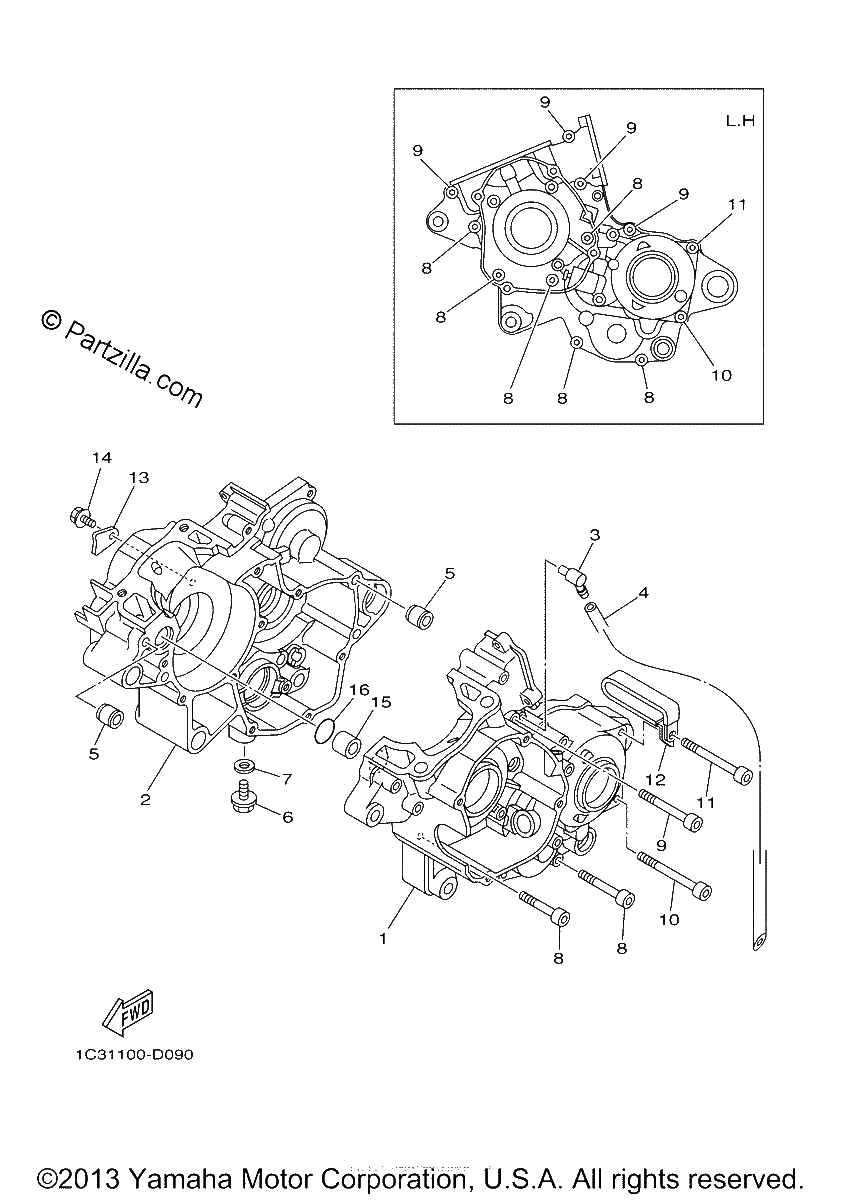

Diagrama de CRANKCASE

Repuestos

#1
1C3-15111-01-00
CRANKCASE 1
$1246.30¢623 151
1
#2
1C3-15121-00-00
CRANKCASE 2
$1021.90¢510 951
1
#3
353-13115-01-00
CONNECTOR, SUCTION PIPE
$5.76¢2 881
1
#4
90445-084J0-00
HOSE (3GG) (replaces 90445-082F3-00)
$17.99¢8 993
1
#5
99530-10116-00
PIN, DOWEL
$3.68¢1 840
1
#6
95022-10016-00
BOLT, FLANGE
$6.88¢3 439
1
#7
90430-10188-00
Gasket
$6.77¢3 387
1
#8
91312-06045-00
BOLT
$3.68¢1 840
1
#9
91312-06055-00
BOLT
$6.03¢3 013
1
#10
91312-06065-00
BOLT
$3.58¢1 788
1
#11
91312-06075-00
bolt
$4.62¢2 311
1
#12
90461-10136-00
HOLDER,CLCH CABLE
$22.08¢11 040
1
#13
4V4-15118-00-00
HOLDER
$27.83¢13 915
1
#14
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#15
99590-17016-00
PIN,DOWEL
$5.76¢2 881
1
#16
93210-16314-00
O-RING
$4.28¢2 139
1
