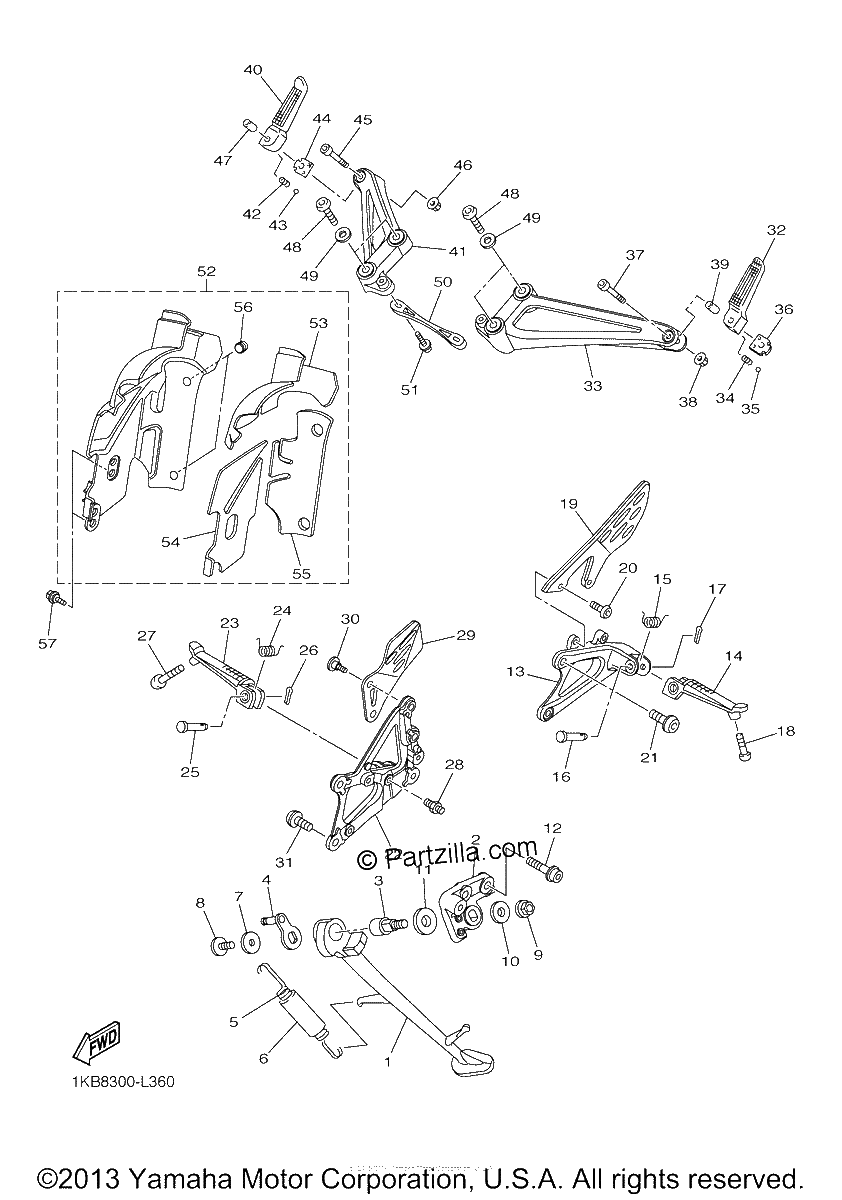

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$209.61¢104 805
#2
BRACKET, SIDE STAND
$256.08¢128 041
#3
GUIDE, SIDE STAND
$41.91¢20 953
#4
HOOK, SIDE STAND
$13.17¢6 584
#5
SPRING, TENSION
$14.52¢7 262
#6
HOSE (L60)
$5.61¢2 806
#7
WASHER, PLATE 8AT (replaces 90201-08753-00)
$6.92¢3 461
#8
BOLT,HEX. SOCKET BUTTON
$4.42¢2 208
#9
NUT, U FLANGE
$2.51¢1 254
#10
WASHER, plate
$3.91¢1 955
#11
WASHER, PLATE
$5.47¢2 737
#12
BOLT, HEXAGON SOCKET
$10.61¢5 307
#13
BRACKET 2
$176.36¢88 182
#14
FOOTREST
$75.68¢37 841
#15
SPRING, TORSION
$6.76¢3 381
#16
PIN
$4.28¢2 139
#17
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#18
BOLT
$6.52¢3 260
#19
PLATE 1
$77.92¢38 962
#20
BOLT,BUTTON HEAD
$2.71¢1 357
#21
BOLT
$2.08¢1 041
#22
BRACKET 3
$256.36¢128 179
#23
FOOTREST
$75.68¢37 841
#24
SPRING, TORSION
$8.10¢4 048
#25
PIN
$4.28¢2 139
#26
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#27
BOLT
$6.52¢3 260
#28
PIN, PEDAL CRANK
$24.76¢12 380
#29
PLATE 2
$67.95¢33 977
#30
BOLT
$6.99¢3 496
#31
BOLT
$2.08¢1 041
#32
FOOTREST, REAR 1
$78.27¢39 134
#33
BRACKET 4 | UR FOR SMX
$174.02¢87 009
#34
SPRING, COMPRESSION
$3.51¢1 754
#35
BALL
$6.87¢3 433
#36
WASHER, special
$6.46¢3 231
#37
BOLT
$3.84¢1 920
#38
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
#39
SEAT 3
$21.68¢10 839
#39
Collar
$14.60¢7 302
#40
FOOTREST, REAR 2
$69.56¢34 782
#41
BRACKET 5 | UR FOR SMX
$280.77¢140 386
#42
SPRING, COMPRESSION
$3.51¢1 754
#43
BALL
$6.87¢3 433
#44
WASHER, special
$6.46¢3 231
#45
BOLT
$3.84¢1 920
#46
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
#47
Collar
$14.60¢7 302
#48
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
#49
WASHER, FOOTREST
$11.17¢5 583
#50
REINFORCEMENT 1
$55.57¢27 784
#51
bolt
$2.10¢1 052
#52
PROTECTOR ASSY
$130.94¢65 470
#54
SEAT 4
$7.77¢3 887
#55
SEAT 6
$4.47¢2 237
#56
DAMPER, MUFFLER
$5.58¢2 789
#57
BOLT
$4.74¢2 369
