COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

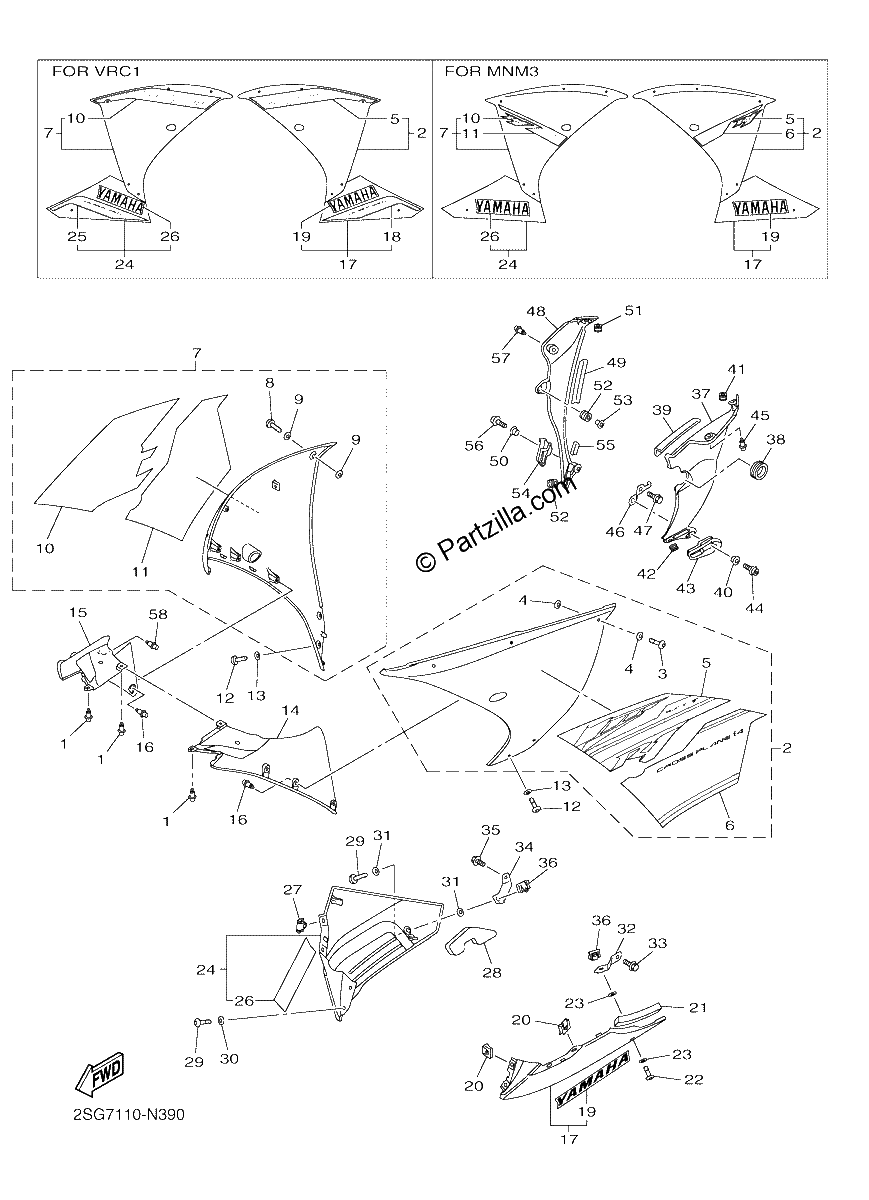

Diagrama de COWLING 2

Repuestos

#1
90269-06008-00
RIVET
$8.10¢4 048
1
#2
14B-W283U-2E-P0
PANEL ASSY 1 *{UR FOR MNM3}*
$448.17¢224 083
1
#3
14B-28386-00-00
HEAD
$10.43¢5 215
1
#4
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#5
1KB-28391-B0-00
GRAPHIC 1 *{UR FOR MNM3}*
$48.39¢24 196
1
#6
1KB-2839B-01-00
EMBLEM 3D *{UR FOR MNM3}*
$133.87¢66 936
1
#7
14B-W283V-2E-P0
PANEL ASSY 2 *{UR FOR MNM3}*
$339.69¢169 843
1
#8
14B-28386-00-00
HEAD
$10.43¢5 215
1
#9
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#10
1KB-28392-B0-00
GRAPHIC 2 *{UR FOR MNM3}*
$48.39¢24 196
1
#11
1KB-2839B-01-00
EMBLEM 3D *{UR FOR MNM3}*
$133.87¢66 936
1
#12
14B-28386-00-00
HEAD
$10.43¢5 215
1
#13
90202-06005-00
WASHER, plate
$3.10¢1 553
1
#14
14B-2836K-00-00
PANEL, INNER 1
$81.79¢40 894
1
#15
14B-2836L-00-00
PANEL, INNER 2
$83.24¢41 619
1
#16
90269-06008-00
RIVET
$8.10¢4 048
1
#17
14B-W2838-J0-P1
UNDER COVER COMP. 1 (MAT BLACK 2) *{UR MBL2 FOR MNM3}*
$223.16¢111 579
1
#19
99247-00240-00
EMBLEM, YAMAHA | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$14.33¢7 165
1
#20
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#21
90520-30004-00
DAMPER, PLATE
$11.74¢5 871
1
#22
14B-28386-00-00
HEAD
$10.43¢5 215
1
#23
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#24
14B-W2839-J0-P1
UNDER COVER COMP. 2 (MAT BLACK 2) *{UR MBL2 FOR MNM3}*
$223.16¢111 579
1
#26
99247-00240-00
EMBLEM, YAMAHA | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$14.33¢7 165
1
#27
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#28
14B-28371-10-00
Damper
$8.21¢4 105
1
#29
14B-28386-00-00
HEAD
$10.43¢5 215
1
#30
90202-06005-00
WASHER, plate
$3.10¢1 553
1
#31
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#32
14B-2836A-00-00
BRACKET 1
$17.27¢8 637
1
#33
95802-06016-00
Bolt, Flange
$1.64¢822
1
#34
14B-2836E-00-00
BRACKET 2
$19.62¢9 809
1
#35
90105-06174-00
Bolt, Flange
$1.64¢822
1
#36
5PW-2177L-00-00
Plate, Spring
$6.82¢3 410
1
#37
14B-2836M-10-P0
PANEL, INNER 3 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$230.37¢115 184
1
#38
14B-2836T-00-00
DAMPER, locating 1
$5.24¢2 622
1
#39
90520-05011-00
DAMPER, PLATE
$7.92¢3 962
1
#40
90560-08251-00
SPACER
$8.21¢4 105
1
#41
90480-08006-00
Grommet
$3.44¢1 719
1
#42
90480-12596-00
GROMMET
$9.99¢4 997
1
#43
14B-283C1-00-00
STOPPER, RUBBER 1
$10.43¢5 215
1
#44
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#45
90269-07077-00
RIVET
$7.59¢3 795
1
#46
14B-28321-00-00
STAY 1
$25.60¢12 800
1
#47
95802-06012-00
Bolt, Flange
$1.64¢822
1
#48
14B-2836N-10-P0
PANEL, INNER 4 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$169.40¢84 698
1
#49
3NU-21732-00-00
SEAL 1
$6.00¢3 001
1
#50
90560-08251-00
SPACER
$8.21¢4 105
1
#51
90480-08006-00
Grommet
$3.44¢1 719
1
#52
90480-12596-00
GROMMET
$9.99¢4 997
1
#53
90387-065J6-00
Collar
$6.99¢3 496
1
#54
14B-283C2-00-00
STOPPER, RUBBER 2
$9.56¢4 778
1
#55
4B5-2847F-00-00
SEAL 5
$9.56¢4 778
1
#56
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#57
90269-07077-00
RIVET
$7.59¢3 795
1
#58
90269-06008-00
RIVET
$8.10¢4 048
1
