REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

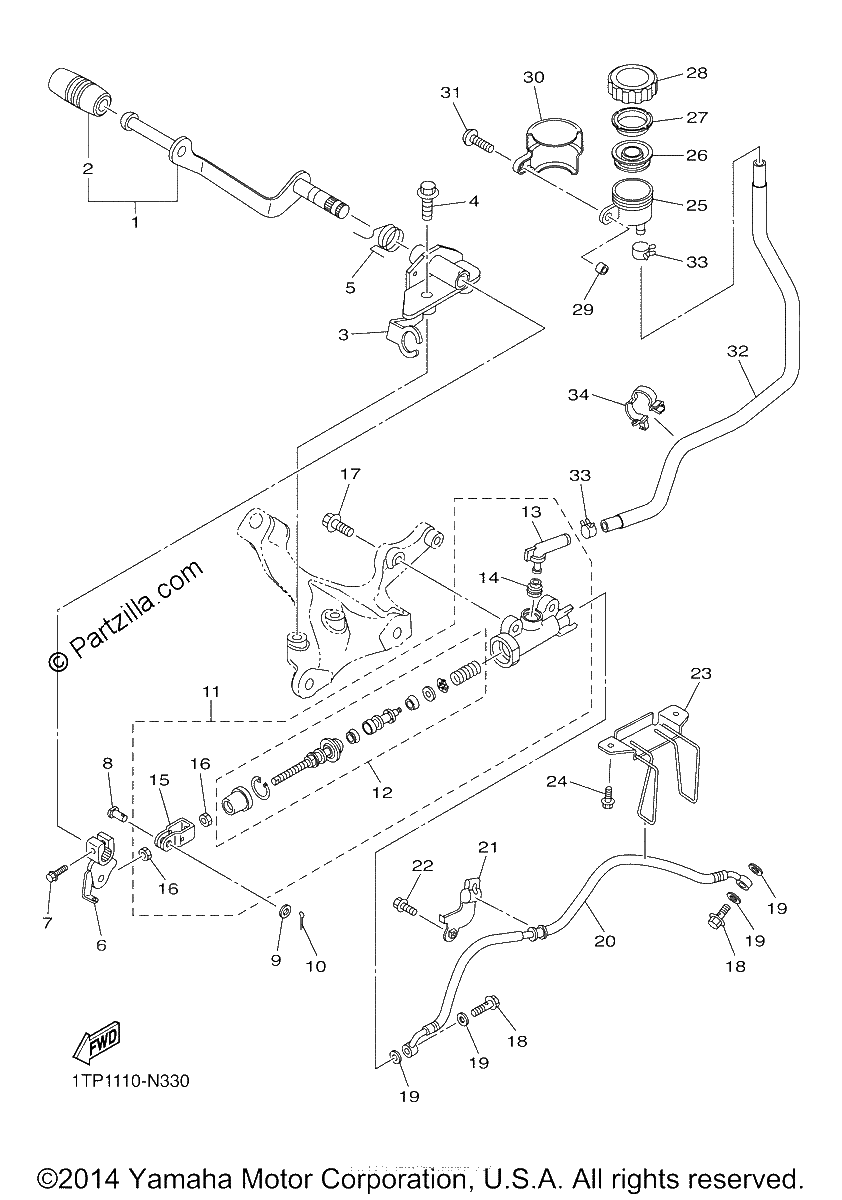

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
1TP-27200-00-00
PEDAL, BRAKE
$92.67¢46 338
1
#2
5VN-18113-00-00
COVER, SHIFT PEDAL
$15.59¢7 794
1
#3
1TP-27243-00-00
BOSS, BRAKE PEDAL
$68.58¢34 288
1
#4
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$7.34¢3 669
1
#5
1TP-27216-00-00
SPRING, RETURN
$8.64¢4 319
1
#6
1TP-27262-00-00
LEVER
$57.73¢28 863
1
#7
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$3.02¢1 513
1
#8
90240-08124-00
PIN, CLEVIS
$6.76¢3 381
1
#9
90201-08083-00
WASHER, PLATE
$7.48¢3 738
1
#10
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#11
1TP-2583V-00-00
REAR MASTER CYLINDER ASSY.
$180.51¢90 256
1
#12
1TP-25808-00-00
CYLINDER KIT, MASTER
$60.51¢30 256
1
#13
4BP-2582A-00-00
JOINT
$19.23¢9 613
1
#14
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#15
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#16
90170-08010-00
NUT
$7.49¢3 744
1
#17
95027-08030-00
BOLT, FLANGE
$3.57¢1 787
1
#18
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#19
90430-10005-00
GASKET
$8.39¢4 194
1
#20
1TP-2581J-00-00
HOSE, BRAKE 4
$79.00¢39 500
1
#21
1TP-2588F-00-00
HOLDER, BRAKE HOSE 5
$12.13¢6 063
1
#22
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#23
1TP-2587A-00-00
HOLDER, BRAKE HOSE
$31.21¢15 606
1
#24
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#25
31A-25894-10-00
TANK, RESERVOIR
$49.16¢24 581
1
#26
360-25854-01-00
DIAPHRAGM, RESERVOIR
$24.86¢12 431
1
#27
2GU-25855-00-00
BUSH, DIAPHRAGM
$30.38¢15 188
1
#28
2KF-25852-50-00
CAP, RESERVOIR
$51.06¢25 531
1
#29
90387-06072-00
COLLAR
$7.50¢3 750
1
#30
4NK-25888-00-00
COVER, RESERVOIR TANK
$92.86¢46 431
1
#31
92014-06020-00
BOLT, BUTTON HEAD
$8.24¢4 119
1
#32
1TP-25895-00-00
HOSE, RESERVOIR
$47.86¢23 931
1
#33
90467-14057-00
CLIP
$8.97¢4 488
1
#34
90464-23239-00
CLAMP
$2.11¢1 056
1
