HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

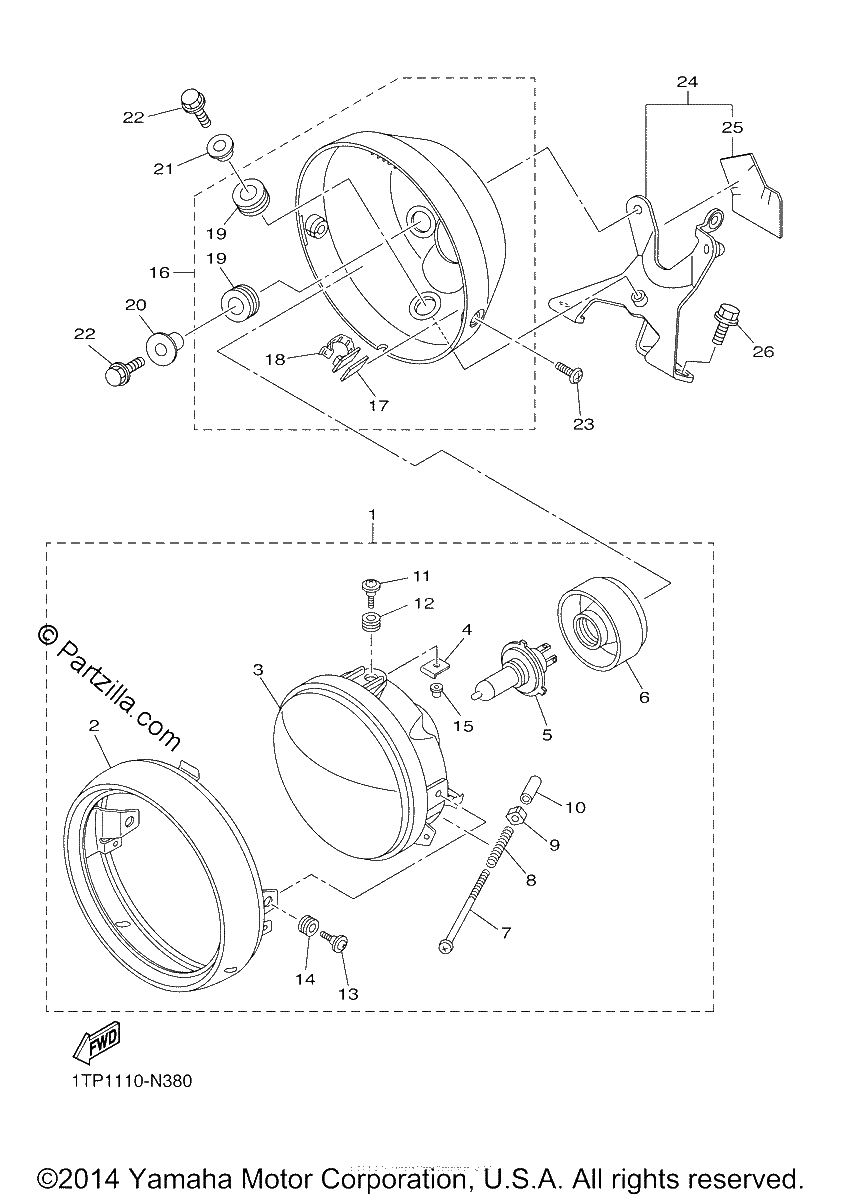

Diagrama de HEADLIGHT

Repuestos

#1
5S7-84310-00-00
HEADLIGHT UNIT ASSY
$478.54¢239 269
1
#2
5S7-84315-00-00
RIM, HEADLIGHT
$98.35¢49 175
1
#3
5PX-84320-00-00
LENS ASSY
$226.76¢113 381
1
#4
5PX-84318-00-00
STAY, HEADLIGHT 1
$75.80¢37 900
1
#5
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$90.15¢45 075
1
#6
5PX-84397-00-00
COVER, SOCKET
$41.91¢20 956
1
#7
5PX-84331-00-00
SCREW, RIM ADJUSTING
$7.86¢3 931
1
#8
5PX-84332-00-00
SPRING, SCREW
$7.86¢3 931
1
#9
5PX-84334-00-00
NUT, ADJUSTING
$7.86¢3 931
1
#10
5PX-84385-00-00
CAP,1
$7.86¢3 931
1
#11
5PX-84325-00-00
SCREW, RIM FITTING
$7.91¢3 956
1
#12
5PX-84354-00-00
GROMMET
$6.04¢3 019
1
#13
5PX-84125-00-00
SCREW, RIM FITTING
$7.65¢3 825
1
#14
5PX-84352-00-00
GROMMET
$7.08¢3 538
1
#15
5PX-84317-00-00
NUT
$8.24¢4 119
1
#16
1TP-84330-00-00
BODY ASSY
$69.03¢34 513
1
#17
1TP-28428-00-00
SEAL 1
$3.38¢1 688
1
#18
90464-09009-00
CLAMP
$7.50¢3 750
1
#19
4WM-84366-00-00
DAMPER, HEADLIGHT 1
$11.85¢5 925
1
#20
90387-067K8-00
COLLAR
$6.19¢3 094
1
#21
90387-06040-00
COLLAR
$10.91¢5 456
1
#22
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#23
98907-05014-00
SCREW, BIND
$7.77¢3 887
1
#24
1TP-8411A-00-00
HEAD LIGHT STAY ASSY.
$59.49¢29 744
1
#25
1TP-84136-00-00
DAMPER, HEADLIGHT STAY
$10.45¢5 225
1
#26
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$7.34¢3 669
1
