EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

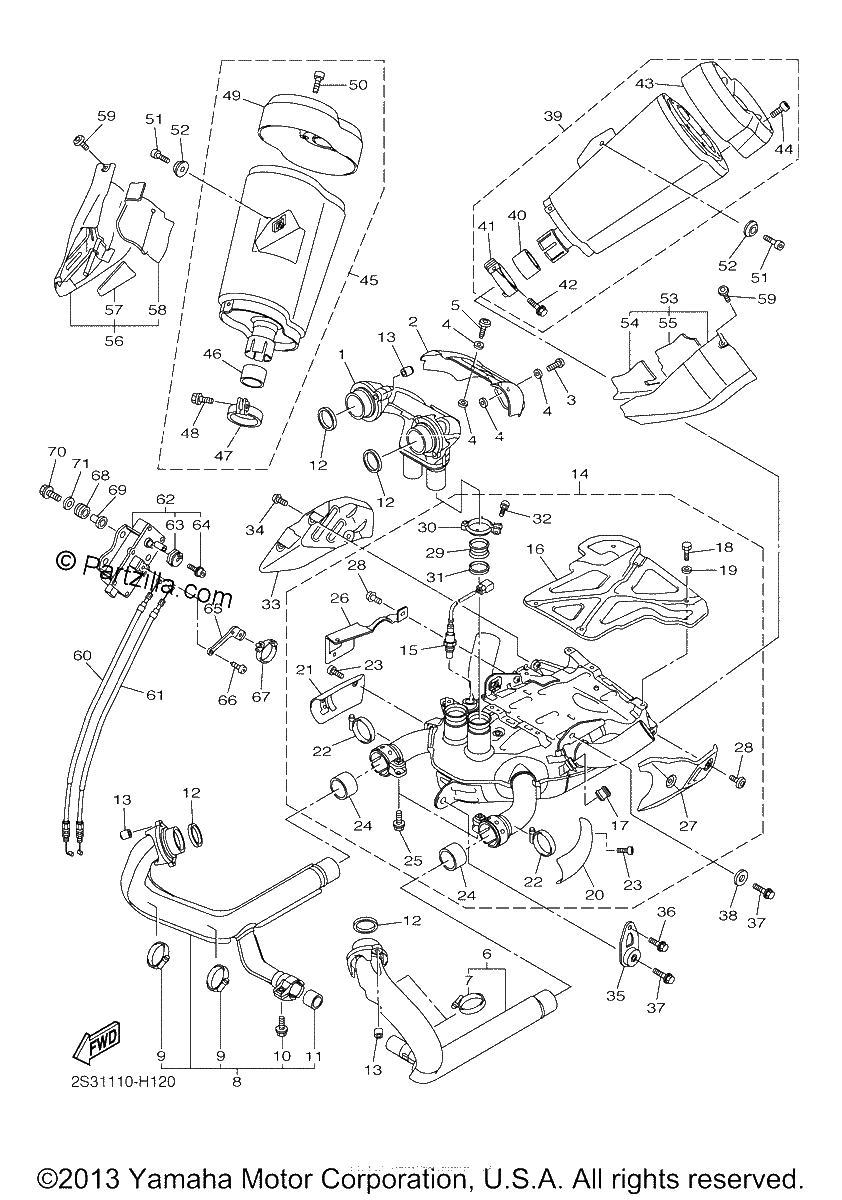

Diagrama de EXHAUST

Repuestos

#1
2S3-14602-01-00
EXHAUST PIPE COMP.
$826.24¢413 119
1
#2
2S3-14624-00-00
COVER, EXHAUST
$348.89¢174 444
1
#3
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#4
90201-05015-00
WASHER, PLATE
$7.48¢3 738
1
#5
90111-06128-00
BOLT,HEX. SOCKET BUT
$4.45¢2 225
1
#6
2S3-14620-01-00
EXHAUST PIPE ASSY 2
$1107.49¢553 744
1
#7
90450-45001-00
HOSE CLAMP ASSY
$23.13¢11 563
1
#8
2S3-14650-01-00
EXHAUST PIPE ASSY 4
$1206.24¢603 119
1
#9
90450-45001-00
HOSE CLAMP ASSY
$23.13¢11 563
1
#10
95024-08020-00
BOLT,FLANGE (2UJ)
$7.94¢3 969
1
#11
2S3-14714-00-00
GASKET, MUFFLER
$22.68¢11 338
1
#12
2S3-14613-00-00
Gasket, Exhaust Pipe
$11.27¢5 637
1
#13
90179-08442-00
NUT,SPEC'L SHAPE
$6.81¢3 406
1
#14
2S3-14701-00-00
MUFFLER COMP.
$3291.24¢1 645 619
1
#15
2S3-8592A-00-00
Sensor, Oxygen
$359.56¢179 781
1
#16
2S3-1479H-00-00
COVER, 1
$161.80¢80 900
1
#17
2S3-14737-00-00
DAMPER, MUFFLER
$27.16¢13 581
1
#18
97013-06012-00
BOLT (661)
$5.61¢2 806
1
#19
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#20
2S3-1479J-00-00
COVER 2
$223.35¢111 675
1
#21
2S3-1479K-00-00
COVER, 3
$214.27¢107 137
1
#22
90450-45001-00
HOSE CLAMP ASSY
$23.13¢11 563
1
#23
91314-06010-00
bolt
$3.23¢1 613
1
#24
5YU-14755-10-00
GASKET, SILENCER
$31.43¢15 713
1
#25
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#26
2S3-1479L-00-00
COVER 4
$58.22¢29 112
1
#27
2S3-14718-00-00
PROTECTOR, MUFFLER 1
$88.86¢44 431
1
#28
90111-06101-00
BOLT,HEX. SOCKET BUT
$7.49¢3 744
1
#29
2S3-14618-00-00
RING, STOPPER
$36.61¢18 306
1
#30
2S3-14725-00-00
BAND, MUFFLER
$92.64¢46 319
1
#31
2S3-14623-00-00
Gasket, Exhaust Pipe
$14.65¢7 325
1
#32
90110-06344-00
BOLT, HEXAGON SOCKET
$2.29¢1 144
1
#33
2S3-14826-00-00
PROTECTOR, EXHAUST
$82.05¢41 025
1
#34
90111-06101-00
BOLT,HEX. SOCKET BUT
$7.49¢3 744
1
#35
2S3-2144F-00-00
STAY, MUFFLER 3
$74.34¢37 169
1
#36
95024-08020-00
BOLT,FLANGE (2UJ)
$7.94¢3 969
1
#37
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#38
90201-087G2-00
WASHER, PLATE
$3.70¢1 850
1
#39
2S3-14710-00-00
MUFFLER ASSY 1
$1544.99¢772 494
1
#39
2S3-1473A-00-00
BODY,3-1
$436.39¢218 194
1
#40
5VY-14714-00-00
GASKET, MUFFLER
$29.59¢14 794
1
#41
3D8-14715-00-00
BAND, MUFFLER
$43.39¢21 694
1
#42
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#43
2S3-14787-00-00
CAP, SILENCER
$279.05¢139 525
1
#44
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#45
2S3-14720-00-00
MUFFLER ASSY 2
$1517.49¢758 744
1
#46
5VY-14714-00-00
GASKET, MUFFLER
$29.59¢14 794
1
#47
5VY-14715-00-00
BAND, MUFFLER
$47.55¢23 775
1
#48
95024-08035-00
BOLT,FLANGE (3EF)
$7.34¢3 669
1
#49
2S3-14787-00-00
CAP, SILENCER
$279.05¢139 525
1
#50
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#51
91314-08040-00
BOLT (3JP)
$6.25¢3 125
1
#52
2S3-27417-00-00
WASHER, FOOTREST
$23.34¢11 669
1
#54
2S3-1475P-00-00
Seat
$45.26¢22 631
1
#55
2S3-1476P-00-00
Seat
$45.26¢22 631
1
#56
2S3-1474A-00-00
BODY,4-1
$424.04¢212 019
1
#57
2S3-1477P-00-00
Seat
$45.26¢22 631
1
#58
2S3-1478P-00-00
Seat
$28.06¢14 031
1
#59
92014-06010-00
BOLT, BUTTON HEAD
$6.29¢3 144
1
#60
2S3-1133E-00-00
CABLE, PULLEY 1
$73.79¢36 894
1
#61
2S3-1133F-00-00
CABLE, PULLEY 2
$73.94¢36 969
1
#62
2C0-85820-00-00
SERVO MOTOR ASSY
$536.14¢268 069
1
#63
2C0-85821-00-00
Pulley, Drive
$8.92¢4 462
1
#64
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#65
2S3-21637-00-00
CLAMP, WIRE
$6.63¢3 313
1
#66
97780-50514-00
SCREW,TAPPING (replaces 97702-50514-00)
$4.56¢2 281
1
#67
90464-07209-00
Clamp
$1.90¢950
1
#68
90480-14005-00
Grommet
$4.00¢2 000
1
#69
90387-06158-00
COLLAR
$7.34¢3 669
1
#70
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#71
90201-06M31-00
WASHER,PLATE
$3.57¢1 787
1
