REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

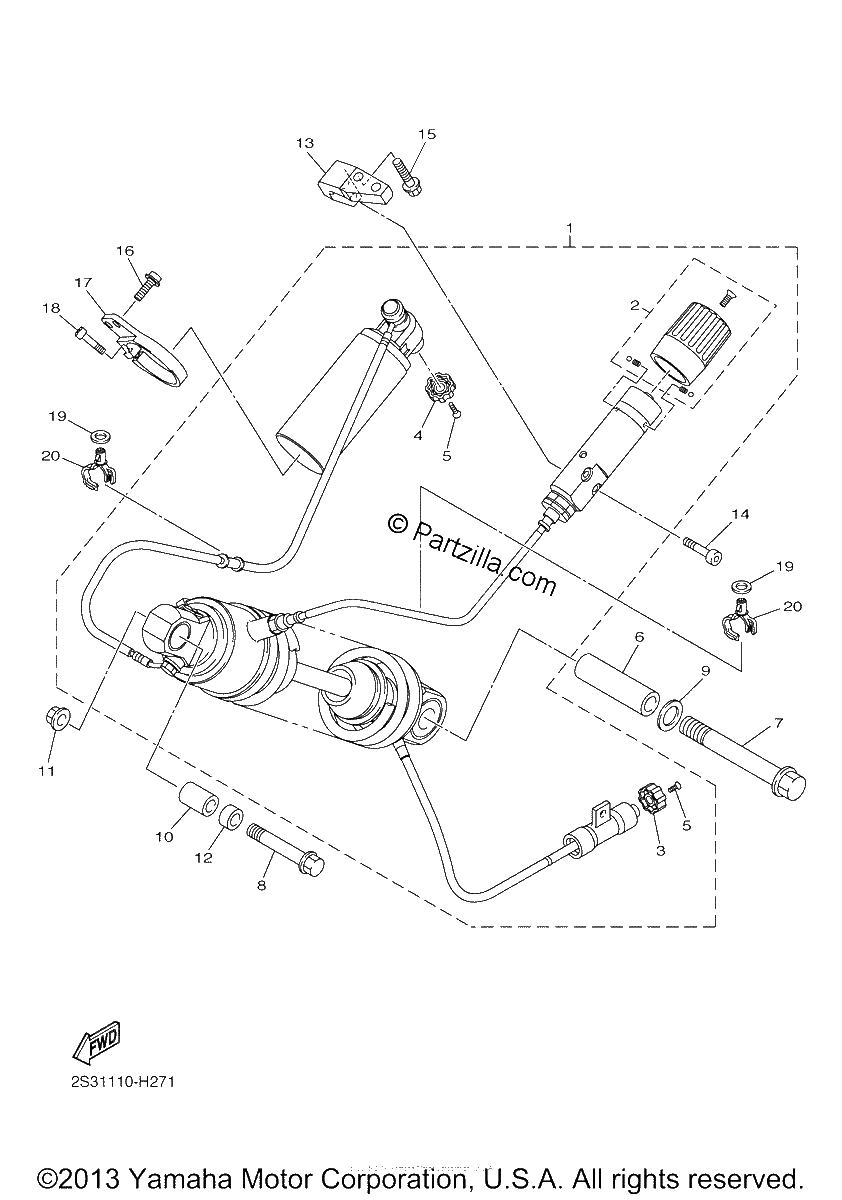

Diagrama de REAR SUSPENSION

Repuestos

#1
2S3-22210-00-00
SHOCK ABSORBER ASSY,
$1573.74¢786 869
1
#2
2S3-28130-09-00
REPAIR KIT
$29.38¢14 688
1
#3
5JW-2319W-00-00
CAP
$11.46¢5 731
1
#4
5EA-22464-00-00
KNOB (COMP)
$4.40¢2 200
1
#5
98680-03008-00
SCREW, OVAL HEAD
$0.36¢181
1
#6
90387-14013-00
Collar
$19.31¢9 656
1
#7
90105-14006-00
BOLT, FLANGE (replaces 90105-14004-00)
No Disponible
1
#8
90105-10402-00
BOLT,WASHER BASED
$9.24¢4 619
1
#9
90201-16022-00
WASHER, plate
$9.91¢4 956
1
#10
90387-1012A-00
COLLAR
$21.18¢10 588
1
#11
95607-10200-00
NUT,SELF-LOCKING
$3.96¢1 981
1
#12
90380-10005-00
BUSH, SOLID
$8.56¢4 281
1
#13
2S3-27332-00-00
Bracket
$67.14¢33 569
1
#14
91314-05025-00
BOLT, HEXAGON SOCK
$0.93¢463
1
#15
90105-06148-00
Bolt, Flange
$7.41¢3 706
1
#16
90110-06390-00
BOLT, HEXAGON SOCKET HEAD
$2.95¢1 475
1
#17
2S3-27333-00-00
BRKT
$88.75¢44 375
1
#18
91314-05020-00
BOLT, HEXAGON SOCKET HEAD
$1.90¢950
1
#19
90201-06105-00
WASHER, plate
$1.23¢613
1
#20
90464-18002-00
CLAMP
$8.25¢4 125
1
