FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

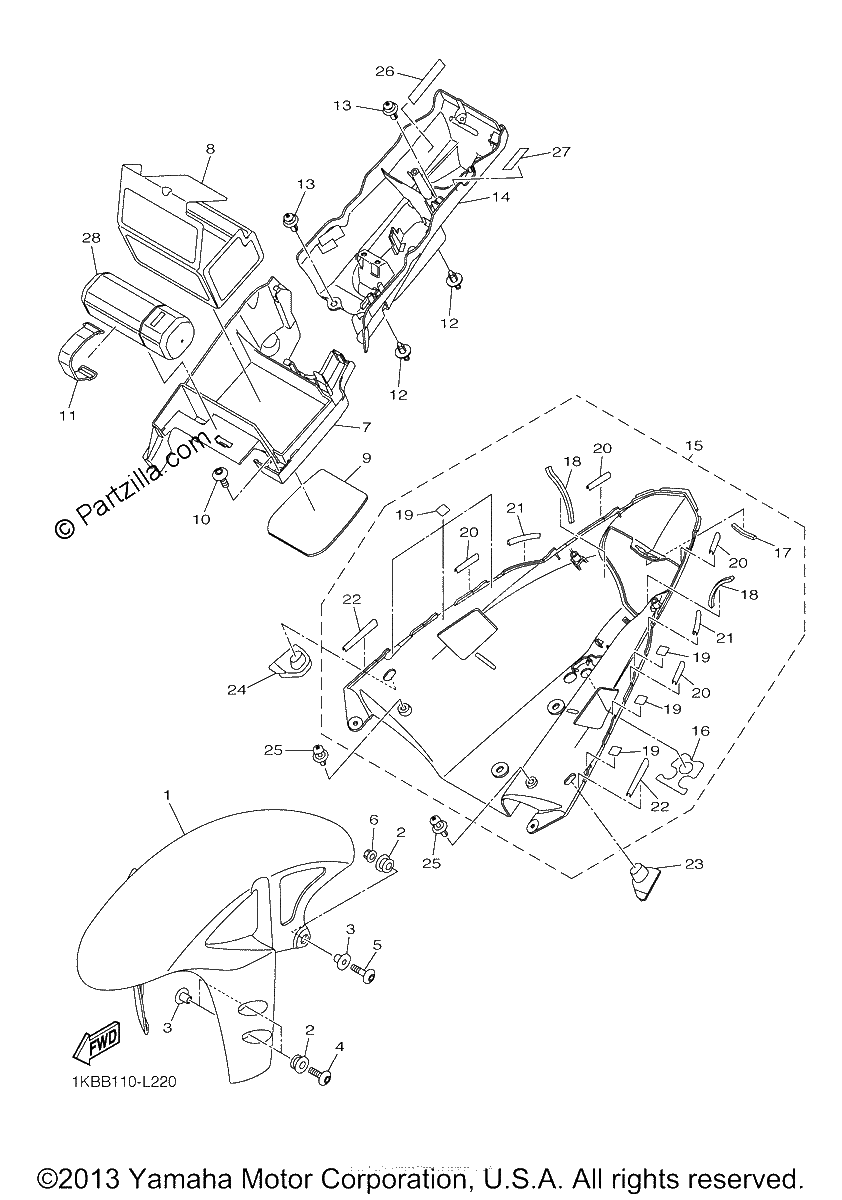

Diagrama de FENDER

Repuestos

#0
14B-21511-00-P2
FENDER, FRONT | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$230.52¢115 259
1
#0
14B-21511-00-P5
FENDER, FRONT
$256.76¢128 380
1
#0
14B-21600-00-P6
REAR FENDER ASSY. | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$262.57¢131 284
1
#0
14B-21600-00-P7
REAR FENDER ASSY. | UR FOR MNM3
$243.64¢121 820
1
#1
14B-21511-00-P0
FENDER, FRONT | Use for Color Black Metallic X ( SMX / 0903 )
$199.24¢99 619
1
#2
90480-12072-00
GROMMET
$7.30¢3 651
1
#3
90387-06159-00
Collar
$6.99¢3 496
1
#4
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#6
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#7
14B-8212B-00-00
BOX, BATTERY 1
$51.58¢25 789
1
#8
1KB-82122-00-00
SEAT, BATTERY
$121.13¢60 565
1
#9
14B-82176-20-00
DAMPER
$16.94¢8 470
1
#10
90149-06302-00
SCREW
$4.70¢2 352
1
#11
5JJ-82131-00-00
BAND, BATTERY
$12.60¢6 302
1
#12
90269-07077-00
RIVET
$7.59¢3 795
1
#13
90269-07012-00
RIVET
$2.99¢1 495
1
#14
14B-8212C-00-00
BOX, BATTERY 2
$19.42¢9 712
1
#15
14B-21600-00-P2
REAR FENDER ASSY. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$243.64¢121 820
1
#16
14B-21669-00-00
SEAL
$7.64¢3 818
1
#17
4GY-2174X-00-00
DAMPER
$7.31¢3 657
1
#18
3CV-28372-00-00
DAMPER
$4.23¢2 116
1
#19
4C8-21735-00-00
SEAL 2
$7.31¢3 657
1
#20
5VY-21732-00-00
SEAL 1
$7.38¢3 691
1
#21
5PW-21732-00-00
SEAL 1
$4.23¢2 116
1
#22
14B-21732-00-00
SEAL 1
$4.66¢2 329
1
#23
14B-21639-00-00
DAMPER 2
$68.72¢34 362
1
#24
14B-21649-00-00
DAMPER
$68.72¢34 362
1
#25
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#26
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#27
4BR-24877-A0-00
LABEL, CAUTION
$15.02¢7 510
1
#28
14B-28100-00-00
TOOL KIT
$123.31¢61 657
1
