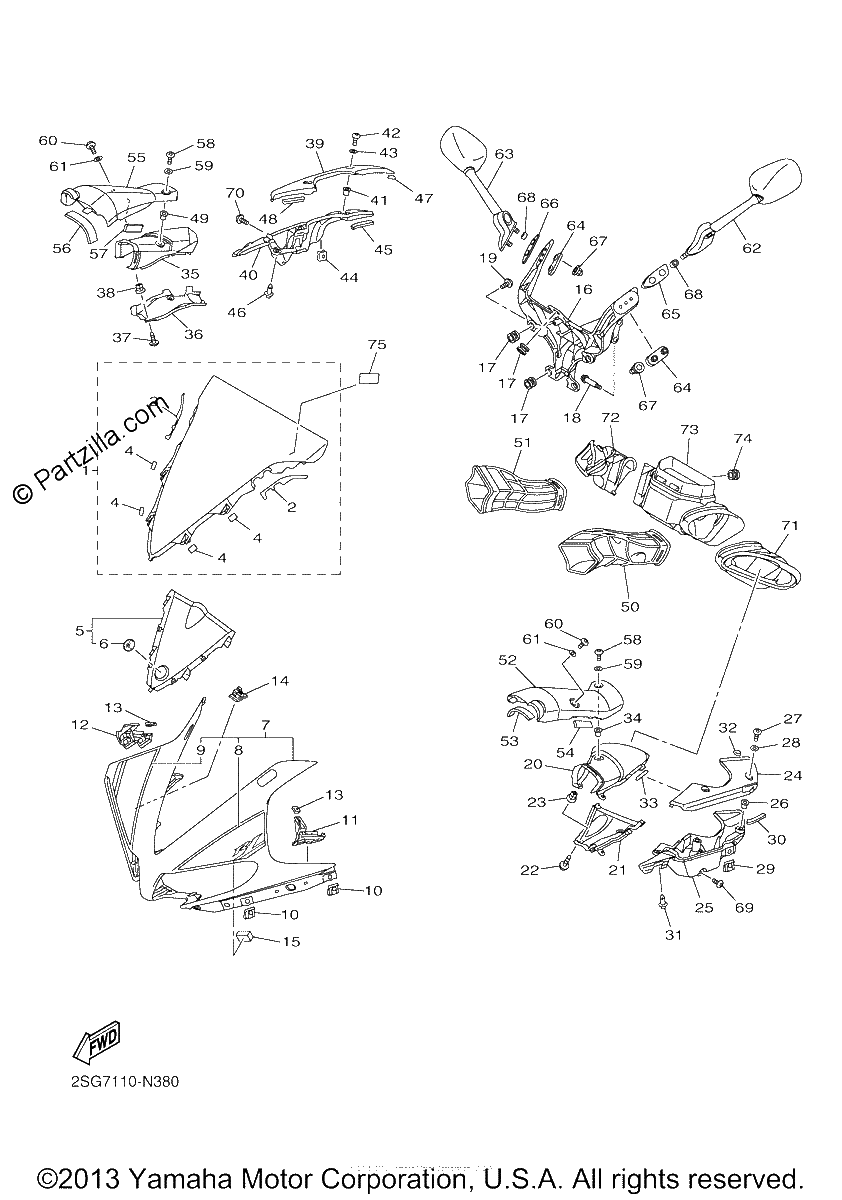

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#0
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$200.41¢100 206
#0
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.86¢51 431
#0
BODY, FRONT UPPER 1 | UR FOR MNM3
$569.41¢284 706
#0
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$172.69¢86 344
#0
BODY, FRONT UPPER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$297.90¢148 950
#0
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$111.94¢55 969
#0
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$134.60¢67 300
#1
WINDSCREEN ASSY
$182.25¢91 125
#2
SEAL 1
$17.02¢8 513
#3
SEAL 2
$17.02¢8 513
#4
SEAL 2
$7.95¢3 975
#5
PANEL ASSY
$65.25¢32 625
#6
TUNING FORK MARK
$18.90¢9 450
#7
BODY, FRONT UPPER 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$474.47¢237 237
#8
GRAPHIC, 12
$39.16¢19 581
#9
GRAPHIC, 13
$29.28¢14 638
#10
PLATE, SPRING
$7.41¢3 706
#11
STAY, SIDE 1
$8.64¢4 319
#12
STAY, SIDE 1
$8.97¢4 488
#13
NUT, SPRING
$2.82¢1 412
#14
CLAMP
$18.19¢9 094
#15
DAMPER, PLATE
$2.10¢1 050
#16
STAY 1
$265.74¢132 869
#17
DAMPER
$7.63¢3 813
#18
BOLT, FLANGE
$7.52¢3 762
#19
SCREW, ROUND TAPPING
$7.43¢3 713
#20
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$190.04¢95 019
#21
DUCT 3
$14.65¢7 325
#22
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#23
GROMMET
$7.48¢3 738
#24
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$168.13¢84 063
#25
BOX 3
$25.45¢12 725
#26
NUT
$6.78¢3 388
#27
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#28
WASHER, PLATE
$7.66¢3 831
#29
PLATE, SPRING
$7.41¢3 706
#30
SEAL 4
$9.60¢4 800
#31
RIVET
$8.25¢4 125
#32
DAMPER, PLATE
$7.71¢3 856
#33
DAMPER, PLATE
$7.79¢3 894
#34
NUT
$6.78¢3 388
#35
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$190.07¢95 038
#36
DUCT 4
$14.65¢7 325
#37
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#38
GROMMET
$7.48¢3 738
#39
DAMPER, 3
$7.95¢3 975
#39
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$141.29¢70 644
#40
BOX 4
$14.65¢7 325
#41
NUT
$6.78¢3 388
#42
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#43
WASHER, PLATE
$7.66¢3 831
#44
PLATE, SPRING
$7.41¢3 706
#45
SEAL 4
$9.60¢4 800
#46
RIVET
$8.25¢4 125
#47
DAMPER, PLATE
$7.71¢3 856
#48
DAMPER, PLATE
$7.79¢3 894
#49
NUT
$6.78¢3 388
#50
DUCT 5
$36.88¢18 438
#51
DUCT 6
$34.40¢17 200
#52
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$200.41¢100 206
#54
SEAL 1
$10.51¢5 256
#55
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$226.95¢113 475
#56
DAMPER, 3
$7.95¢3 975
#57
SEAL 1
$10.51¢5 256
#58
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#59
WASHER, PLATE
$7.66¢3 831
#60
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#61
WASHER, PLATE
$7.66¢3 831
#62
REAR VIEW MIRROR ASSY (LEFT)
$155.65¢77 825
#63
REAR VIEW MIRROR ASSY (RIGHT)
$155.65¢77 825
#64
PLATE, MIRROR FITTING 1
$7.65¢3 825
#65
BASE, MIRROR (LEFT)
$5.66¢2 831
#66
BASE, MIRROR (RIGHT)
$5.66¢2 831
#67
NUT, CROWN
$4.76¢2 381
#68
COLLAR (J45)
$5.93¢2 963
#69
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#70
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#71
BOX, SIDE 1
$45.69¢22 844
#72
BOX, SIDE 2
$58.38¢29 188
#73
BOX, FRONT
$111.54¢55 769
#74
GROMMET
$4.63¢2 313
#75
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
