CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

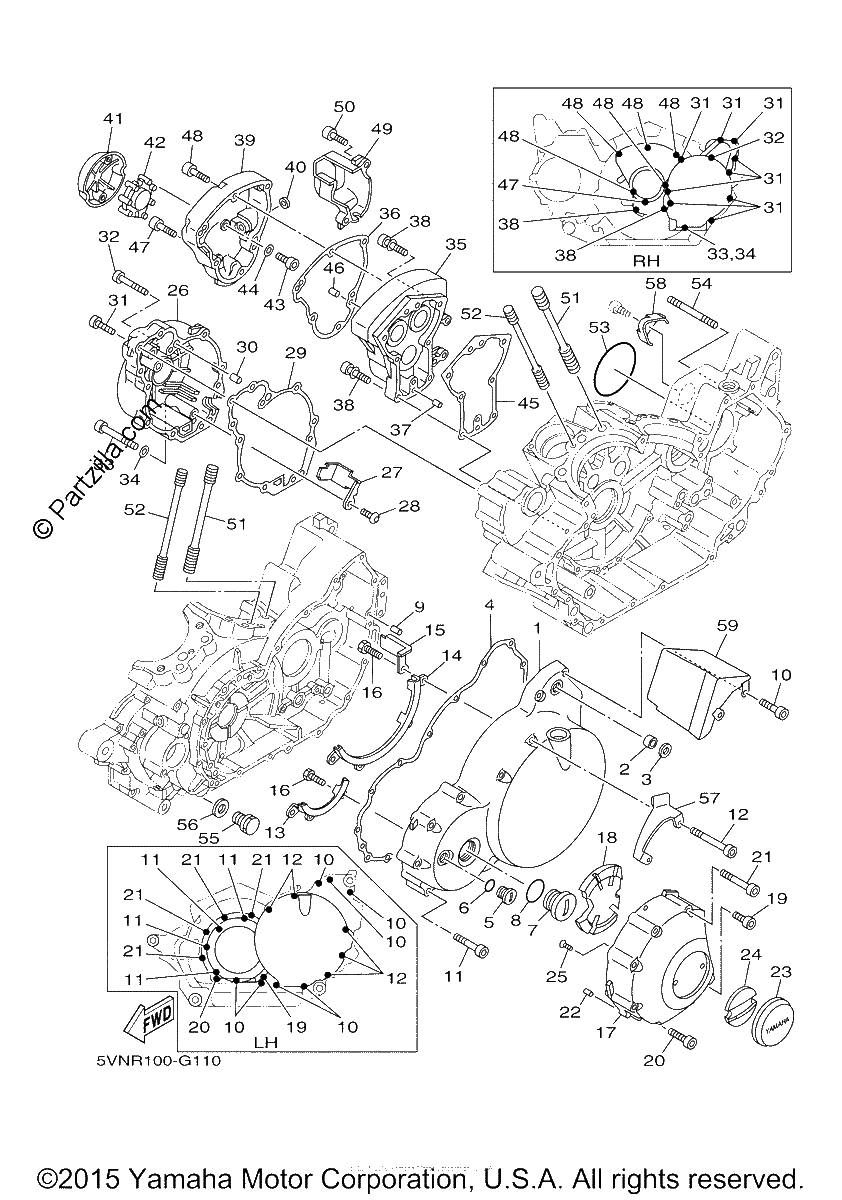

Diagrama de CRANKCASE COVER 1

Repuestos

#1
4WM-15411-00-00
COVER, CRANKCASE 1
$531.74¢265 869
1
#2
93317-11287-00
BEARING
$22.45¢11 224
1
#3
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#4
5VN-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN CLUTCH PLATE KIT
$25.58¢12 788
1
#5
90340-14117-00
PLUG, STRAIGHT SCREW
$12.72¢6 360
1
#6
93210-14369-00
O-Ring
$6.36¢3 180
1
#7
90340-32080-00
PLUG,STRAIGHT SCRW
$29.19¢14 593
1
#8
93210-32172-00
O-Ring
$6.32¢3 162
1
#9
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#10
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#11
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#12
91314-06070-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#13
4WM-15142-00-00
GUIDE 1
No Disponible
1
#14
4WM-15143-00-00
GUIDE
$25.21¢12 604
1
#15
5YU-15484-00-00
CLAMP 2
$16.97¢8 487
1
#16
90149-06187-00
SCREW
$1.13¢564
1
#17
5PX-15423-00-00
COVER 2
$148.49¢74 244
1
#18
4WM-15326-00-00
DAMPER 2
$31.31¢15 657
1
#19
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#20
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#21
91314-06060-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#22
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#23
4WM-15425-00-00
COVER, GENERATOR 2
$81.17¢40 583
1
#24
4WM-15316-00-00
DAMPER 1
$6.99¢3 496
1
#25
98707-05012-00
SCREW, COUNTERSUNK
$1.35¢673
1
#26
5PX-15421-00-00
COVER, CRANKCASE 2
$207.45¢103 724
1
#27
5VN-15377-00-00
GUIDE, INLET
$16.47¢8 234
1
#28
90149-06187-00
SCREW
$1.13¢564
1
#29
5PX-15461-02-00
GASKET, CRANKCASE COVER 2
$16.47¢8 234
1
#30
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#31
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#32
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#33
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#34
90430-06014-00
GASKET
$7.59¢3 795
1
#35
5PX-15431-10-00
COVER, CRANKCASE 3
$146.79¢73 393
1
#36
5YU-15462-01-00
GASKET, CRANKCASE COVER 3
$12.48¢6 239
1
#37
93606-10227-00
PIN, DOWEL
$1.66¢828
1
#38
90110-06300-00
BOLT, HEXAGON SOCKET HEAD
$3.24¢1 621
1
#39
4WM-12278-01-00
COVER, DECOMP.
$201.89¢100 947
1
#39
93210-750A1-00
O-RING
$22.59¢11 293
1
#40
93109-08803-00
OIL SEAL
$8.16¢4 082
1
#41
4WM-15427-00-00
COVER, CAP 2
$106.60¢53 302
1
#42
4WM-15335-00-00
DAMPER 3
$28.38¢14 191
1
#43
91317-06014-00
BOLT
$7.72¢3 858
1
#44
90430-06014-00
GASKET
$7.59¢3 795
1
#45
5PX-12286-00-00
GASKET, DECOMPRESSION
$20.78¢10 390
1
#46
93606-10227-00
PIN, DOWEL
$1.66¢828
1
#47
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#48
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#49
5MB-12275-10-00
COVER, DECOMP LEVER
$56.58¢28 290
1
#50
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#51
90116-12240-00
BOLT, STUD
$15.59¢7 797
1
#52
90116-10344-00
BOLT, STUD
$9.20¢4 600
1
#54
90116-08065-00
BOLT, STUD
$8.85¢4 427
1
#55
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#56
214-11198-01-00
GASKET
$2.97¢1 483
1
#57
4WM-15441-00-00
HOLDER, CLUTCH CABLE
$32.20¢16 100
1
#58
5PX-15413-00-00
COVER
$19.95¢9 976
1
#59
5VN-15470-00-00
AIR DUCT ASSY
$84.23¢42 113
1
