CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

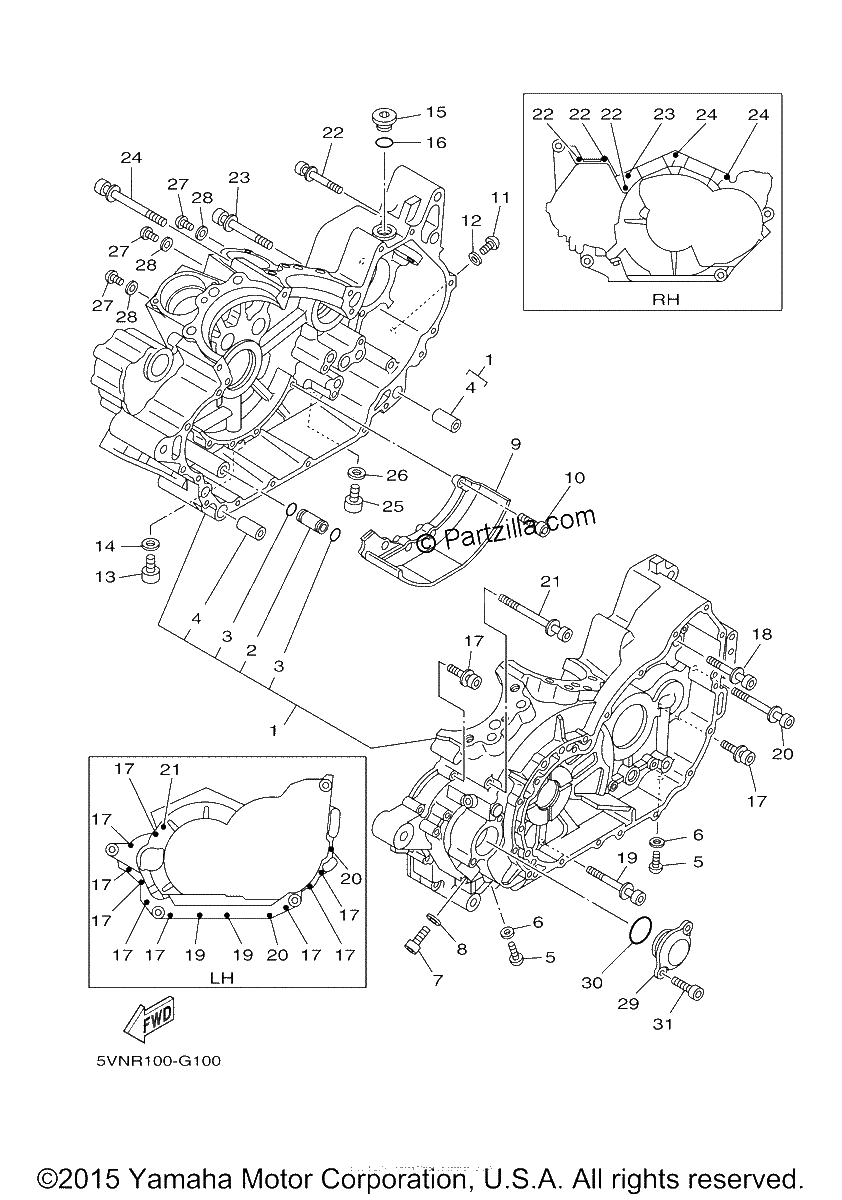

Diagrama de CRANKCASE

Repuestos

#1
5VN-15100-20-00
CRANKCASE ASSY
No Disponible
1
#2
4WM-15138-00-00
NOZZLE 1
$6.53¢3 266
1
#3
93210-10001-00
O-RING
$1.41¢707
1
#4
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#5
90149-05010-00
SCREW
$7.07¢3 536
1
#6
90430-05126-00
GASKET
$6.45¢3 226
1
#7
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#8
90430-08119-00
GASKET
$6.36¢3 180
1
#9
4WM-15123-00-00
PLATE, BAFFLE 1
$64.68¢32 338
1
#10
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#11
90149-05010-00
SCREW
$7.07¢3 536
1
#12
90430-05126-00
GASKET
$6.45¢3 226
1
#13
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#14
90430-08119-00
GASKET
$6.36¢3 180
1
#15
5PX-15189-00-00
PLUG
$28.37¢14 185
1
#16
93210-20003-00
O-RING
$6.88¢3 439
1
#17
90110-06299-00
BOLT, HEXAGON SOCKET HEAD
$6.05¢3 024
1
#18
90110-06298-00
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
1
#19
90110-06313-00
BOLT, HEXAGON SOCKET HEAD
$6.03¢3 013
1
#20
90110-06314-00
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
1
#21
90110-06315-00
BOLT, HEXAGON SOCKET HEAD
$6.14¢3 070
1
#22
90110-06298-00
BOLT, HEXAGON SOCKET HEAD
$6.36¢3 180
1
#23
90110-08095-00
BOLT, HEXAGON SOCKET HEAD
$6.53¢3 266
1
#24
90110-08098-00
BOLT, HEXAGON SOCKET HEAD
$8.63¢4 313
1
#25
91314-08014-00
BOLT,SOCKET
$6.06¢3 030
1
#26
90430-08119-00
GASKET
$6.36¢3 180
1
#27
92014-05010-00
BOLT, BUTTON HEAD
$7.57¢3 783
1
#28
90430-05126-00
GASKET
$6.45¢3 226
1
#29
5VN-15417-00-00
COVER, CAP
$22.74¢11 368
1
#30
93210-36769-00
O-RING
$10.80¢5 399
1
#31
90110-06310-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 483
1
