INTAKE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

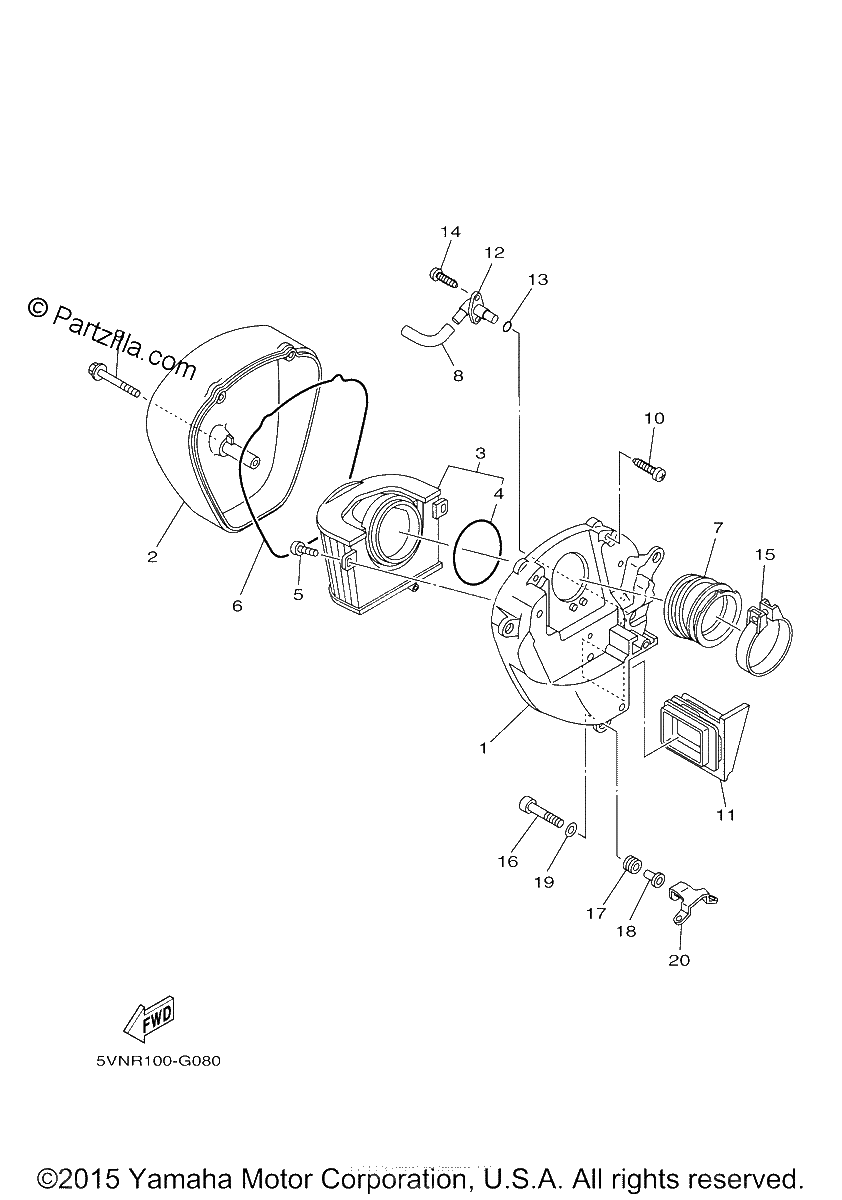

Diagrama de INTAKE 2

Repuestos

#1
5VN-14411-00-00
CASE, AIR CLEANER 1
$97.15¢48 576
1
#2
4WM-14421-00-00
CASE, AIR CLEANER 2
No Disponible
1
#3
5VN-14451-10-00
ELEMENT, AIR CLEANER
$29.45¢14 726
1
#4
93210-77040-00
O-RING
$26.25¢13 127
1
#5
98980-06014-00
SCREW, BIND
$6.38¢3 191
1
#6
51Y-14462-00-00
SEAL (replaces 5XT-14452-00-00)
$18.69¢9 344
1
#7
5VN-14453-20-00
JOINT, AIR CLEANER 1
$48.10¢24 052
1
#8
5VN-1443E-00-00
PIPE, DRAIN
$12.07¢6 038
1
#9
90149-06331-00
SCREW
$5.24¢2 622
1
#10
97707-60540-00
SCREW, TAPPING
$7.84¢3 922
1
#11
5VN-14437-10-00
DUCT
$31.68¢15 841
1
#12
5VN-14485-00-00
PIPE, JOINT
$19.00¢9 499
1
#13
93210-13361-00
O-RING
$4.51¢2 254
1
#14
97707-50525-00
SCREW, TAPPING
$6.76¢3 381
1
#15
90450-67002-00
HOSE CLAMP ASSY
$11.43¢5 716
1
#16
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#17
90480-14023-00
GROMMET
$5.35¢2 674
1
#18
90387-07391-00
COLLAR
$8.49¢4 244
1
#19
90201-06062-00
WASHER, PLATE
$7.77¢3 887
1
#20
5VN-14498-10-00
STAY 1
$13.64¢6 819
1
