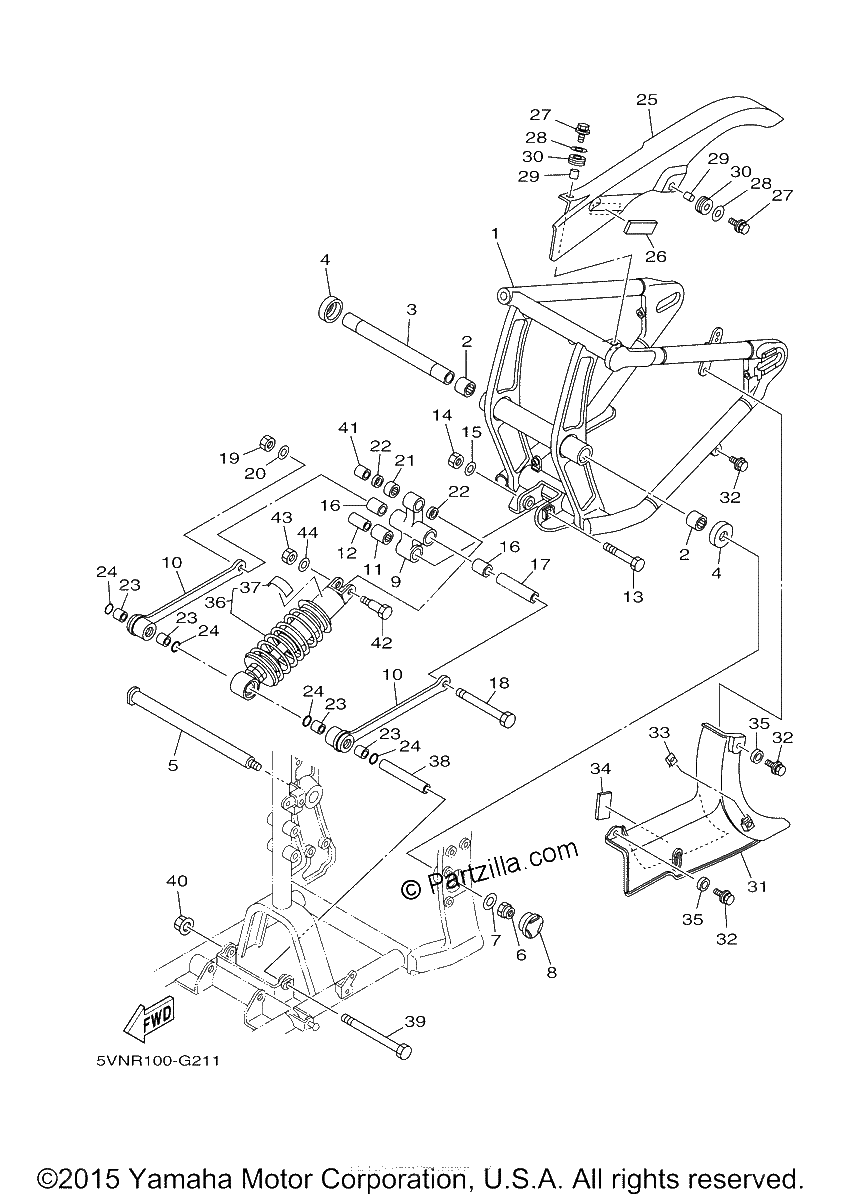

REAR ARM SUSPENSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$907.49¢453 744
#2
BEARING
$52.00¢26 000
#3
BUSH
$113.69¢56 844
#4
COVER, THRUST 1
$36.88¢18 438
#5
AXLE, WHEEL
$107.97¢53 988
#6
NUT, SELF-LOCKING
$18.90¢9 450
#7
WASHER, PLATE
$2.91¢1 456
#8
COVER
$13.20¢6 600
#9
ARM, RELAY
$262.53¢131 263
#10
ARM 1
$159.82¢79 913
#11
BEARING
$48.22¢24 112
#12
COLLAR
$19.82¢9 913
#13
BOLT
$8.15¢4 075
#14
NUT, U
$4.88¢2 438
#15
WASHER, PLATE
$6.44¢3 219
#16
BEARING
$43.64¢21 819
#17
COLLAR
$24.56¢12 281
#18
BOLT
$11.34¢5 669
#19
NUT, U
$4.88¢2 438
#20
WASHER, PLATE
$6.14¢3 069
#21
BEARING
$37.88¢18 938
#22
OIL SEAL
$8.03¢4 013
#23
BUSH, BIMETAL FORMED
$13.99¢6 994
#24
O-RING
$5.41¢2 706
#25
CASE, CHAIN
$284.31¢142 156
#26
DAMPER, CHAIN CASE
$1.80¢900
#27
BOLT, FLANGE (SMALL HEAD)
$5.34¢2 669
#28
WASHER, PLATE
$7.34¢3 669
#29
COLLAR (J45)
$5.93¢2 963
#30
GROMMET
$2.20¢1 100
#31
CASE, CHAIN 2
$28.03¢14 013
#32
BOLT, WITH WASHER
$8.45¢4 225
#33
NUT, SPRING
$7.26¢3 631
#34
DAMPER
$7.60¢3 800
#35
COLLAR
$7.91¢3 956
#36
SHOCK ABSORBER ASSY, REAR
No Disponible
#37
LABEL, WARNING
$14.81¢7 406
#38
COLLAR
$31.90¢15 950
#39
BOLT
$11.19¢5 594
#40
NUT, SELF-LOCKING
$4.55¢2 275
#41
COLLAR
$13.27¢6 637
#42
BOLT
$10.55¢5 275
#43
NUT, U
$7.35¢3 675
#44
WASHER, plate
$4.25¢2 125
