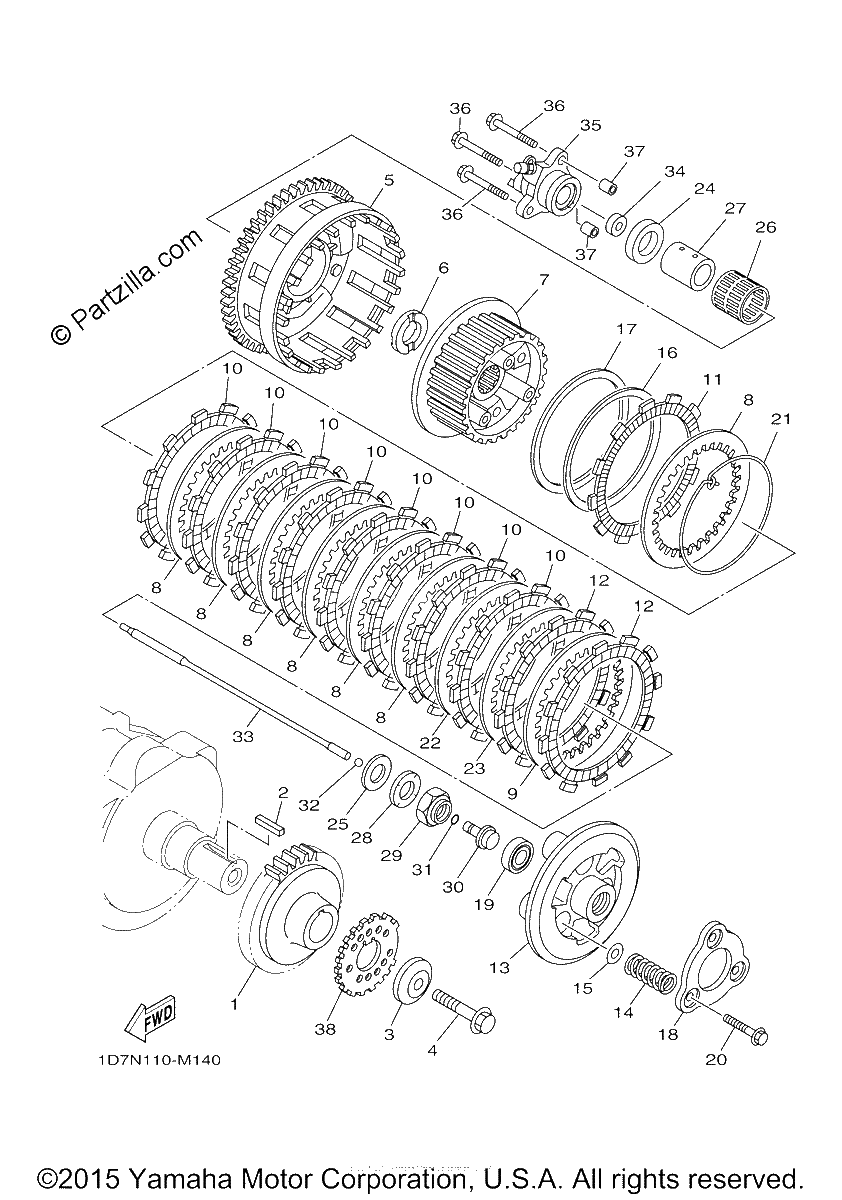

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PLATE,CLUTCH 1
$22.11¢11 057
#0
PLATE, CLUTCH 2
$12.45¢6 227
#0
PLATE, CLUTCH 1
$26.62¢13 311
#1
GEAR, PRIMARY DRIVE
$249.83¢124 913
#2
KEY, FEATHER
$7.64¢3 818
#3
SPACER 1
$32.03¢16 014
#4
BOLT, FLANGE
$20.25¢10 126
#5
PRIMARY DRIVEN GEAR COMP.
$580.74¢290 369
#6
PLATE, THRUST 1
$34.79¢17 394
#7
BOSS, CLUTCH
$162.62¢81 311
#8
PLATE, CLUTCH 2
$12.45¢6 227
#9
PLATE, CLUTCH 2
$15.80¢7 900
#10
PLATE, FRICTION
$22.76¢11 379
#11
PLATE, FRICTION 2
$23.43¢11 713
#12
PLATE, FRICTION 2
$25.73¢12 863
#13
PLATE, PRESSURE 1
$157.39¢78 695
#14
SPRING, COMPRESSION
$12.67¢6 336
#15
PLATE, SEAT
$5.09¢2 547
#16
SPRING.,CUSHION
$63.84¢31 918
#17
PLATE, SEAT
$24.91¢12 455
#18
PLATE, PRESSURE 2
$16.08¢8 038
#19
BEARING
$30.60¢15 301
#20
SCREW, SPRING
$1.68¢839
#21
RING SET
$24.07¢12 035
#22
PLATE,CLUTCH 1
$22.11¢11 057
#23
PLATE, CLUTCH 1
$26.62¢13 311
#24
PLATE, THRUST 2
$18.07¢9 033
#25
WASHER, PLATE
$7.54¢3 772
#26
BEARING
$34.05¢17 026
#27
COLLAR
$38.02¢19 010
#28
WASHER, CONICAL SPRING
$11.24¢5 618
#29
NUT
$19.19¢9 597
#30
ROD,PUSH 1
$28.99¢14 496
#31
O-Ring
$7.30¢3 651
#32
BALL
$6.75¢3 375
#33
ROD, PUSH 2
$62.07¢31 033
#34
OIL SEAL
$6.22¢3 111
#35
PUSH LEVER COMP.
$251.47¢125 735
#36
BOLT, FLANGE
$3.09¢1 547
#37
PIN, DOWEL
$5.75¢2 875
#38
ROTOR
$13.56¢6 779
