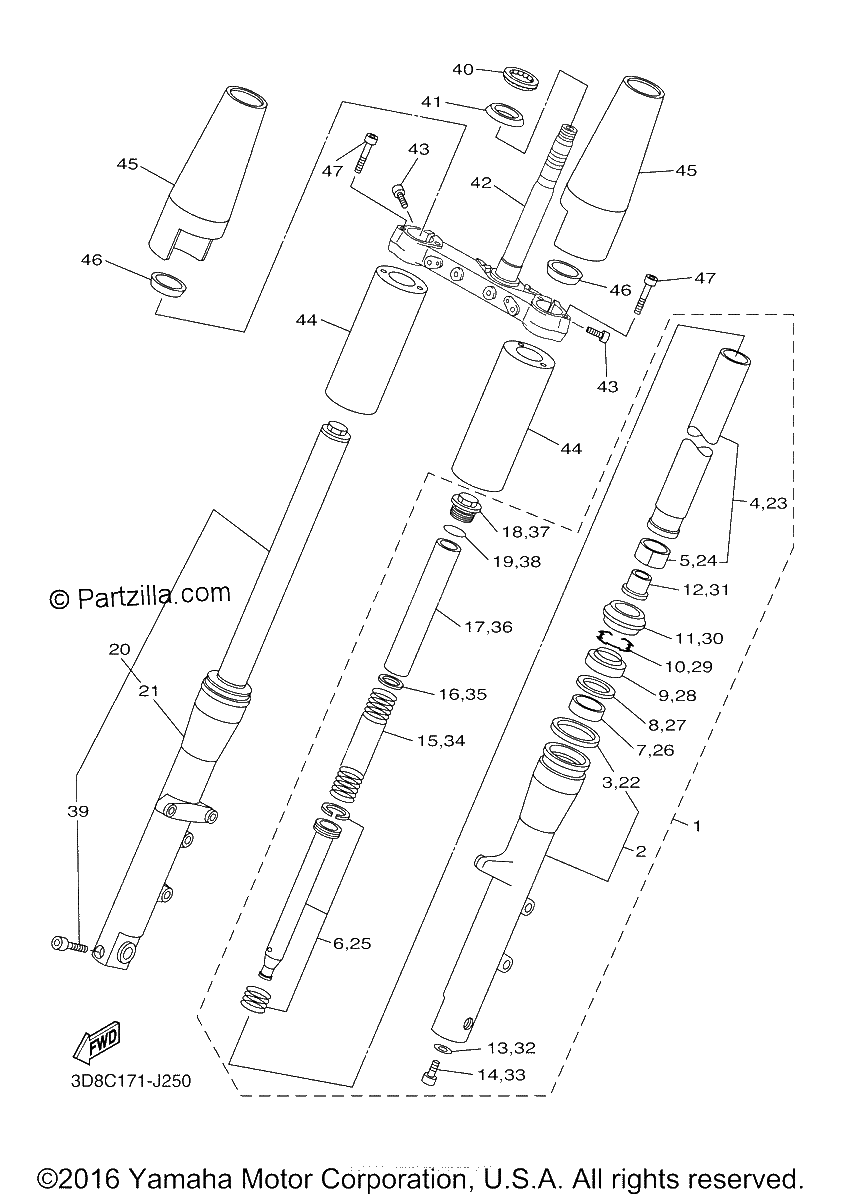

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$647.44¢323 719
#2
TUBE, OUTER (L.H)
$352.85¢176 427
#3
GUIDE, BOOT
$7.15¢3 577
#4
INNER TUBE COMP. 1
$278.60¢139 300
#5
PISTON,FRONT FORK
$21.36¢10 678
#6
CYLINDER COMP., FRONT FORK
$181.90¢90 948
#7
METAL,SLIDE 1
$32.08¢16 042
#8
WASHER, OIL SEAL
$24.18¢12 092
#9
OIL SEAL
$26.59¢13 294
#10
RING, SNAP
$7.24¢3 622
#11
SEAL, DUST
$21.36¢10 678
#12
SPINDLE, TAPER
$36.17¢18 084
#13
GASKET | (KYB)
$15.72¢7 860
#14
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#15
SPRING, FRONT FORK
$83.41¢41 705
#16
WASHER, SPRING UPPER
$7.28¢3 640
#17
SPACER
$19.29¢9 643
#18
BOLT, cap
$46.98¢23 489
#19
O-Ring
$7.04¢3 519
#20
FRONT FORK ASSY (R.H)
$647.44¢323 719
#21
TUBE, OUTER
$354.60¢177 301
#22
GUIDE, BOOT
$7.15¢3 577
#23
INNER TUBE COMP. 1
$278.60¢139 300
#24
PISTON,FRONT FORK
$21.36¢10 678
#25
CYLINDER COMP., FRONT FORK
$181.90¢90 948
#26
METAL,SLIDE 1
$32.08¢16 042
#27
WASHER, OIL SEAL
$24.18¢12 092
#28
OIL SEAL
$26.59¢13 294
#29
RING, SNAP
$7.24¢3 622
#30
SEAL, DUST
$21.36¢10 678
#31
SPINDLE, TAPER
$36.17¢18 084
#32
GASKET | (KYB)
$15.72¢7 860
#33
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#34
SPRING, FRONT FORK
$83.41¢41 705
#35
WASHER, SPRING UPPER
$7.28¢3 640
#36
SPACER
$19.29¢9 643
#37
BOLT, cap
$46.98¢23 489
#38
O-Ring
$7.04¢3 519
#39
BOLT (3JP)
$5.75¢2 875
#40
BEARING
$60.89¢30 446
#41
SEAL, STEERING
$23.48¢11 742
#42
UNDER BRACKET COMP.
$472.68¢236 342
#43
BOLT, HEXAGON SOCKET HEAD
$7.57¢3 783
#44
COVER, UNDER 1
$252.67¢126 333
#45
COVER, UPPER 1
$307.79¢153 893
#46
GASKET
$14.20¢7 101
#47
BOLT, SPECIAL
$5.30¢2 651
