STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

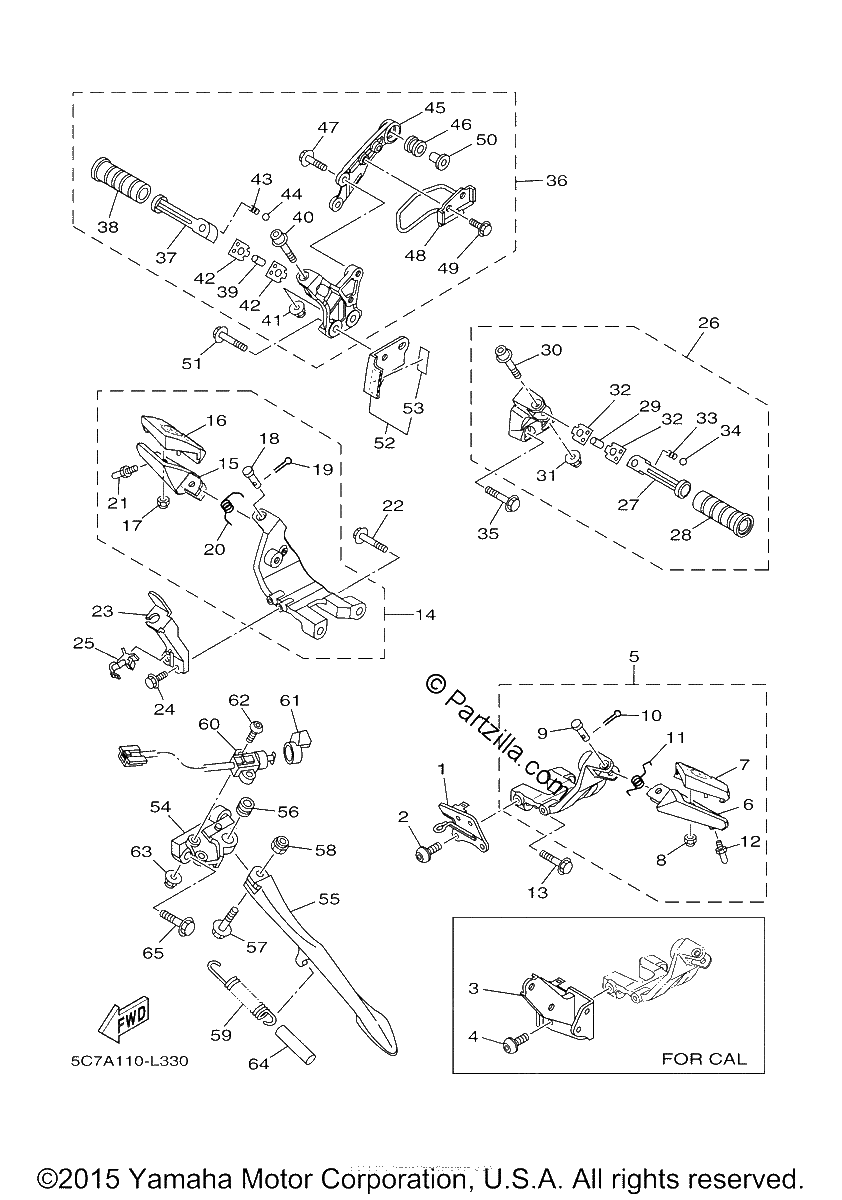

Diagrama de STAND FOOTREST

Repuestos

#1
5C7-2134L-00-00
BRACKET, HORN 2 | FOR U49
$43.79¢21 896
1
#2
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#3
5C7-2742L-00-00
BRACKET 5 | FOR CAL
$319.91¢159 954
1
#4
90149-06302-00
SCREW
$4.70¢2 352
1
#5
5C7-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$512.55¢256 277
1
#6
5C7-27451-00-00
FOOTREST
$94.59¢47 294
1
#7
5C7-27413-00-00
COVER, FOOTREST
$39.15¢19 573
1
#8
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#9
91701-08035-00
PIN
$6.43¢3 214
1
#10
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#11
90508-18080-00
SPRING, TORSION
$6.52¢3 260
1
#12
5C7-27435-09-00
BOLT
$18.84¢9 418
1
#13
95024-10045-00
BOLT, FLANGE
$7.44¢3 720
1
#14
5C7-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$522.09¢261 044
1
#15
5C7-27461-00-00
FOOTREST
$133.43¢66 717
1
#16
5C7-27423-00-00
COVER, FOOTREST
$39.15¢19 573
1
#17
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#18
91701-08035-00
PIN
$6.43¢3 214
1
#19
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#20
90508-18087-00
SPRING, TORSION
$6.38¢3 191
1
#21
5C7-27435-09-00
BOLT
$18.84¢9 418
1
#22
95024-10045-00
BOLT, FLANGE
$7.44¢3 720
1
#23
5C7-2741L-00-00
BRACKET 4
$54.79¢27 393
1
#24
95027-06012-00
BOLT, FLANGE
$3.58¢1 788
1
#25
90464-08189-00
CLAMP
$2.50¢1 248
1
#26
5C7-27430-00-00
REAR FOOTREST ASSY 1
$227.95¢113 976
1
#27
5C4-27431-00-00
FOOTREST, REAR 1
$19.01¢9 505
1
#28
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#29
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#30
90109-06016-00
BOLT
$8.50¢4 249
1
#31
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#32
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#33
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#34
93501-04011-00
BALL
$6.87¢3 433
1
#35
90105-10293-00
BOLT, FLANGE
$6.09¢3 048
1
#36
5C7-27440-00-00
REAR FOOTREST ASSY 2
$511.24¢255 622
1
#37
1D7-27441-00-00
FOOTREST, REAR 2
$32.07¢16 037
1
#38
4WM-27433-00-00
COVER, REAR FOOTREST
$19.39¢9 695
1
#39
5C7-2174X-00-00
DAMPER
$2.91¢1 455
1
#39
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#40
90109-06016-00
BOLT
$8.50¢4 249
1
#41
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#42
1D7-27437-00-00
WASHER, SPECIAL
$4.23¢2 116
1
#43
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#44
93501-04011-00
BALL
$6.87¢3 433
1
#45
5C7-21446-00-00
STAY, MUFFLER 2
$160.56¢80 282
1
#46
2C0-14747-00-00
DAMPER, MUFFLER
$7.68¢3 841
1
#47
95024-08020-00
BOLT,FLANGE (2UJ)
$7.30¢3 651
1
#48
5C7-27267-00-00
GUIDE, WIRE
$55.80¢27 899
1
#49
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#50
90387-08021-00
COLLAR
$9.33¢4 663
1
#51
90105-10154-00
BOLT, FLANGE
$5.00¢2 501
1
#52
5C7-2171G-00-00
BRACKET, STOPPER STEEERING
$32.34¢16 169
1
#54
5C7-27321-00-00
BRACKET, SIDE STAND
$213.88¢106 938
1
#55
1D7-27311-10-00
STAND, SIDE
$179.19¢89 596
1
#56
90387-12031-00
COLLAR
$12.99¢6 498
1
#57
90105-12018-00
BOLT, FLANGE
$10.99¢5 497
1
#58
90185-12119-00
NUT, SELF-LOCKING
$9.46¢4 732
1
#59
90506-35005-00
SPRING, TENSION
$15.32¢7 659
1
#60
3D8-82566-B0-00
SWITCH, SIDE STAND
$106.40¢53 199
1
#61
4WM-8252U-00-00
COVER
$16.08¢8 038
1
#62
92017-05025-00
BOLT, BUTTON HEAD
$5.96¢2 978
1
#63
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#64
90445-22327-00
HOSE
$6.97¢3 484
1
#65
90105-10158-00
BOLT, FLANGE
$8.39¢4 198
1
