SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

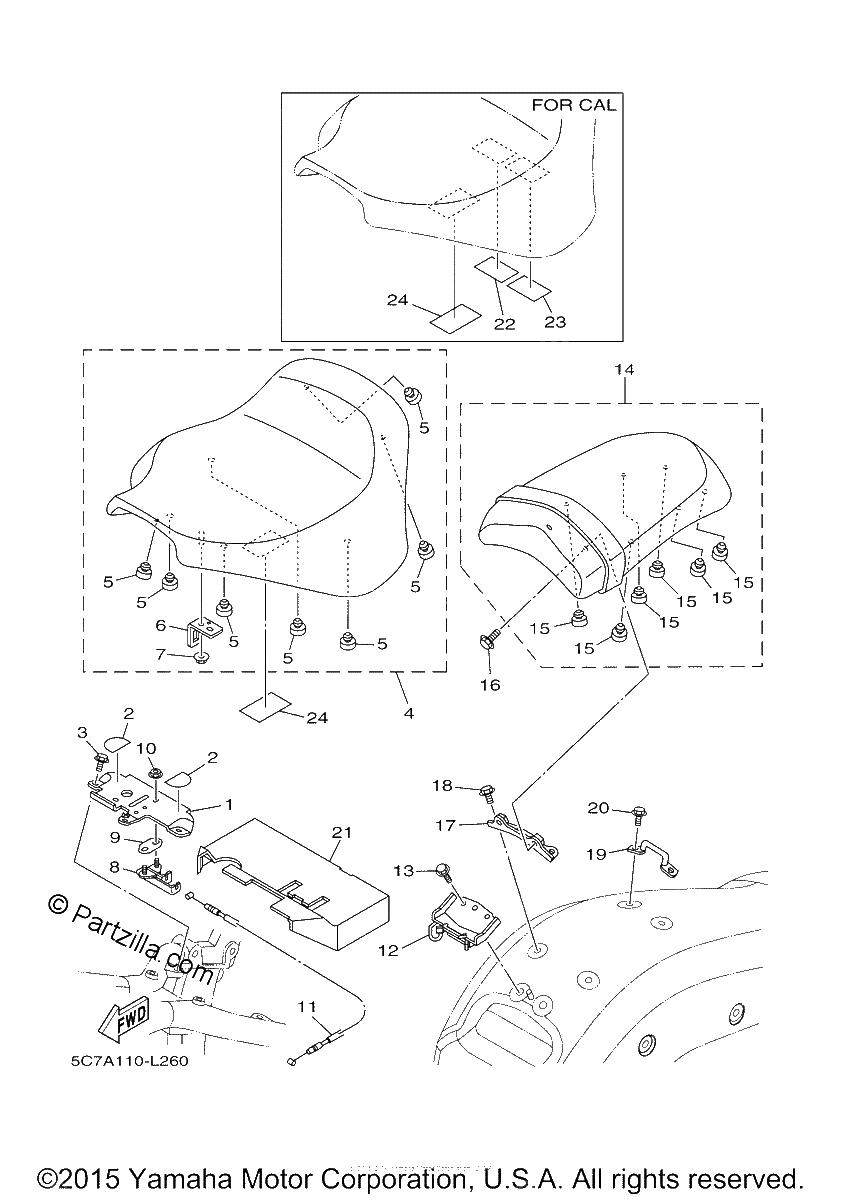

Diagrama de SEAT

Repuestos

#1
5C7-21341-00-00
BRACKET, SEAT 1
$51.00¢25 501
1
#2
5PX-21735-00-00
SEAL 2
No Disponible
1
#3
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#4
1US-F4710-S0-00
SINGLE SEAT ASSY
No Disponible
1
#5
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#6
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#7
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#8
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#9
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#10
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#11
5PX-2478E-00-00
CABLE, SEAT LOCK
$19.50¢9 752
1
#12
5C7-2475N-00-00
BRACKET
$82.29¢41 147
1
#13
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#14
1US-F4750-S0-00
TANDEM SEAT ASSY
No Disponible
1
#15
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#16
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#17
5C7-2475H-00-00
BRACKET, SEAT LEVER 1
$23.07¢11 534
1
#18
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#19
1D7-2475R-00-00
BRACKET 6
$16.02¢8 010
1
#20
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#21
5C7-24796-00-00
COVER
$49.78¢24 892
1
#22
34B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$7.31¢3 657
1
#23
5RU-21686-00-00
PLATE, ROUTING 2
$5.61¢2 806
1
#24
1D7-21668-00-00
LABEL, TIRE
$3.48¢1 742
1
