TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

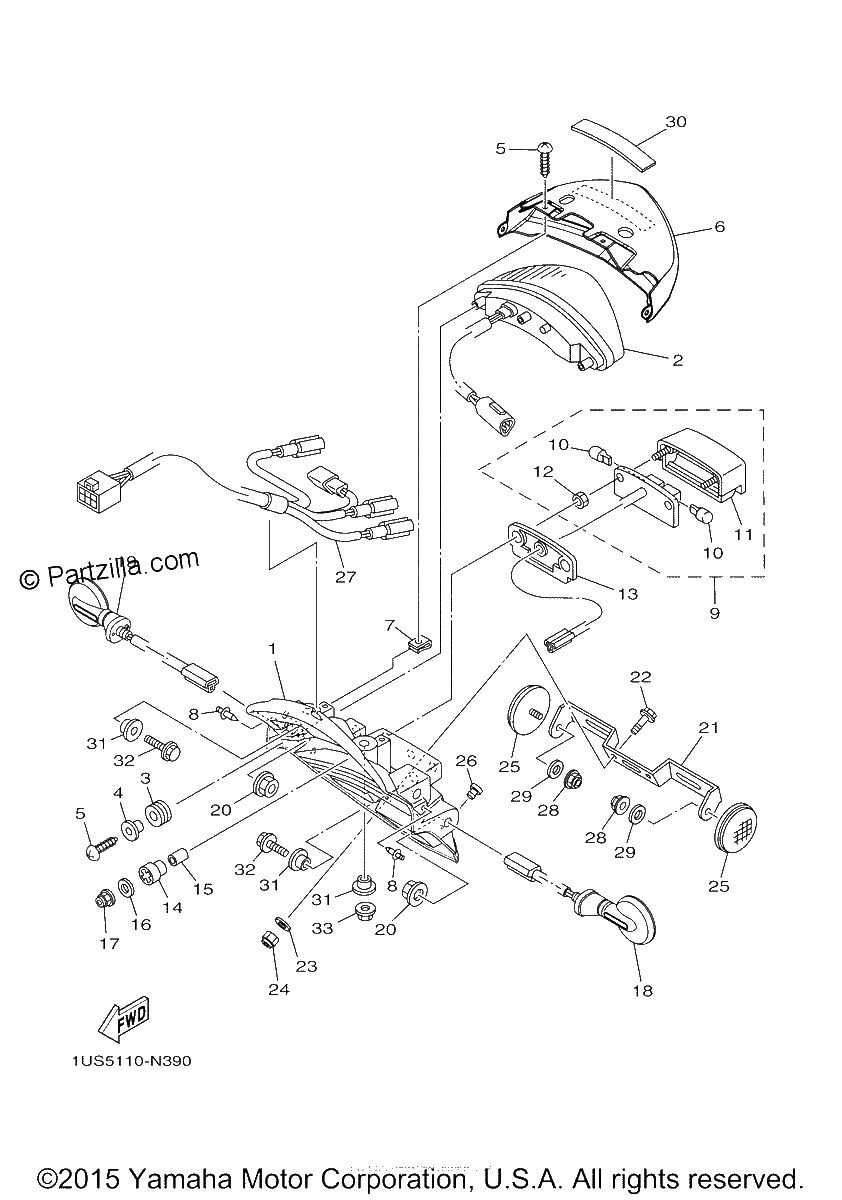

Diagrama de TAILLIGHT

Repuestos

#1
5C7-84711-00-00
BASE, TAILLIGHT
$169.12¢84 560
1
#2
5C7-84710-00-00
TAILLIGHT UNIT ASSY
$215.68¢107 841
1
#3
5PX-84553-00-00
DAMPER
$3.44¢1 719
1
#4
5PX-84557-00-00
COLLAR
$3.90¢1 949
1
#5
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#6
5C7-84716-01-00
COVER, TAILLIGHT
$210.29¢105 145
1
#7
90183-05042-00
NUT, SPRING
$1.15¢575
1
#8
90269-06012-00
RIVET
$11.87¢5 934
1
#9
5C7-84745-00-00
LICENCE LIGHT UNIT ASSY
$124.43¢62 215
1
#10
5PX-84744-00-00
BULB (12V-2CP)
$3.90¢1 949
1
#11
5PX-84749-00-00
BODY, LICENCE LIGHT
$87.71¢43 855
1
#12
5PX-84748-00-00
NUT, SPECIAL
$3.48¢1 742
1
#13
5PX-84742-00-00
SEAT, BASE
$7.79¢3 893
1
#14
3F9-84553-00-00
DAMPER
$22.63¢11 316
1
#15
90387-06241-00
COLLAR
$6.76¢3 381
1
#16
90201-05025-00
WASHER, PLATE
$5.65¢2 823
1
#17
95617-05100-00
NUT, U
$7.30¢3 651
1
#18
1US-83330-01-00
REAR FLASHER LIGHT ASSY 1
$140.46¢70 230
1
#19
1US-83340-01-00
REAR FLASHER LIGHT ASSY 2
$135.94¢67 971
1
#20
90179-12588-00
NUT
$6.16¢3 082
1
#21
5C7-84751-00-00
BRACKET, LICENSE
$29.49¢14 743
1
#22
95027-06014-00
BOLT, FLANGE
$0.84¢420
1
#23
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#24
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#25
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#26
90338-07180-00
PLUG
$6.22¢3 111
1
#27
1US-84717-00-00
CORD, TAILLIGHT
$61.62¢30 808
1
#28
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#29
90201-051K1-00
WASHER, PLATE
$7.31¢3 657
1
#30
1AE-2834E-00-00
DAMPER 3
$6.99¢3 496
1
#31
90387-06153-00
COLLAR
$6.30¢3 151
1
#32
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#33
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
