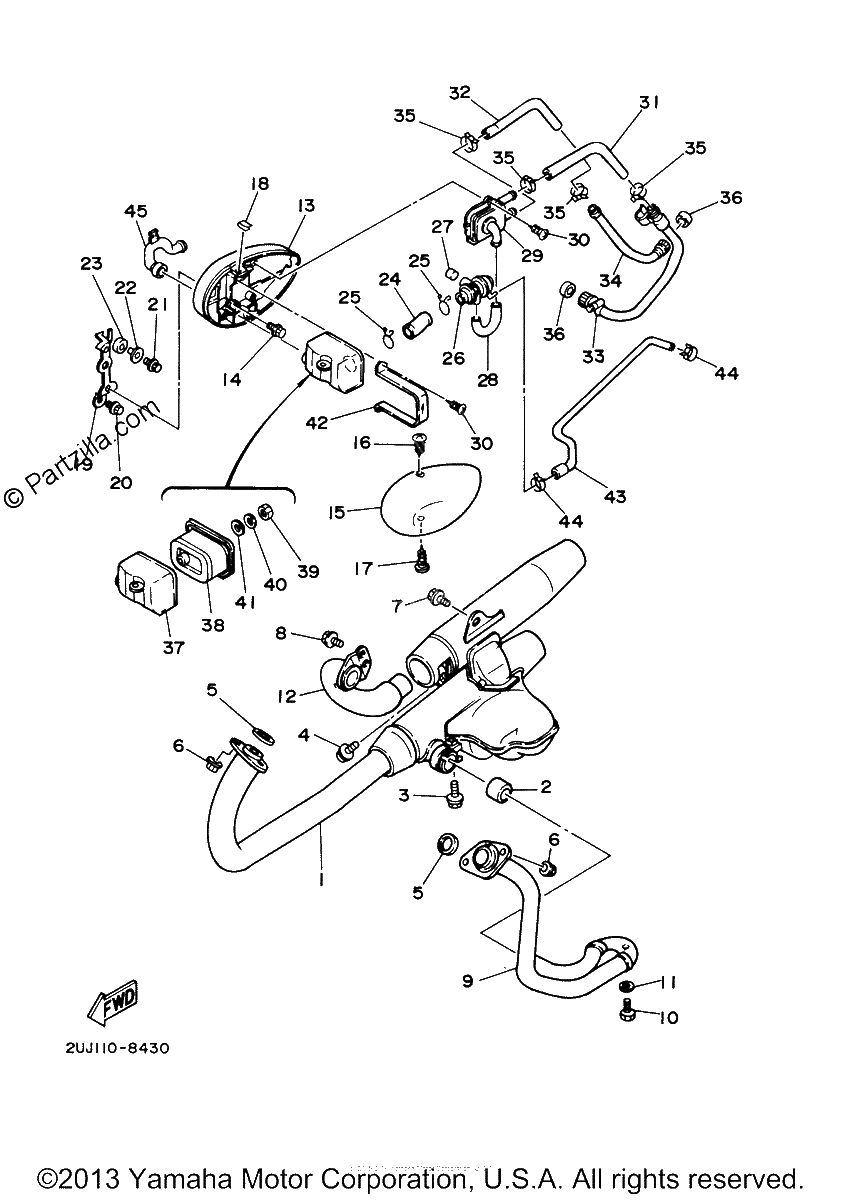

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MUFFLER COMP. 1
$1476.25¢738 127
#2
GASKET, MUFFLER
$19.53¢9 763
#3
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
#4
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#5
GASKET, EXHAUST PIPE
$7.24¢3 622
#6
NUT
$6.75¢3 375
#7
BOLT, FLANGE
$1.92¢960
#8
BOLT, FLANGE
$4.35¢2 173
#9
PIPE, EXHAUST 2
$180.46¢90 229
#10
BOLT
$7.08¢3 542
#11
WASHER, PLATE
$3.13¢1 564
#12
PIPE, EXHAUST 3
$104.56¢52 279
#13
PLATE, AIR CLEANER
$66.50¢33 252
#14
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
#15
COVER 1
$136.54¢68 270
#16
SCREW, TAPPING
$1.45¢724
#17
SCREW, TAPPING
$6.36¢3 180
#18
NUT, SPRING
$2.08¢1 041
#19
PLATE, CLEANER CASE FITTING
$36.28¢18 141
#20
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
#21
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#22
COLLAR
$8.49¢4 244
#23
BUSH
$7.06¢3 530
#24
HOSE, BEND 2
$13.17¢6 584
#25
CLIP
$4.69¢2 346
#26
AIR CUT VALVE ASSY
$214.25¢107 123
#27
PLUG
$2.89¢1 443
#28
HOSE, BEND 3
$11.09¢5 543
#29
REED VALVE ASSY
No Disponible
#30
SCREW, TAPPING
No Disponible
#31
HOSE, BEND 4
$17.55¢8 775
#32
HOSE, BEND 5
$20.09¢10 045
#33
PIPE 3
$152.06¢76 032
#34
PIPE 4
$49.65¢24 823
#35
CLIP
$2.99¢1 495
#36
GASKET, MUFFLER
$22.87¢11 437
#37
CASE, AIR CLEANER
$12.64¢6 319
#38
CAP, CASE
$56.18¢28 089
#39
NUT, HEXAGON (replaces 95307-05600-00)
$1.24¢621
#40
WASHER
$4.48¢2 242
#41
WASHER, PLATE
$2.77¢1 386
#42
BRACKET
$48.54¢24 271
#43
HOSE, VACUUM SENSING 1
$23.45¢11 724
#44
CLIP,SCISSOR
$7.77¢3 887
#45
HOSE, BEND 1
$29.77¢14 887
