STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

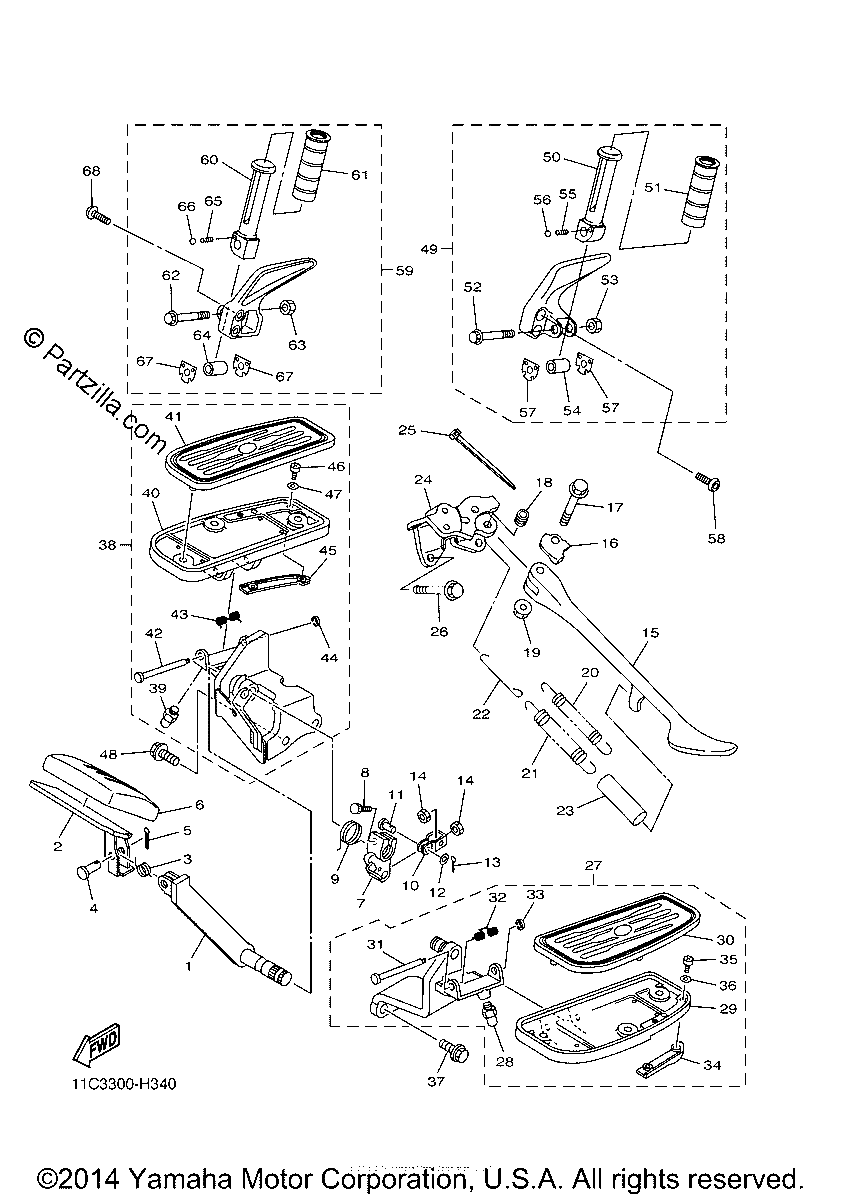

Diagrama de STAND FOOTREST

Repuestos

#0
3D8-27410-10-00
FRONT FOOTREST ASSY (LEFT) | FOR CALIFORNIA
$315.48¢157 738
1
#1
5KS-27211-00-00
PEDAL, BRAKE
$89.09¢44 544
1
#2
4NK-27242-00-00
PEDAL, BRAKE
$43.31¢21 656
1
#3
90508-18023-00
SPRING, TORSION
$6.57¢3 287
1
#4
91701-06022-00
PIN
$2.16¢1 081
1
#5
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#6
1D7-27285-00-00
CAP
$29.66¢14 831
1
#7
5EL-27262-01-00
LEVER
$66.54¢33 269
1
#8
97024-06020-00
BOLT
$7.34¢3 669
1
#9
3D8-27216-00-00
SPRING, RETURN
$15.11¢7 556
1
#10
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#11
90240-08124-00
PIN, CLEVIS
$6.76¢3 381
1
#12
90201-08083-00
WASHER, PLATE
$7.48¢3 738
1
#13
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#14
95317-08700-00
NUT
$8.39¢4 194
1
#15
4KU-27311-13-00
STAND, SIDE
$226.08¢113 038
1
#16
3D8-27322-00-00
WASHER
$20.34¢10 169
1
#17
90105-10012-00
BOLT, WASHER BASED
$11.75¢5 875
1
#18
90387-1003G-00
COLLAR
$21.92¢10 962
1
#19
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#20
90506-23015-00
SPRING, TENSION
$10.66¢5 331
1
#21
90506-29006-00
SPRING, TENSION
$15.34¢7 669
1
#22
3D8-27315-00-00
LINK, SIDE STAND
$8.03¢4 013
1
#23
90445-16641-00
HOSE (L60)
$7.28¢3 638
1
#24
3D8-27321-00-00
BRACKET, SIDE STAND
$271.74¢135 869
1
#25
1UA-82591-00-00
BAND
$4.91¢2 456
1
#26
90105-10158-00
BOLT, FLANGE
$9.13¢4 563
1
#27
3D8-27410-00-00
FRONT FOOTREST ASSY (LEFT) | FOR U49
$416.27¢208 138
1
#28
5PX-27435-09-00
BOLT
$20.38¢10 188
1
#29
4NK-27451-10-00
FOOTREST
$70.92¢35 463
1
#30
4XY-27413-01-00
COVER, FOOTREST
$85.14¢42 569
1
#31
3D8-27427-00-00
SHAFT
$7.31¢3 656
1
#32
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#33
99002-06600-00
CIRCLIP
$1.02¢513
1
#34
4WM-27496-00-00
MOLE 1
$65.17¢32 588
1
#35
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#36
92990-05200-00
WASHER, PLAIN
$5.47¢2 738
1
#37
90105-102A3-00
BOLT, WASHER BASED
$8.30¢4 150
1
#38
3D8-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$416.27¢208 138
1
#39
5PX-27435-09-00
BOLT
$20.38¢10 188
1
#39
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#40
4NK-27461-10-00
FOOTREST
$93.06¢46 531
1
#41
4XY-27423-01-00
COVER, FOOTREST
$85.65¢42 825
1
#42
3D8-27427-00-00
SHAFT
$7.31¢3 656
1
#43
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#44
99002-06600-00
CIRCLIP
$1.02¢513
1
#45
4WM-27497-00-00
MOLE 2
$65.14¢32 569
1
#46
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#47
92990-05200-00
WASHER, PLAIN
$5.47¢2 738
1
#48
90105-102A3-00
BOLT, WASHER BASED
$8.30¢4 150
1
#49
3D8-27430-10-00
REAR FOOTREST ASSY 1
$115.47¢57 738
1
#50
1D7-27431-00-00
FOOTREST, REAR 1
$22.03¢11 013
1
#51
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#52
90109-06016-00
BOLT
$9.24¢4 619
1
#54
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#55
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#56
93501-04011-00
BALL
$7.46¢3 731
1
#57
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#58
90111-08042-00
BOLT,HEX. SOCKET BUT
$4.46¢2 231
1
#59
3D8-27440-10-00
REAR FOOTREST ASSY 2
$166.25¢83 125
1
#60
1D7-27441-00-00
FOOTREST, REAR 2
$34.86¢17 431
1
#61
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#62
90109-06016-00
BOLT
$9.24¢4 619
1
#63
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#64
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#65
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#66
93501-04011-00
BALL
$7.46¢3 731
1
#67
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#68
90111-08042-00
BOLT,HEX. SOCKET BUT
$4.46¢2 231
1
