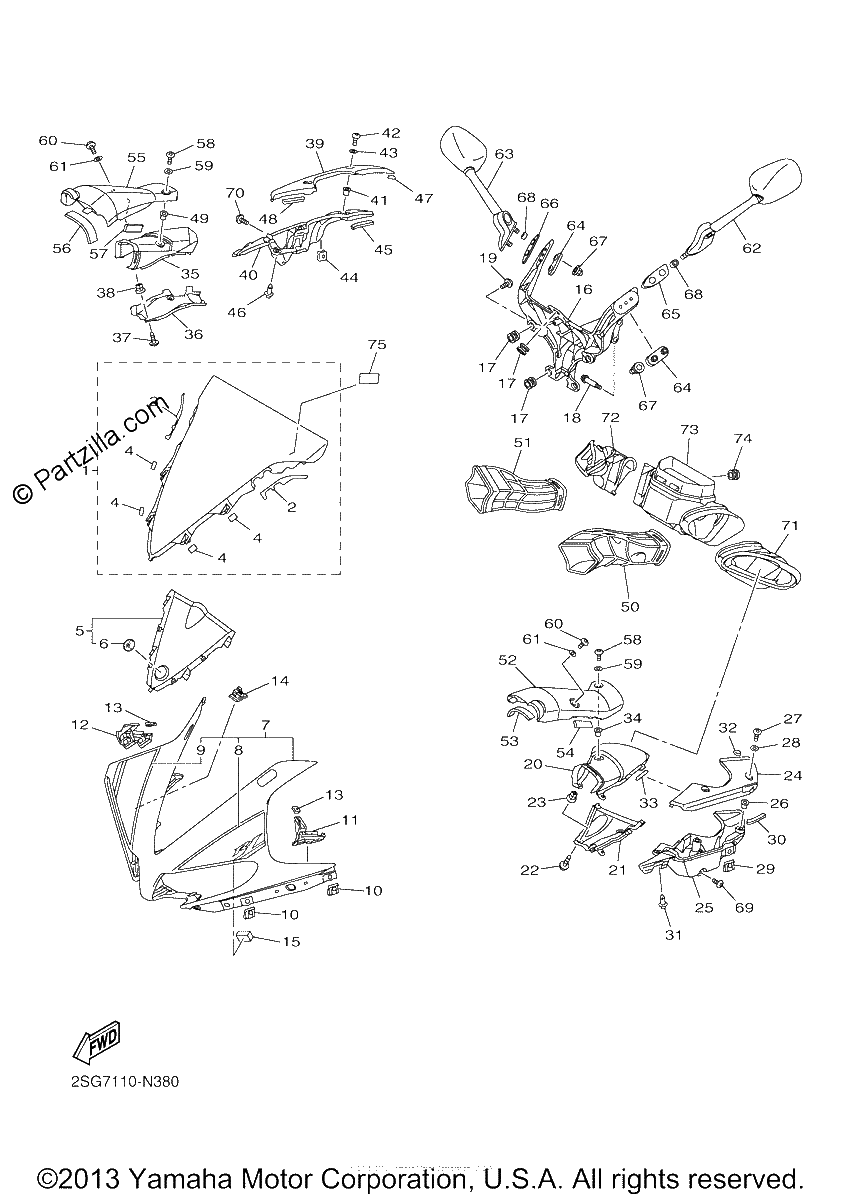

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$94.63¢47 317
#0
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$184.38¢92 190
#0
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$94.63¢47 317
#0
BODY, FRONT UPPER 1 | UR FOR MNM3
$523.86¢261 930
#0
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$158.87¢79 436
#0
BODY, FRONT UPPER 1 | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$274.07¢137 034
#0
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$102.98¢51 491
#0
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$123.83¢61 916
#1
WINDSCREEN ASSY
$167.67¢83 835
#2
SEAL 1
$15.66¢7 831
#3
SEAL 2
$15.66¢7 831
#4
SEAL 2
$7.31¢3 657
#5
PANEL ASSY
$60.03¢30 015
#6
TUNING FORK MARK
$17.39¢8 694
#7
BODY, FRONT UPPER 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$436.52¢218 258
#8
GRAPHIC, 12
$36.03¢18 015
#9
GRAPHIC, 13
$26.93¢13 467
#10
PLATE, SPRING
$6.82¢3 410
#11
STAY, SIDE 1
$7.95¢3 973
#12
STAY, SIDE 1
$8.26¢4 129
#13
NUT, SPRING
$2.60¢1 299
#14
CLAMP
$16.73¢8 366
#15
DAMPER, PLATE
$1.93¢966
#16
STAY 1
$244.48¢122 239
#17
DAMPER
$7.01¢3 507
#18
BOLT, FLANGE
$6.92¢3 461
#19
SCREW, ROUND TAPPING
$6.83¢3 415
#20
DUCT 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$174.83¢87 417
#21
DUCT 3
$13.48¢6 739
#22
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#23
GROMMET
$6.88¢3 439
#24
LID 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$154.67¢77 337
#25
BOX 3
$23.41¢11 707
#26
NUT
$6.23¢3 117
#27
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#28
WASHER, PLATE
$7.05¢3 525
#29
PLATE, SPRING
$6.82¢3 410
#30
SEAL 4
$8.83¢4 416
#31
RIVET
$7.59¢3 795
#32
DAMPER, PLATE
$7.10¢3 548
#33
DAMPER, PLATE
$7.16¢3 582
#34
NUT
$6.23¢3 117
#35
DUCT 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$174.87¢87 435
#36
DUCT 4
$13.48¢6 739
#37
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#38
GROMMET
$6.88¢3 439
#39
DAMPER, 3
$7.31¢3 657
#39
LID 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$129.98¢64 992
#40
BOX 4
$13.48¢6 739
#41
NUT
$6.23¢3 117
#42
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#43
WASHER, PLATE
$7.05¢3 525
#44
PLATE, SPRING
$6.82¢3 410
#45
SEAL 4
$8.83¢4 416
#46
RIVET
$7.59¢3 795
#47
DAMPER, PLATE
$7.10¢3 548
#48
DAMPER, PLATE
$7.16¢3 582
#49
NUT
$6.23¢3 117
#50
DUCT 5
$33.92¢16 963
#51
DUCT 6
$31.65¢15 824
#52
PANEL, CONSOLE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$184.38¢92 190
#54
SEAL 1
$9.67¢4 836
#55
PANEL, CONSOLE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$208.79¢104 397
#56
DAMPER, 3
$7.31¢3 657
#57
SEAL 1
$9.67¢4 836
#58
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#59
WASHER, PLATE
$7.05¢3 525
#60
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#61
WASHER, PLATE
$7.05¢3 525
#62
REAR VIEW MIRROR ASSY (LEFT)
$143.20¢71 599
#63
REAR VIEW MIRROR ASSY (RIGHT)
$143.20¢71 599
#64
PLATE, MIRROR FITTING 1
$7.04¢3 519
#65
BASE, MIRROR (LEFT)
$5.21¢2 605
#66
BASE, MIRROR (RIGHT)
$5.21¢2 605
#67
NUT, CROWN
$4.38¢2 191
#68
COLLAR (J45)
$5.45¢2 726
#69
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#70
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#71
BOX, SIDE 1
$42.03¢21 016
#72
BOX, SIDE 2
$53.70¢26 853
#73
BOX, FRONT
$102.61¢51 307
#74
GROMMET
$4.25¢2 128
#75
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
