FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

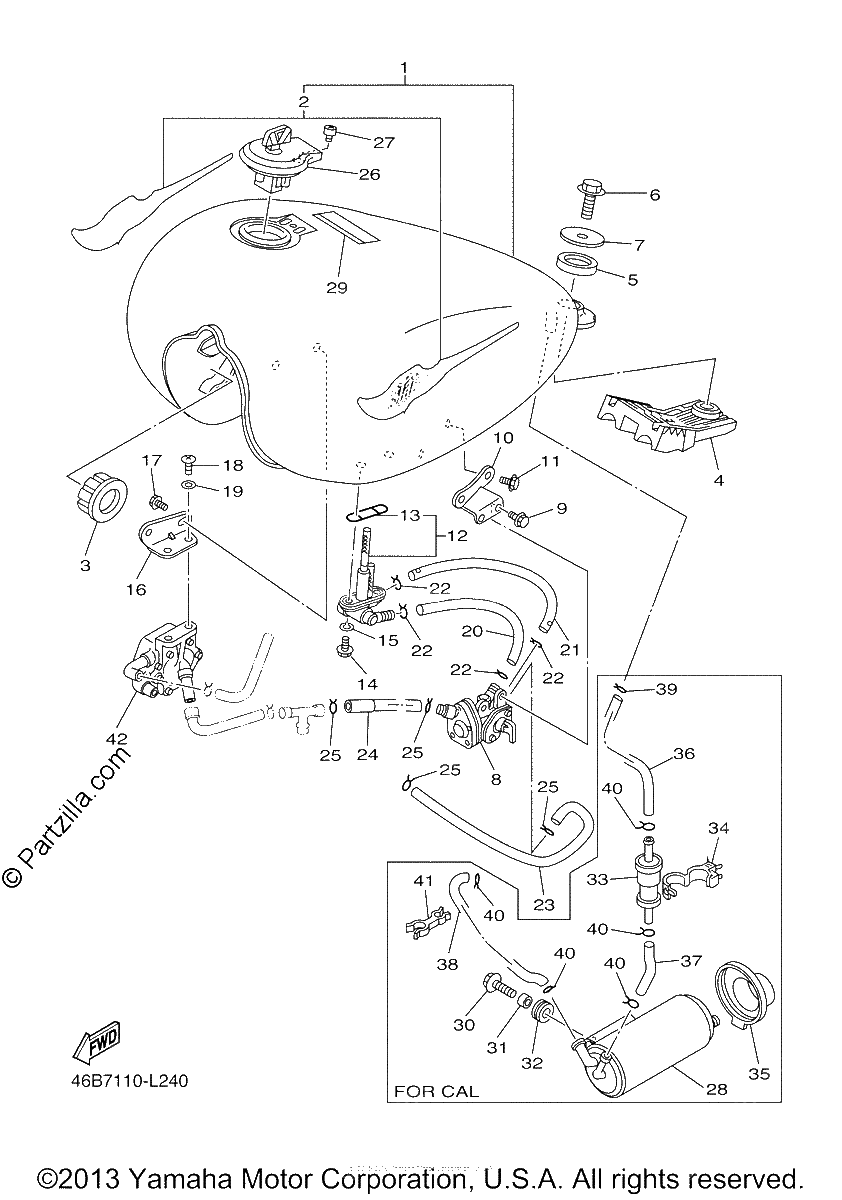

Diagrama de FUEL TANK

Repuestos

#0
4X7-24602-10-00
CAP ASSY | U49
$149.97¢74 988
1
#0
3BG-Y2410-02-X2
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$967.49¢483 744
1
#0
46B-24240-20-00
GRAPHIC SET | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$126.06¢63 031
1
#0
3LS-Y2410-T3-X8
FUEL TANK COMP. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$926.24¢463 119
1
#0
3BG-Y2410-02-X3
FUEL TANK COMP. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$977.49¢488 744
1
#1
3LS-Y2410-T3-X7
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$926.24¢463 119
1
#2
46B-24240-30-00
GRAPHIC SET | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$116.99¢58 494
1
#3
4H7-24181-00-00
DAMPER, LOCATING 1
$6.52¢3 262
1
#4
2UJ-24182-00-00
DAMPER, LOCATING 2
$19.56¢9 781
1
#5
42X-24183-00-00
DAMPER, LOCATING 3
$8.03¢4 013
1
#6
95817-08030-00
BOLT, FLANGE
$7.34¢3 669
1
#7
90201-08569-00
WASHER, PLATE
$5.25¢2 625
1
#8
2UJ-24500-10-00
FUEL COCK ASSY 1
$146.46¢73 231
1
#9
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$5.02¢2 512
1
#10
2UJ-24544-01-00
BRACKET, FUEL COCK
$23.41¢11 706
1
#11
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$5.02¢2 512
1
#12
2UJ-24560-10-00
FILTER ASSY
$49.09¢24 544
1
#13
4X8-24512-10-00
GASKET
$13.06¢6 531
1
#14
90149-06011-00
SCREW,SPEC'L SHAPE
$1.95¢975
1
#15
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#16
2UJ-24491-01-00
BRACKET, FUEL PUMP
$16.63¢8 313
1
#17
95024-06010-00
BOLT, FLANGE (SMALL HEAD)
$5.02¢2 512
1
#18
98517-06012-00
SCREW,PAN (replaces 98502-06012-00)
$3.74¢1 869
1
#19
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#20
90445-11057-00
HOSE
$17.68¢8 838
1
#21
90445-11058-00
HOSE
$25.88¢12 938
1
#22
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#23
2UJ-24312-10-00
PIPE 2
$36.66¢18 331
1
#24
2UJ-24313-00-00
PIPE 3
$29.15¢14 575
1
#25
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#26
20K-24602-10-00
CAP ASSY | FOR CALIFORNIA
$102.21¢51 106
1
#27
91317-05010-00
BOLT,HEX.SOCKET HEAD
$2.00¢1 000
1
#28
3BG-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$359.38¢179 688
1
#29
1TP-2118K-A1-00
LABEL, CAUTION
$7.16¢3 581
1
#30
90119-06118-00
BOLT, WITH WASHER
$7.34¢3 669
1
#31
90387-0600V-00
COLLAR
$9.13¢4 563
1
#32
90480-14329-00
GROMMET
$7.94¢3 969
1
#33
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
1
#34
90464-15192-00
CLAMP
$7.34¢3 669
1
#35
2JU-2419E-00-00
COVER, CANISTER | FOR CALIFORNIA
$53.96¢26 981
1
#36
3BG-24321-10-00
PIPE 10 | FOR CALIFORNIA
$71.78¢35 888
1
#37
3BG-24322-10-00
PIPE 11 | FOR CALIFORNIA
$42.35¢21 175
1
#38
3BG-24323-10-00
PIPE 12 | FOR CALIFORNIA
$69.05¢34 525
1
#39
90467-090A2-00
Clip
$2.97¢1 487
1
#40
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#41
90464-16119-00
CLAMP | FOR CALIFORNIA
$3.34¢1 669
1
#42
3DM-13910-01-00
FUEL PUMP ASSY
$346.59¢173 294
1
