HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

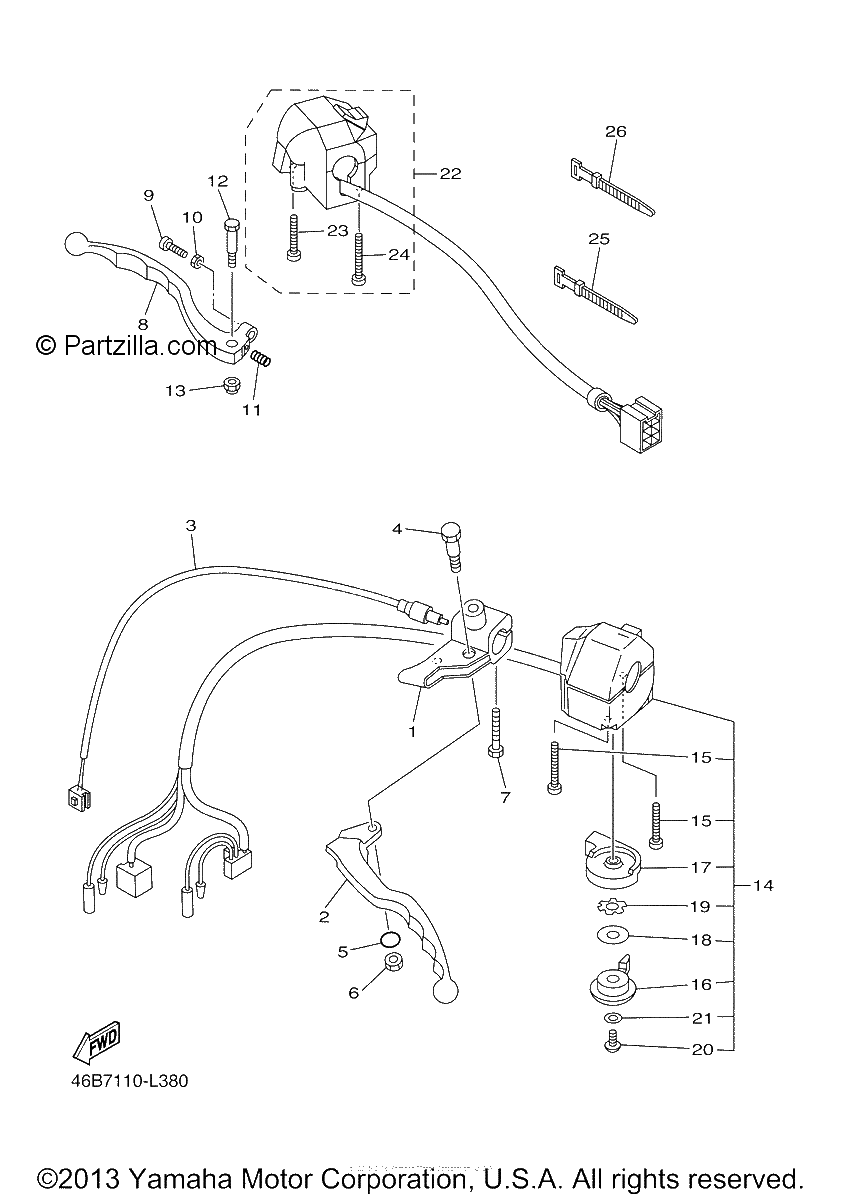

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
11H-82911-00-00
HOLDER, LEVER 1
$48.32¢24 162
1
#2
2GV-83912-00-00
LEVER 1
$26.88¢13 438
1
#3
2UJ-82917-00-00
SWITCH
$58.25¢29 124
1
#4
90109-06798-00
bolt
$6.87¢3 433
1
#5
93210-11368-00
O-RING
$5.27¢2 633
1
#6
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#7
5LP-83925-10-00
SCREW, LEVER FITTING
$4.74¢2 369
1
#8
2W1-83922-00-00
LEVER 2
$29.88¢14 939
1
#9
90154-06028-00
SCREW, BINDING
$5.95¢2 973
1
#10
90170-06020-00
Nut
$5.88¢2 938
1
#11
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#12
90109-06255-00
bolt
$1.82¢909
1
#13
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#14
46B-83973-00-00
SWITCH, HANDLE 3
$189.55¢94 777
1
#15
98507-05035-00
SCREW, PAN HEAD
$7.31¢3 657
1
#16
10M-83941-00-00
LEVER, STARTER
$25.43¢12 713
1
#17
4VH-83942-00-00
COVER, STARTER
$18.37¢9 183
1
#18
1AA-8397X-00-00
SPACER
$7.23¢3 617
1
#19
90209-10131-00
WASHER
$8.99¢4 497
1
#20
98517-06008-00
SCREW
$7.30¢3 651
1
#21
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#22
46B-83975-00-00
SWITCH, HANDLE 2
$185.60¢92 799
1
#23
98507-05040-00
SCREW, PAN HEAD
$7.30¢3 651
1
#24
98507-05045-00
SCREW, PAN HEAD
$7.81¢3 904
1
#25
437-83936-01-00
BAND,SWITCH CORD
$5.24¢2 622
1
#26
437-83936-11-00
BAND, SWITCH CORD
$3.92¢1 961
1
