CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

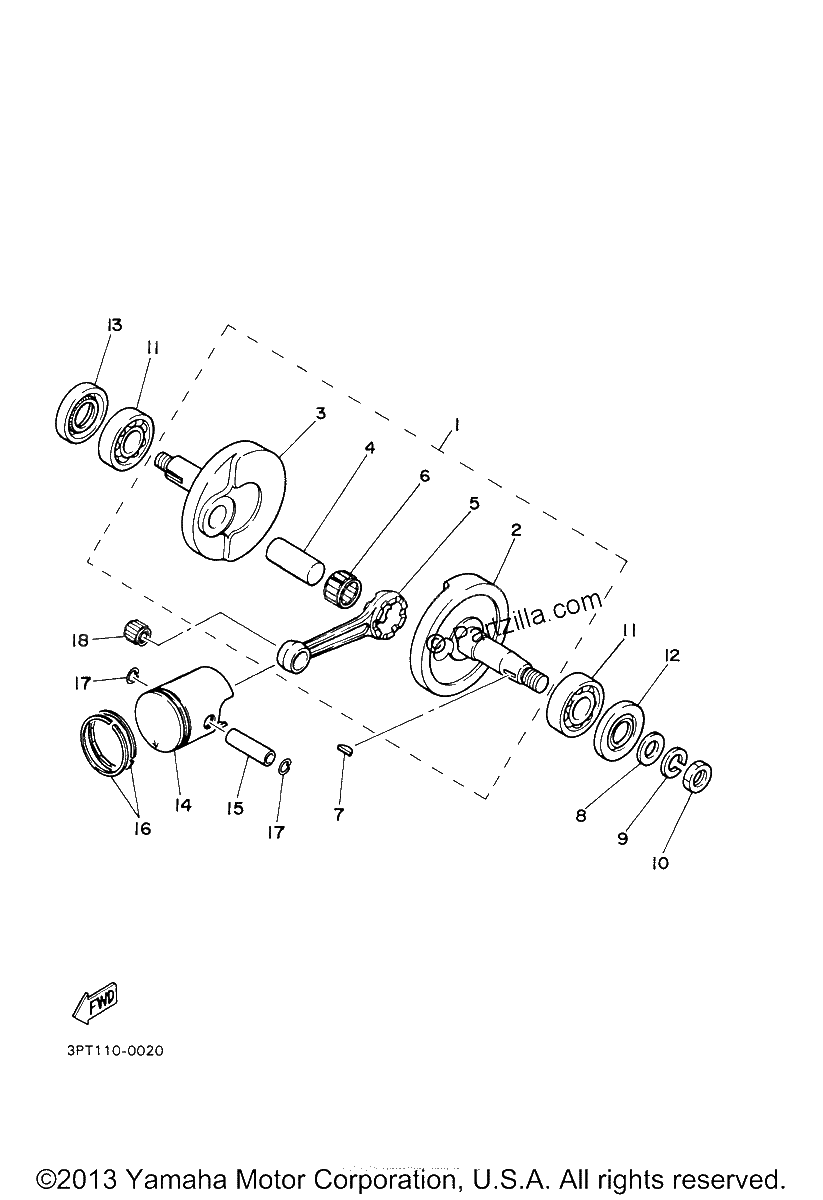

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
18U-11631-00-A0
PISTON STD
$87.63¢43 815
1
#0
18U-11635-00-00
PISTON 1 O/S 0.25
$92.63¢46 316
1
#0
260-11601-03-00
PISTON RINGSET STD (replaces 260-11610-04-00)
$63.00¢31 499
1
#0
260-11601-13-00
PISTON RINGSET 1ST (replaces 260-11610-14-00)
$64.97¢32 487
1
#1
3L5-11400-02-00
Crankshaft Assy
$208.59¢104 294
1
#2
3L5-11412-00-00
CRANK 1
$112.12¢56 062
1
#3
3L5-11422-01-00
CRANK 2
$89.91¢44 954
1
#4
1YU-11681-00-00
PIN,CRANK 1
$30.50¢15 249
1
#5
2E9-11651-00-00
ROD,CONNECTING
$118.75¢59 375
1
#6
93310-416N7-00
BEARING, CYL.
$36.77¢18 383
1
#7
90280-03017-00
KEY, WOODRUFF
$6.32¢3 162
1
#8
92907-12600-00
WASHER (replaces 92902-12600-00)
$1.35¢673
1
#9
92907-12100-00
WASHER (6TA)
$7.57¢3 783
1
#10
95317-12700-00
NUT,HEXAGON RIGHT (replaces 95302-12700-00)
$6.75¢3 375
1
#11
93306-20335-00
BEARING
$33.48¢16 738
1
#12
93102-17067-00
OIL SEAL,SD-TYPE
$10.45¢5 227
1
#13
93102-23174-00
OIL SEAL,SD-TYPE
$13.19¢6 595
1
#14
18U-11636-00-00
PISTON 2 O/S 0.50
$93.18¢46 592
1
#15
2E9-11633-00-00
PIN, PISTON
$16.85¢8 424
1
#16
260-11601-23-00
PISTON RINGSET 2ND (replaces 260-11610-24-00)
$65.01¢32 505
1
#17
93450-11021-00
CIRCLIP,INNER
$2.70¢1 351
1
#18
93310-210M0-00
BEARING, PISTON PN (replaces 93310-21038-00)
$29.88¢14 939
1
