TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

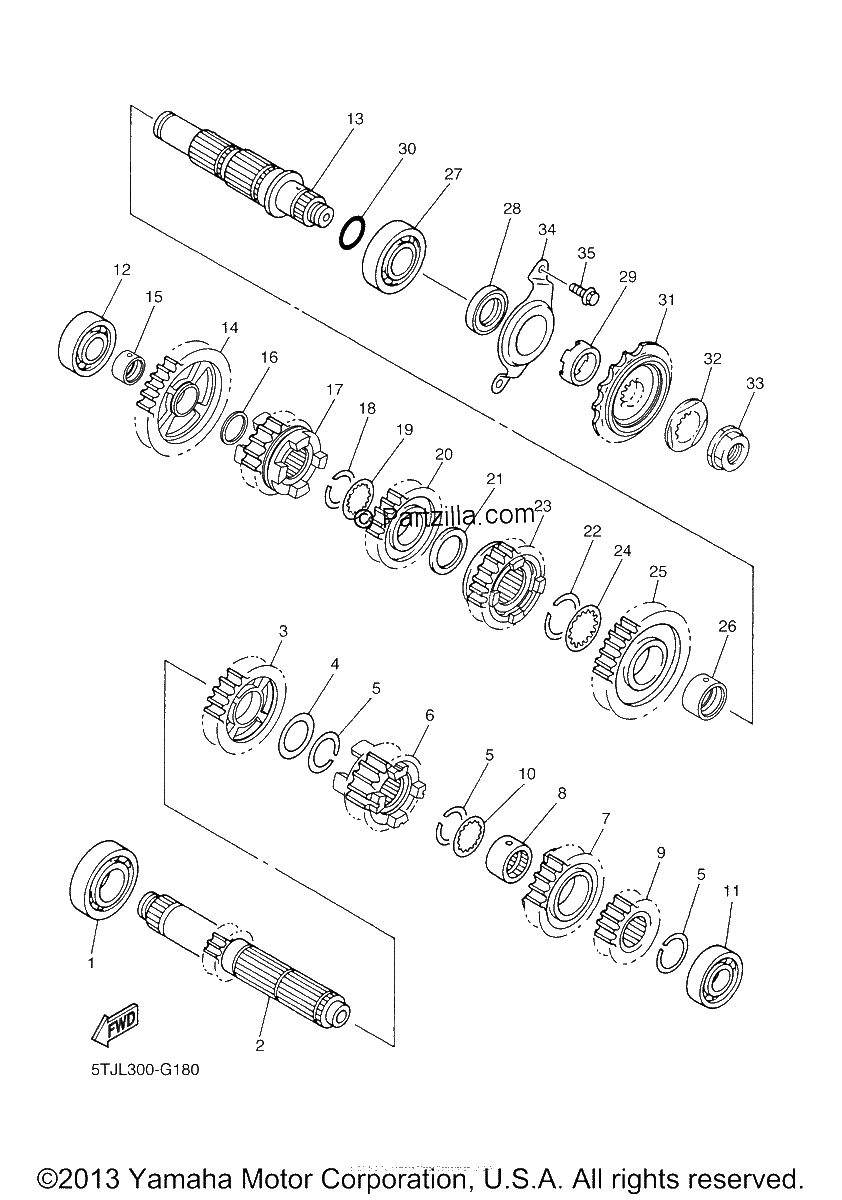

Diagrama de TRANSMISSION

Repuestos

#1
93306-20532-00
BEARING
$63.16¢31 579
1
#2
5TJ-17411-30-00
Axle, Main
$189.61¢94 806
1
#3
5TJ-17151-20-00
GEAR, 5TH PINION (25T)
$60.06¢30 032
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#5
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#6
5TJ-17131-20-00
GEAR, 3RD PINION (16T)
$235.81¢117 904
1
#7
5TJ-17141-20-00
GEAR, 4TH PINION
$84.18¢42 090
1
#8
90387-21005-00
Collar
$27.43¢13 714
1
#9
5TJ-17121-20-00
GEAR, 2ND PINION (15T)
$65.17¢32 585
1
#10
90209-21332-00
WASHER
$7.38¢3 691
1
#11
93306-00431-00
BEARING
$40.01¢20 004
1
#12
93306-00426-00
BEARING
$40.11¢20 056
1
#13
2S2-17402-00-00
DRIVE AXLE ASSY
$248.84¢124 419
1
#14
5TJ-17211-20-00
GEAR, 1ST WHEEL
$111.22¢55 608
1
#15
90387-20028-00
Collar
$22.29¢11 143
1
#16
90201-203E7-00
WASHER,PLATE
$7.91¢3 956
1
#17
5TJ-17251-20-00
GEAR, 5TH WHEEL(21T)
$177.94¢88 970
1
#18
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#19
90209-21332-00
WASHER
$7.38¢3 691
1
#20
5TJ-17231-20-00
GEAR, 3RD WHEEL (21T)
$74.88¢37 438
1
#21
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#22
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#23
5TJ-17241-20-00
GEAR, 4TH WHEEL
$132.19¢66 096
1
#24
90209-26348-00
WASHER
$10.57¢5 284
1
#25
5TJ-17221-20-00
GEAR, 2ND WHEEL (26T)
$79.50¢39 750
1
#26
90387-28012-00
Collar
$29.50¢14 749
1
#27
93306-205A5-00
BEARING
$58.28¢29 141
1
#28
93102-32480-00
Oil Seal
$18.31¢9 154
1
#29
90387-2513F-00
Collar
$37.40¢18 699
1
#30
93210-22298-00
O-RING
$7.19¢3 594
1
#31
9383E-13233-00
SPROCKET, DRIVE (13T)
$21.75¢10 873
1
#32
90215-21003-00
Washer, Lock
$5.90¢2 950
1
#33
90179-20001-00
Nut
$15.11¢7 555
1
#34
2S2-17471-00-00
PLATE, COVER
$19.14¢9 568
1
#35
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
