EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

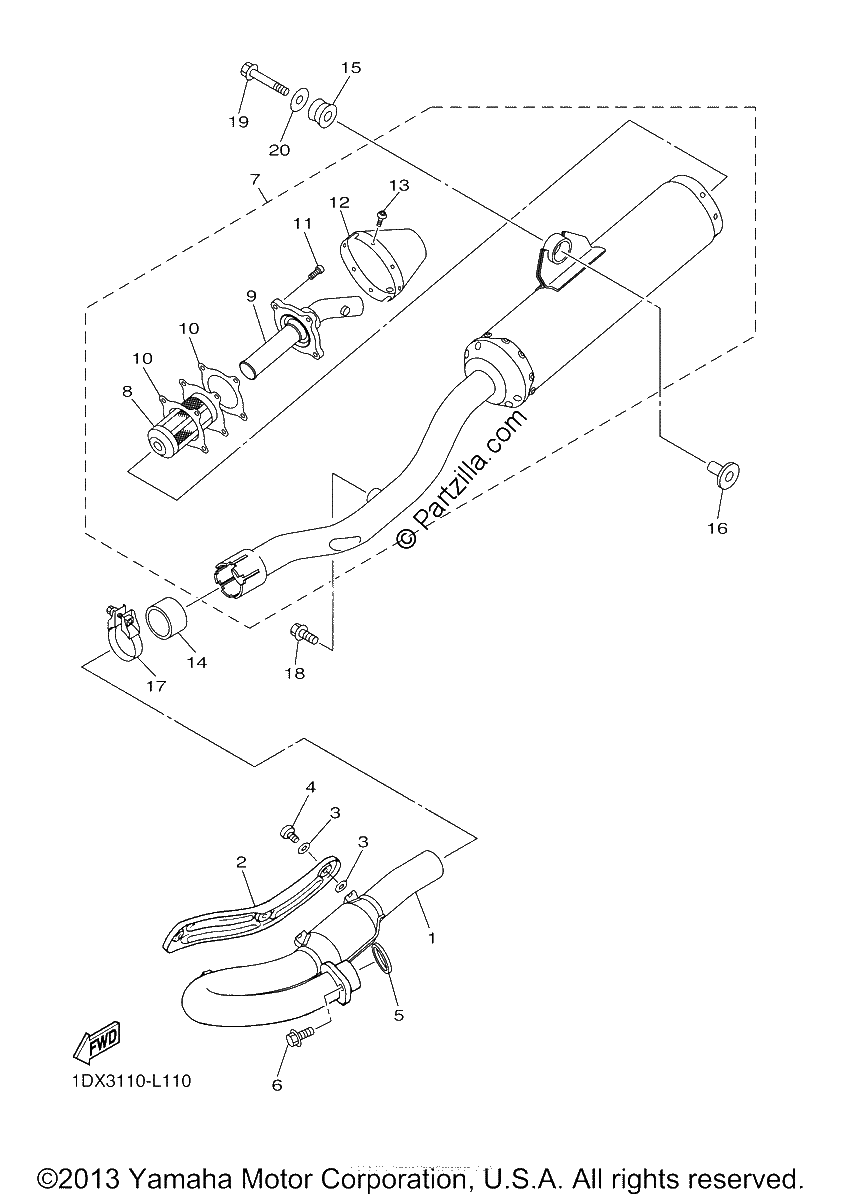

Diagrama de EXHAUST

Repuestos

#1
1DX-14611-20-00
PIPE, EXHAUST 1
$443.27¢221 634
1
#2
2S2-14628-00-00
PROTECTOR, EXHAUST PIPE
$81.82¢40 911
1
#3
90201-05017-00
WASHER, PLATE
$6.88¢3 439
1
#4
98980-06008-00
SCREW,BIND
$0.67¢333
1
#5
3VD-14613-01-00
GASKET, EXHAUST PIPE | INC. IN TOP END GASKET KIT
$10.74¢5 371
1
#6
90105-08142-00
BOLT, FLANGE
$5.37¢2 685
1
#7
5TJ-14710-E0-00
MUFFLER ASSY 1
$1083.29¢541 644
1
#8
5TJ-14780-00-00
SPARK ARRESTER ASSY
$102.66¢51 330
1
#9
5TJ-14784-00-00
PIPE, TAIL
$154.54¢77 268
1
#10
5TJ-14623-00-00
GASKET, EXHAUST PIPE
$12.62¢6 308
1
#11
90110-05041-00
BOLT, HEXAGON SOCKET HEAD
$3.58¢1 788
1
#12
5TJ-14799-00-00
CAP
$131.54¢65 768
1
#13
92012-05008-00
BOLT, BUTTON HEAD
$2.56¢1 282
1
#14
5XD-14714-00-00
GASKET, MUFFLER
$28.88¢14 438
1
#15
1DX-14747-00-00
DAMPER, MUFFLER
$29.36¢14 680
1
#16
90387-08081-00
COLLAR
$8.14¢4 071
1
#17
5BE-14788-00-00
BAND, SILENCER
$33.33¢16 664
1
#18
90105-08307-00
BOLT, FLANGE
$6.88¢3 439
1
#19
90105-08137-00
BOLT, FLANGE
$3.88¢1 938
1
#20
90201-08061-00
WASHER, PLATE
$6.82¢3 410
1
