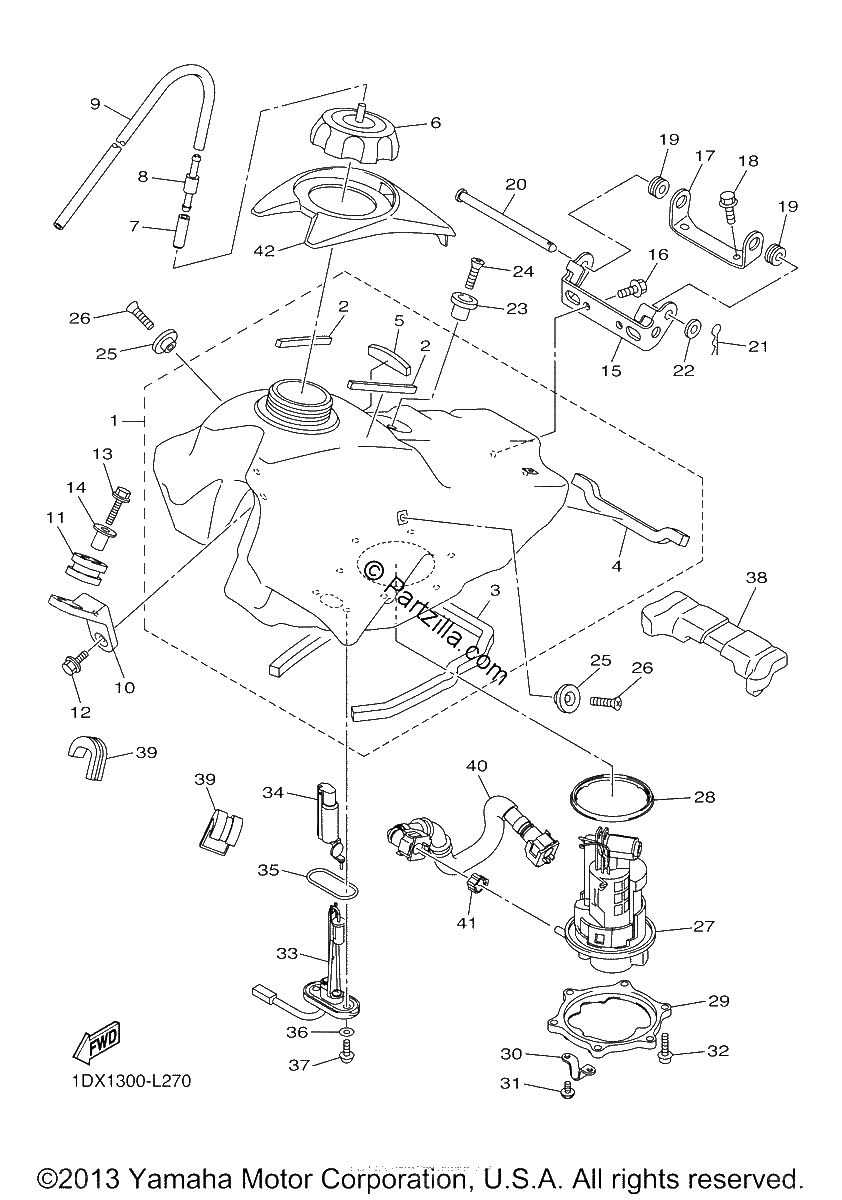

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK ASSY
No Disponible
#2
DAMPER 2
$5.93¢2 967
#3
DAMPER, PLATE
$3.93¢1 967
#4
DAMPER, PLATE 6
$7.28¢3 640
#5
DAMPER, SEAT
$3.48¢1 742
#6
CAP ASSY
$60.52¢30 262
#7
HOSE (L30)
$10.79¢5 394
#8
PIPE JOINT ASSY
$34.24¢17 118
#9
HOSE (L420)
$12.04¢6 020
#10
HOLDER, DAMPER
$22.97¢11 483
#11
GROMMET
$6.64¢3 318
#12
BOLT, FLANGE
$6.75¢3 375
#13
Bolt, Flange
$6.75¢3 375
#14
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$12.09¢6 043
#15
BRACKET, CANISTOR
No Disponible
#16
BOLT, FLANGE
$6.75¢3 375
#17
BRACKET, FUEL TANK 1
$15.32¢7 659
#18
BOLT, FLANGE
$6.89¢3 444
#19
GROMMET
$6.08¢3 042
#20
PIN, CLEVIS
$8.80¢4 399
#21
Clip
$4.94¢2 472
#22
WASHER, PLATE
$4.06¢2 030
#23
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
#24
SCREW,FLAT
$6.76¢3 381
#25
BRACKET, SEAT
$4.66¢2 329
#26
SCREW, FLAT
$7.31¢3 657
#27
FUEL PUMP COMP.
$523.16¢261 579
#28
O-Ring
$31.31¢15 657
#29
Bracket, Fuel Pump
$75.67¢37 835
#30
BRACKET, FUEL TANK 2
$16.85¢8 424
#31
SCREW, BIND
$1.74¢868
#32
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#33
SENDER UNIT ASSY, FUEL METER
$118.83¢59 415
#34
Cover
$13.39¢6 693
#35
GASKET, SENDER UNIT
$11.71¢5 853
#36
WASHER, PLATE
$1.45¢724
#37
SCREW
$1.05¢523
#38
DAMPER, LOCATING 1
$19.93¢9 965
#39
DAMPER, LOCATING 2
$7.18¢3 588
#40
PIPE, FUEL 1
$75.99¢37 996
#41
CLAMP 1
$9.56¢4 778
#42
COVER, CAP
$17.01¢8 504
