CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

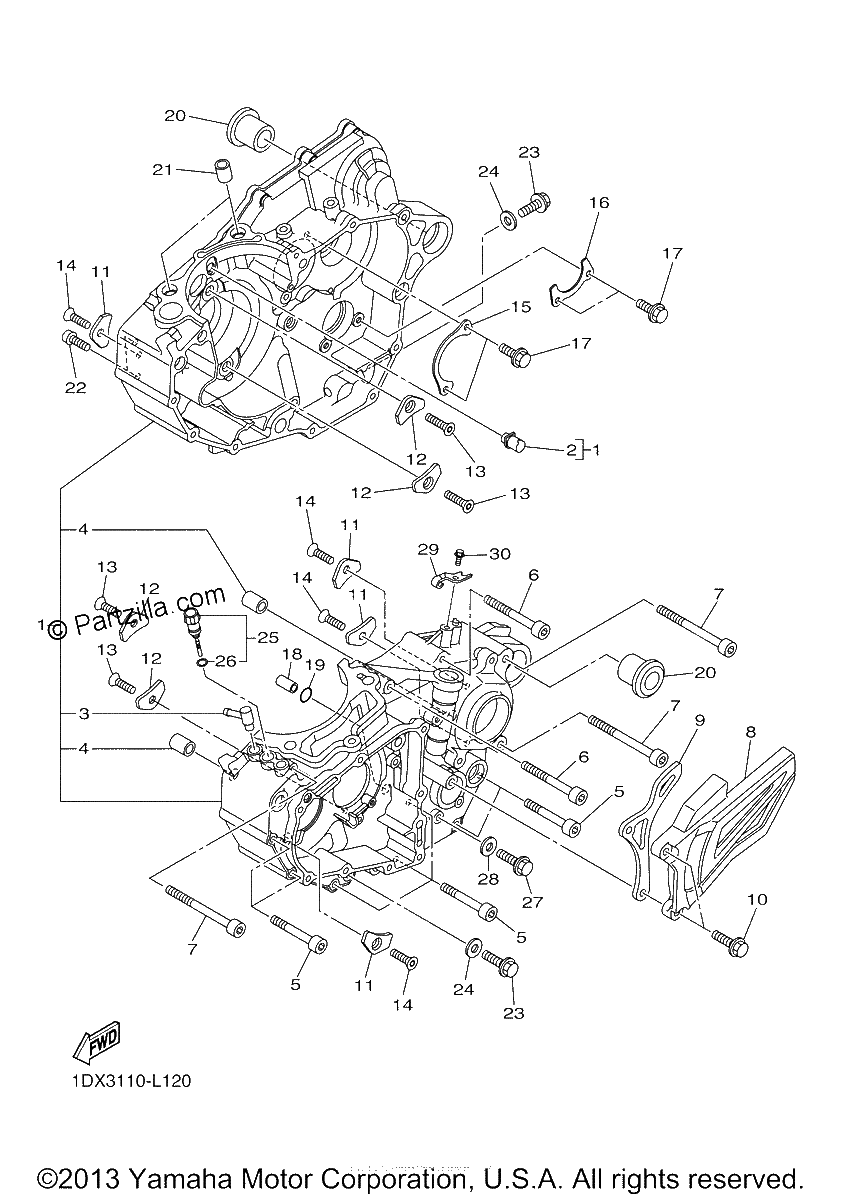

Diagrama de CRANKCASE

Repuestos

#1
2S2-15100-39-00
CRANKCASE ASSY
$1854.97¢927 488
1
#2
2S2-15155-10-00
NOZZLE 3
$46.09¢23 044
1
#3
5XC-15373-00-00
PIPE, BREATHER
$54.60¢27 300
1
#4
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#5
91312-06050-00
BOLT
$4.65¢2 325
1
#6
91312-06060-00
BOLT
$8.85¢4 425
1
#7
91312-06080-00
BOLT
$4.05¢2 025
1
#8
1DX-15421-00-00
COVER, CRANKCASE 2
$19.85¢9 925
1
#9
2S2-17466-00-00
GUIDE, CHAIN
$17.09¢8 544
1
#10
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#11
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#12
5BE-15383-01-00
PLATE, BEARING COVER
$10.84¢5 419
1
#13
90151-06071-00
SCREW, COUNTERSUNK
$4.46¢2 231
1
#14
90151-06052-00
SCREW, COUNTERSUNK (replaces 90149-06074-00)
$7.60¢3 800
1
#15
2S2-15388-00-00
PLATE, BEARING COVER
$5.88¢2 938
1
#16
2S2-18562-00-00
PLATE, STOPPER 2
$7.69¢3 844
1
#17
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#18
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#19
93210-10197-00
O-RING
$6.99¢3 494
1
#20
90387-18007-00
COLLAR
$35.64¢17 819
1
#21
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#22
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
1
#23
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#24
90430-08119-00
GASKET
$6.91¢3 456
1
#25
2S2-1536A-00-00
PLUG, OIL LEVEL
$31.01¢15 506
1
#26
93210-09350-00
O-RING (replaces 93210-09165-00)
$6.91¢3 456
1
#27
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#28
90430-06014-00
GASKET
$8.25¢4 125
1
#29
5TA-15441-01-00
HOLDER, CLUTCH CABLE
$22.20¢11 100
1
#30
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
