TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

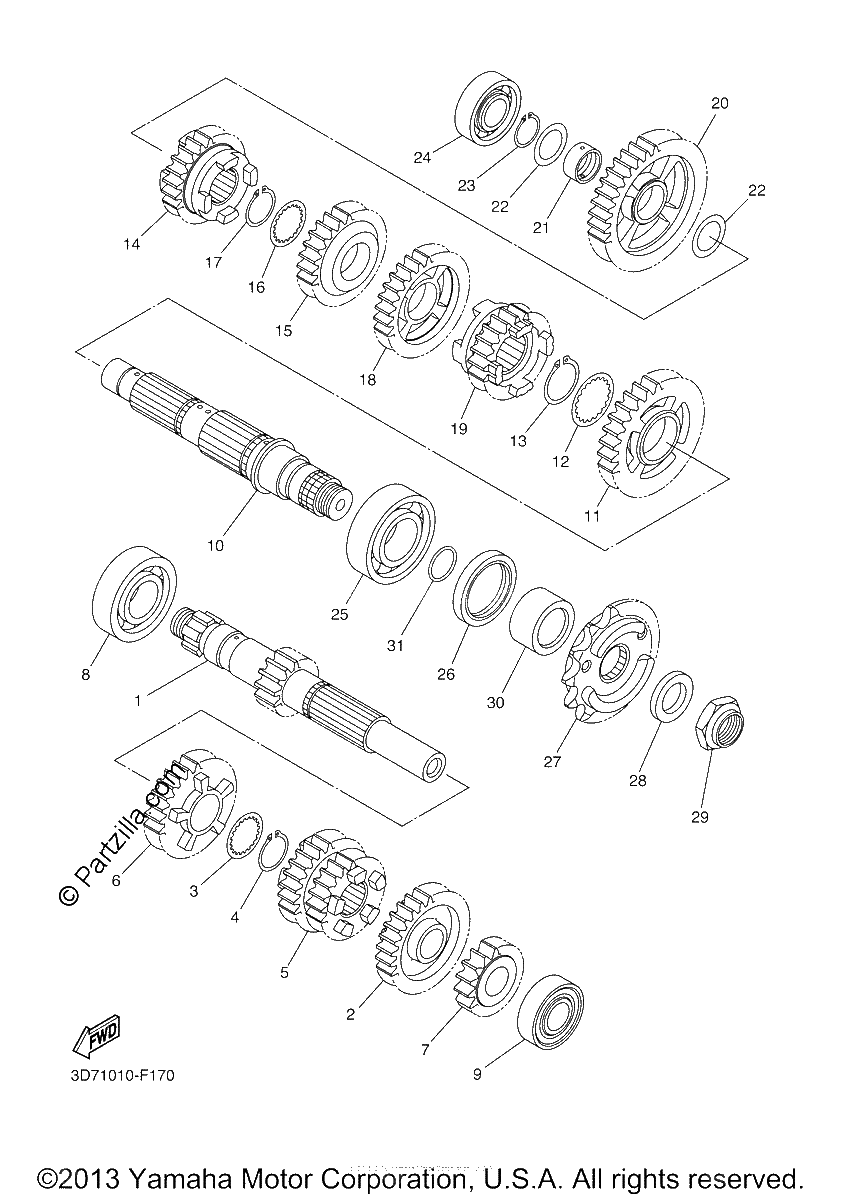

Diagrama de TRANSMISSION

Repuestos

#1
3D7-17411-00-00
AXLE, MAIN (14T)
$150.49¢75 245
1
#2
3D7-17161-00-00
GEAR, 6TH PINION (28T)
$64.53¢32 263
1
#3
90209-20008-00
WASHER
$9.40¢4 698
1
#4
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#5
3D7-17131-00-00
GEAR, 3RD PINION (22T/25T)
$138.52¢69 259
1
#6
3D7-17151-00-00
GEAR, 5TH PINION (27T)
$67.83¢33 914
1
#7
3D7-17121-00-YX
GEAR, 2ND PINION (16T)
$62.50¢31 251
1
#8
93306-20447-00
BEARING (replaces 93306-20427-00)
$38.27¢19 136
1
#9
93306-20332-00
BEARING
$36.08¢18 038
1
#10
3D7-17402-00-00
DRIVE AXLE ASSY
$186.93¢93 466
1
#11
3D7-17221-00-00
GEAR, 2ND WHEEL (29T)
$99.34¢49 668
1
#12
90209-23012-00
WASHER
$5.51¢2 754
1
#13
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#14
3D7-17251-00-00
GEAR, 5TH WHEEL (24T)
$69.06¢34 529
1
#15
3D7-17241-00-00
GEAR, 4TH WHEEL (26T)
$61.33¢30 665
1
#16
90209-20008-00
WASHER
$9.40¢4 698
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#18
3D7-17231-00-00
GEAR, 3RD WHEEL (29T)
$101.98¢50 991
1
#19
3D7-17261-00-00
GEAR, 6TH WHEEL (22T)
$134.57¢67 286
1
#20
3D7-17211-00-00
GEAR, 1ST WHEEL (37T)
$58.99¢29 497
1
#21
90387-17012-00
COLLAR
$15.16¢7 578
1
#22
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#23
93410-17037-00
CIRCLIP,S-TYPE
$7.30¢3 651
1
#24
93306-20332-00
BEARING
$36.08¢18 038
1
#25
93306-20532-00
BEARING
$63.16¢31 579
1
#26
93102-32480-00
Oil Seal
$18.31¢9 154
1
#27
3D7-17460-00-00
SPROCKET, DRIVE (13T)
$26.09¢13 047
1
#28
90201-18026-00
WASHER, PLATE
$36.20¢18 101
1
#29
90179-18010-00
NUT
$14.34¢7 170
1
#30
90387-22013-00
COLLAR
$35.05¢17 526
1
#31
93210-196A4-00
O-RING
$2.14¢1 070
1
