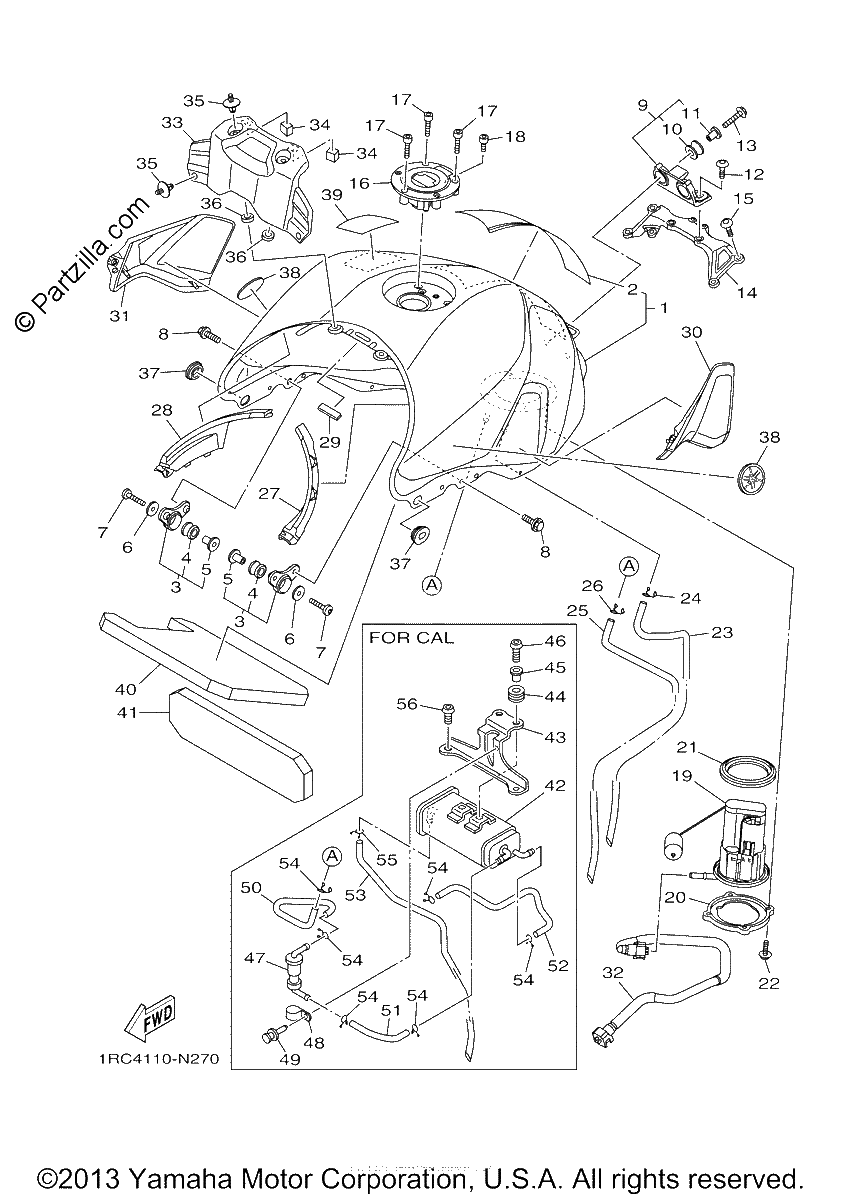

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | UR FOR DOM8
$918.84¢459 419
#0
FUEL TANK COMP. | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$917.69¢458 844
#0
GRAPHIC, FUEL TANK 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$63.53¢31 763
#1
FUEL TANK COMP. | UR FOR DNMN
$1041.67¢520 835
#2
GRAPHIC, FUEL TANK 1 | UR FOR DOM8
$62.30¢31 148
#3
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$55.90¢27 951
#4
GROMMET
$3.48¢1 742
#5
COLLAR
$4.30¢2 151
#6
WASHER, PLATE
$7.01¢3 507
#7
BOLT, BUTTON HEAD
$1.89¢943
#8
BOLT, WITH WASHER
$6.88¢3 439
#9
TANK BRACKET ASSY
$47.48¢23 742
#10
GROMMET
$3.61¢1 805
#11
COLLAR
$6.22¢3 111
#12
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
#13
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#14
BRACKET, TANK FITTING
$45.23¢22 615
#15
BOLT, BUTTON HEAD
$2.79¢1 397
#16
CAP ASSY
$287.60¢143 802
#17
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#18
BOLT
$5.39¢2 697
#19
FUEL PUMP COMP.
$426.33¢213 164
#20
BRACKET, FUEL PUMP
$27.00¢13 501
#21
O-RING
$26.89¢13 443
#22
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#23
PIPE 5
$14.40¢7 199
#24
Clip
$2.74¢1 368
#25
PIPE 6 | FOR U49
$13.03¢6 515
#26
Clip
$2.74¢1 368
#27
MOLE, FUEL TANK 1
$33.92¢16 963
#28
MOLE, FUEL TANK 2
$33.92¢16 963
#29
MOLD, FUEL TANK
$37.97¢18 987
#30
TANK SIDE COVER ASSY 1
$40.78¢20 390
#31
TANK SIDE COVER ASSY 2
$43.13¢21 563
#32
PIPE, FUEL 1
$71.37¢35 685
#33
COVER, TANK
$27.98¢13 990
#34
DAMPER, PLATE
$1.02¢512
#35
RIVET
$7.59¢3 795
#36
DAMPER
$5.93¢2 967
#37
Grommet
$4.31¢2 156
#38
EMBLEM
$21.98¢10 988
#39
LABEL, CAUTION
$7.22¢3 611
#39
PIPE 10 | FOR CAL
$23.87¢11 937
#40
DAMPER, PLATE 1
$16.03¢8 015
#41
DAMPER, PLATE 2
$10.86¢5 428
#42
CANISTER ASSY | FOR CAL
$271.87¢135 936
#43
BRACKET, CANISTOR | FOR CAL
$49.47¢24 737
#44
GROMMET
$6.83¢3 415
#45
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#46
BOLT, BUTTON HEAD
$6.82¢3 410
#47
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#48
Clamp
$2.16¢1 081
#49
RIVET | FOR CAL
$2.27¢1 133
#50
PIPE 2 | FOR CAL
$34.19¢17 095
#51
PIPE 3 | FOR CAL
$16.33¢8 165
#52
PIPE 4 | FOR CAL
$38.49¢19 245
#54
Clip
$2.74¢1 368
#55
CLIP | FOR CALIFORNIA
$6.99¢3 496
#56
BOLT, BUTTON HEAD
$2.74¢1 368
