FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

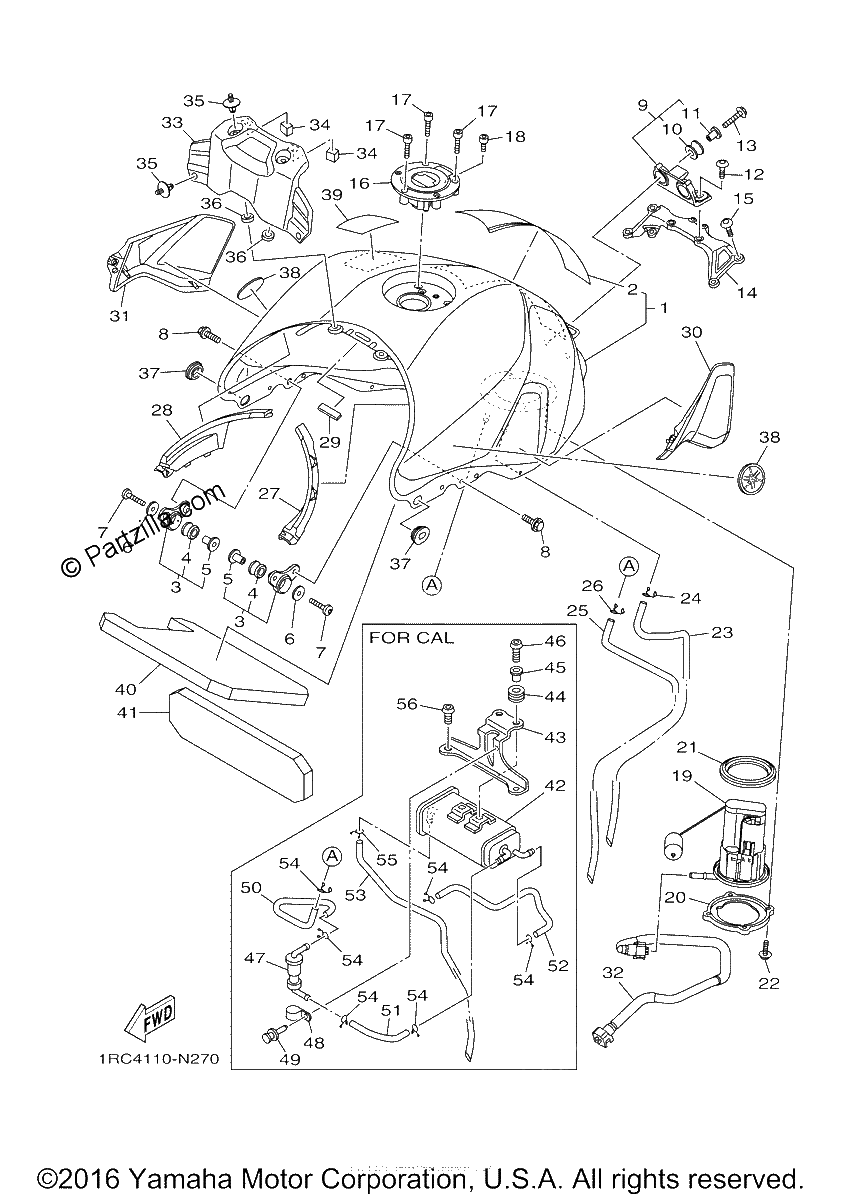

Diagrama de FUEL TANK

Repuestos

#0
1RC-Y2410-00-04
FUEL TANK COMP. | UR FOR DOM8
$998.74¢499 369
1
#0
1RC-Y2410-00-03
FUEL TANK COMP. | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$997.49¢498 744
1
#0
1RC-24244-20-00
GRAPHIC, FUEL TANK 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$69.05¢34 525
1
#1
1RC-YK241-00-P1
FUEL TANK COMP. | UR FOR DNMN
$1132.25¢566 125
1
#2
1RC-24244-30-00
GRAPHIC, FUEL TANK 1 | UR FOR DOM8
$67.71¢33 856
1
#3
23P-24104-00-00
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$60.76¢30 381
1
#4
90480-18008-00
GROMMET
$3.79¢1 894
1
#5
90387-06266-00
COLLAR
$4.68¢2 338
1
#6
90201-06072-00
WASHER, PLATE
$7.63¢3 813
1
#7
92012-06035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#8
90119-06200-00
BOLT, WITH WASHER
$7.48¢3 738
1
#9
1RC-24104-00-00
TANK BRACKET ASSY
$51.61¢25 806
1
#10
3D7-24339-00-00
GROMMET
$3.93¢1 963
1
#11
90387-06136-00
COLLAR
$6.76¢3 381
1
#12
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#13
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#14
1RC-2413Y-00-00
BRACKET, TANK FITTING
$49.16¢24 581
1
#15
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#16
39P-24602-10-00
CAP ASSY
$312.61¢156 306
1
#17
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#18
91312-05010-00
BOLT
$5.86¢2 931
1
#19
1RC-13907-00-00
FUEL PUMP COMP.
$463.40¢231 700
1
#20
1RC-24491-00-00
BRACKET, FUEL PUMP
$29.35¢14 675
1
#21
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#22
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#23
1RC-24315-00-00
PIPE 5
$15.65¢7 825
1
#24
90467-090A2-00
Clip
$2.97¢1 487
1
#25
1RC-24316-00-00
PIPE 6 | FOR U49
$14.16¢7 081
1
#26
90467-090A2-00
Clip
$2.97¢1 487
1
#27
1RC-2418B-01-00
MOLE, FUEL TANK 1
$36.88¢18 438
1
#28
1RC-2419B-01-00
MOLE, FUEL TANK 2
$36.88¢18 438
1
#29
3VD-24188-00-00
MOLD, FUEL TANK
$41.28¢20 638
1
#30
1RC-24106-00-00
TANK SIDE COVER ASSY 1
$44.33¢22 163
1
#31
1RC-24108-00-00
TANK SIDE COVER ASSY 2
$46.88¢23 438
1
#32
1RC-13971-00-00
PIPE, FUEL 1
$77.58¢38 788
1
#33
1RC-241B1-00-00
COVER, TANK
$30.41¢15 206
1
#34
90520-15012-00
DAMPER, PLATE
$1.11¢556
1
#35
90269-07077-00
RIVET
$8.25¢4 125
1
#36
5SL-84753-00-00
DAMPER
$6.45¢3 225
1
#37
90480-01558-00
Grommet
$4.69¢2 344
1
#38
1RC-2413B-00-00
EMBLEM
$23.89¢11 944
1
#39
4C8-2118K-00-00
LABEL, CAUTION
$7.85¢3 925
1
#39
1RC-24321-00-00
PIPE 10 | FOR CAL
$25.95¢12 975
1
#40
1RC-2414H-00-00
DAMPER, PLATE 1
$17.43¢8 713
1
#41
1RC-2414J-00-00
DAMPER, PLATE 2
$11.80¢5 900
1
#42
1RC-24170-00-00
CANISTER ASSY | FOR CAL
$295.51¢147 756
1
#43
1RC-2419F-00-00
BRACKET, CANISTOR | FOR CAL
$53.78¢26 888
1
#44
90480-13018-00
GROMMET
$7.43¢3 713
1
#45
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.76¢3 381
1
#46
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#47
2C0-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
1
#48
90464-15014-00
Clamp
$2.35¢1 175
1
#49
90269-05049-00
RIVET | FOR CAL
$2.46¢1 231
1
#50
1RC-24312-00-00
PIPE 2 | FOR CAL
$37.16¢18 581
1
#51
1RC-24313-00-00
PIPE 3 | FOR CAL
$17.75¢8 875
1
#52
1RC-24314-00-00
PIPE 4 | FOR CAL
$41.84¢20 919
1
#54
90467-090A2-00
Clip
$2.97¢1 487
1
#55
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#56
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
